In the compositing panel, you can change the settings for how 3D graphics and video get composited together. The quality of the compositing depends on the chosen compositing color space.

This does not apply when the Compositing mode is set to External. Learn more about Compositing modes

  • 3D Graphics

    • compositing effects of all 3D objects in the scene

  • Video

    • compositing effects of the main video source

  • Plane specific

    • create, move and modify

      • VS Internal compositing planes - used to place video into your scene

      • AR Reflected planes - used to cast reflections onto 3D graphics

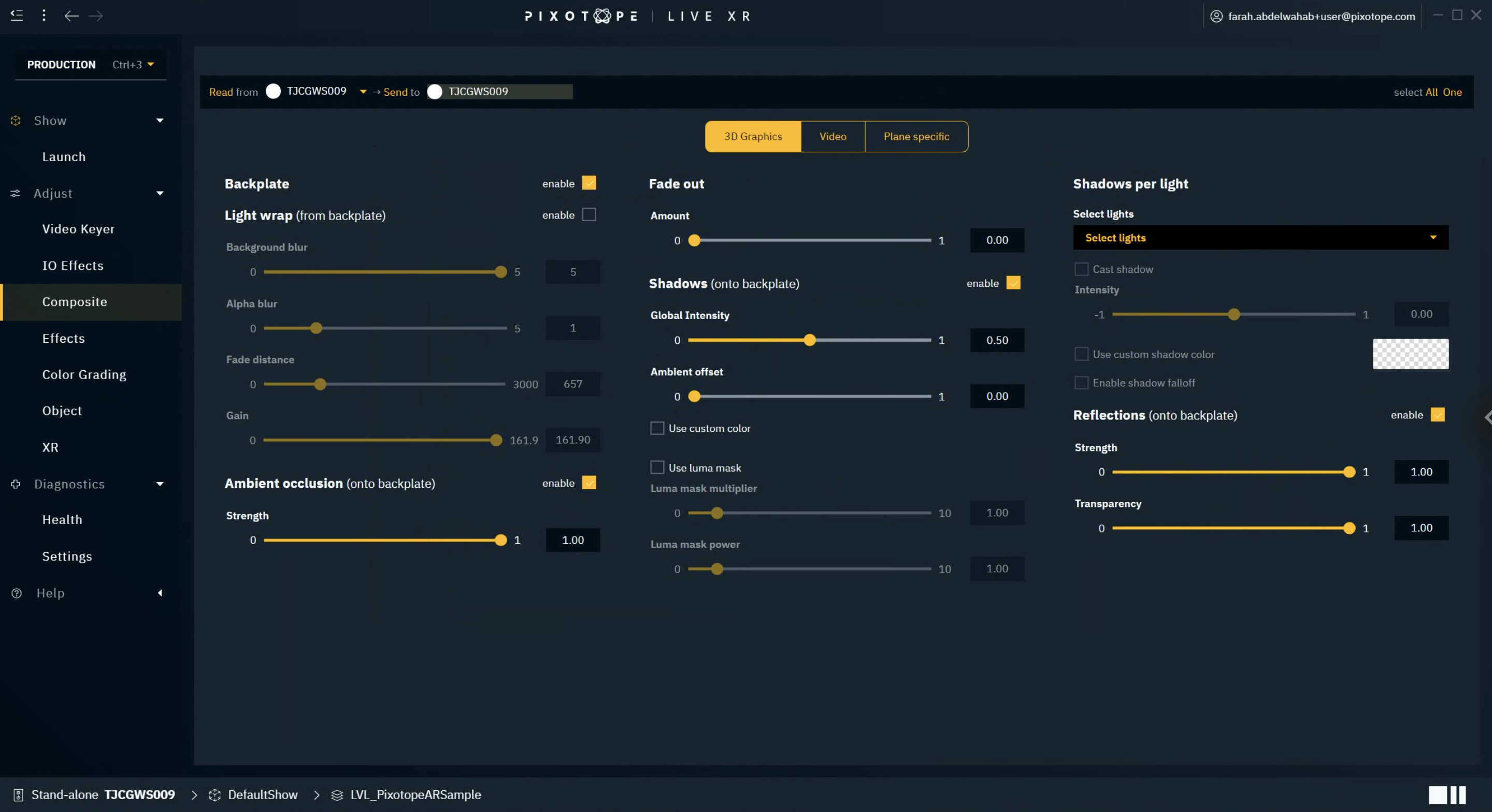

3D Graphics

Backplate

When enabled, the routed camera system is used as a backplate.

Enable backplate to do AR! Learn more about how to Set up an AR level

Light wrap (from backplate)

When enabled, you can adjust the spilling of light from the backplate onto the 3D graphics.

Background blur

Controls how much the backplate is blurred before applying the light wrap.

Alpha blur

Controls the blur of the alpha stencil for AR objects. A higher value results in more blur.

Fade distance

Controls the fading of the blur (linear).

Gain

Controls the gain of the light wrap effect. A higher value results in a stronger effect.

Ambient occlusion (onto backplate)

Ambient occlusion is basically an effect that creates a more natural ambient lighting in the scene. It calculates how objects (occlusions) are exposed to ambient lighting and creates a diffuse non-directional shading effect in sheltered and enclosed areas. When enabled, you can make live adjustments to the ambient occlusion effect onto the backplate.

Strength

Controls the strength of ambient occlusion.

Fade Out

Affects the transparency of your level’s graphics.

Can be used to overlay graphics when aligning your objects, or in production as an interesting visual effect.

Amount

Controls the fade intensity.

Shadows (onto backplate)

When enabled, you can make adjustments to the shadows cast by the 3D graphics.

Intensity

Controls the global shadow intensity.

Use colored shadows

When enabled, the inverse light color is used as a shadow color.

A custom shadow color can be set per light. See Shadows > Per light > Use custom shadow color.

Use luma mask

To improve the overlapping of virtual and real shadows, the luma channel of the backplate video is used as a mask for the shadows.

Luma mask multiplier

Controls the intensity of the luma mask effect.

Luma mask power

Controls the falloff of the luma mask effect.

Per light

Select one or more lights to apply the following settings:

Cast shadow

Enables shadow casting.

Intensity

Controls the shadow intensity.

Use custom shadow color

Overrides the shadow color. Needs the global "Use colored shadows" to be enabled.

Enable shadow falloff

Enable the shadow falloff.

Reflections (onto backplate)

When enabled, you can make adjustments to the reflections of the 3D graphics cast onto the backplate.

Strength

Controls the strength. A higher value gives a stronger/more defined reflection.

Transparency

Controls the transparency of the reflections. A higher value makes it more transparent.

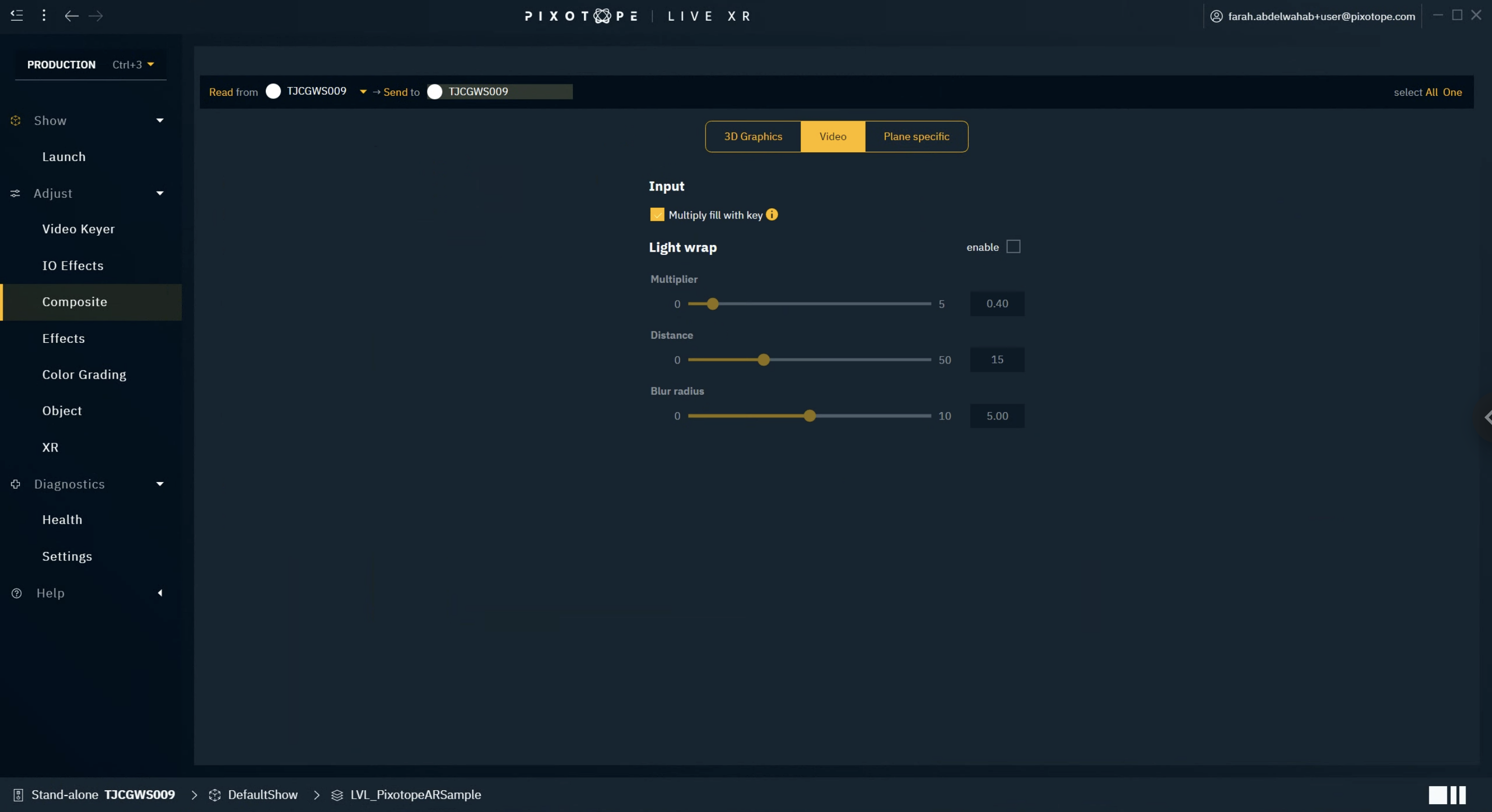

Video

Input

Multiply fill input with key

Disable when using an external keyer.

Light wrap (from 3D graphics)

Light wrapping is used to prevent a sharp edge on the alpha mask so that the talent and/or real objects blend better in the scene. Note: Correct lighting in the graphics and on the talent/object is very important.

When enabled, you can make adjustments to the light wrapping effect on the alpha mask.

Multiplier

Controls the amount of light wrapping effect applied. A higher value produces a stronger effect.

Distance

Controls the distance (in pixels) that the effect works inwards on the alpha mask.

Blur radius

Controls the amount of blur added to the effect. A higher value results in more blur.

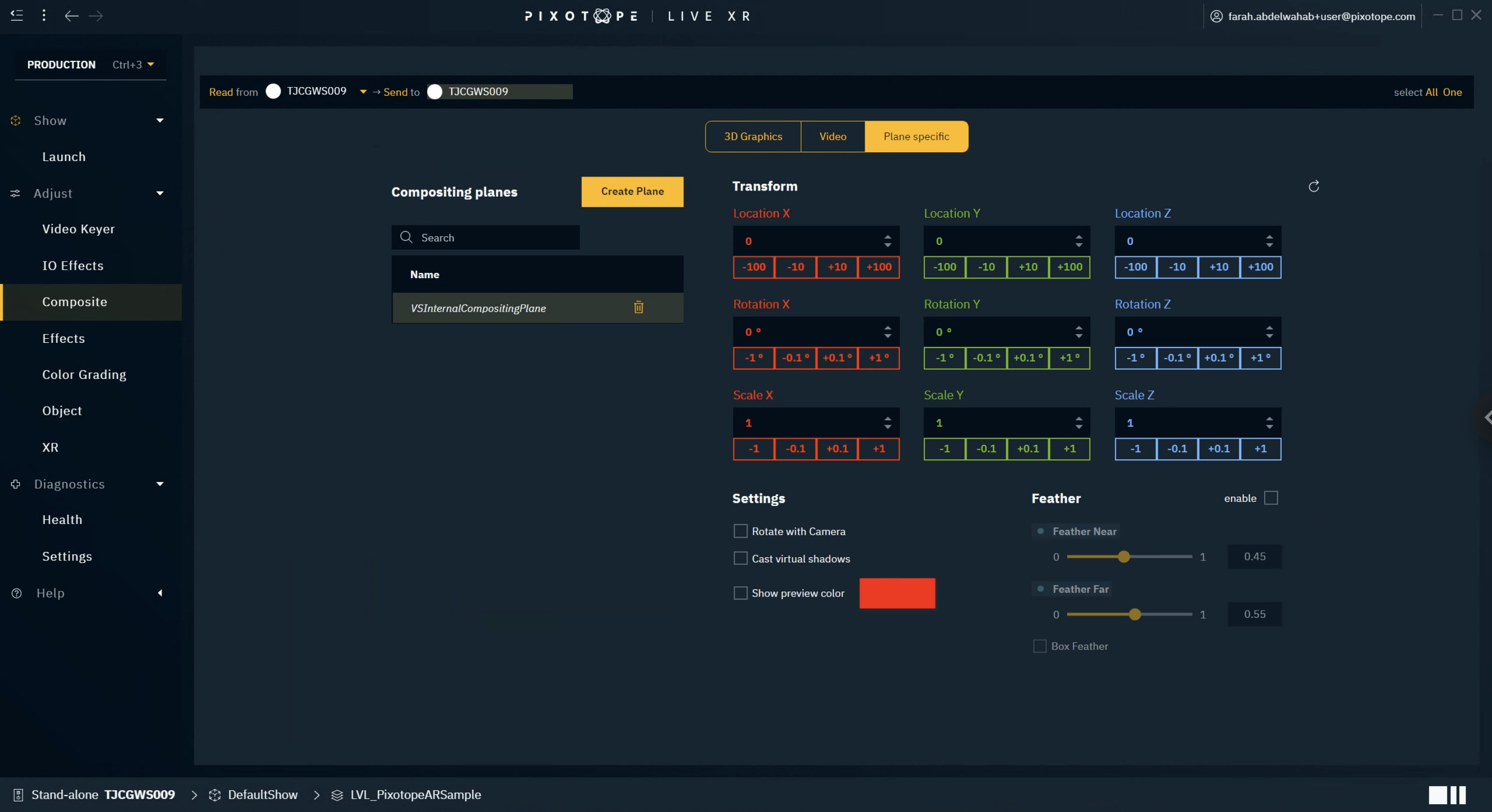

Plane specific

List of compositing planes

This table shows a list of all internal compositing and universal compositing planes in the level.

Transform

Location

Move the selected plane on the corresponding X-, Y- or Z-axis by the desired increment.

Rotation

Rotate the selected plane on the corresponding X-, Y- or Z-axis by the desired increment.

Scale

Adjust the scale of the selected plane on the corresponding X-, Y- or Z-axis by the desired increment

Settings

Rotate with Camera

Locks the rotation onto the tracked camera in a way that forces the plane to always face the camera.

Cast virtual shadows

Adds virtual shadow casting of the plane.

Show preview color

Setting this allows you to show a preview color for debugging.

Feather

Applies a feather on the internal compositing planes. This is done in world space.

Near

The near limit of the feather effect.

Far

The far limit of the feather effect.

Width Multiplier

The aspect ratio of the feather effect.

Box feather

Enable box feather.
