Set up a virtual camera move

Check out the following examples:

• LVL_PixotopeVSSample level in the PixotopeCalibration project included in the installer

• Pixotope example projects, which can be downloaded from the Pixotope cloud → login.pixotope.com

For functionality specific to the Unreal Editor and some in-depth knowledge, check out https://docs.unrealengine.com/en-us/Engine/Editor.

Video tutorial - Using virtual cameras

Example setup

• See the level Blueprint of the level LVL_PixotopeVSSample of the project PixotopeCalibration

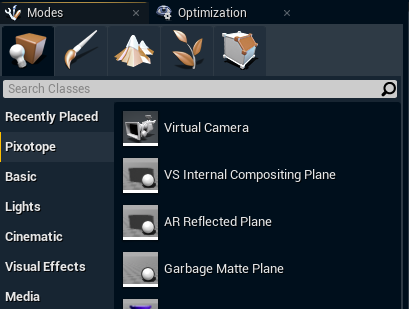

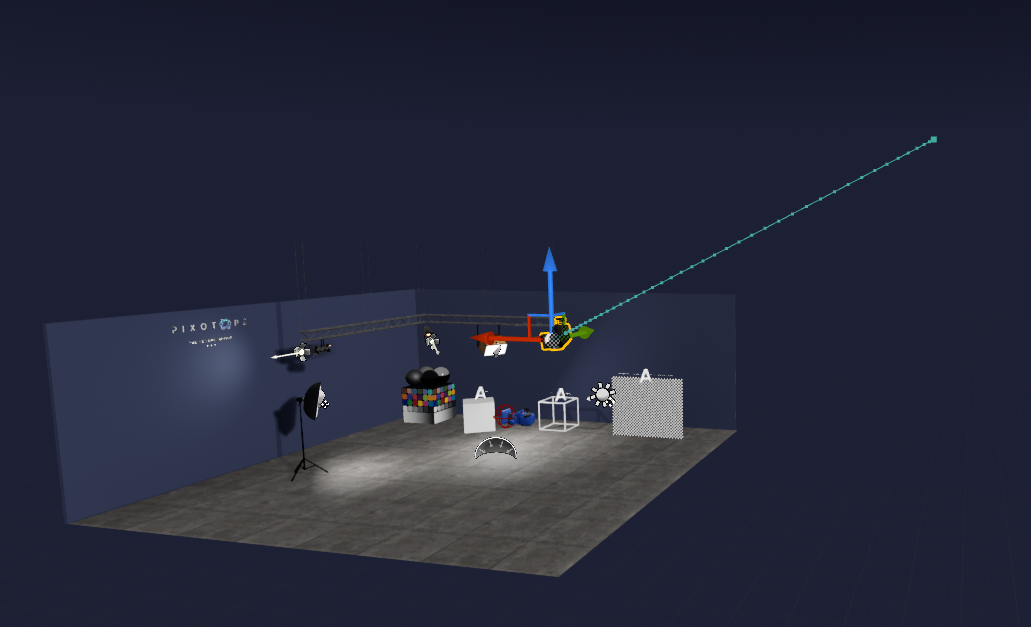

Create a virtual camera

Create a virtual camera in your level:

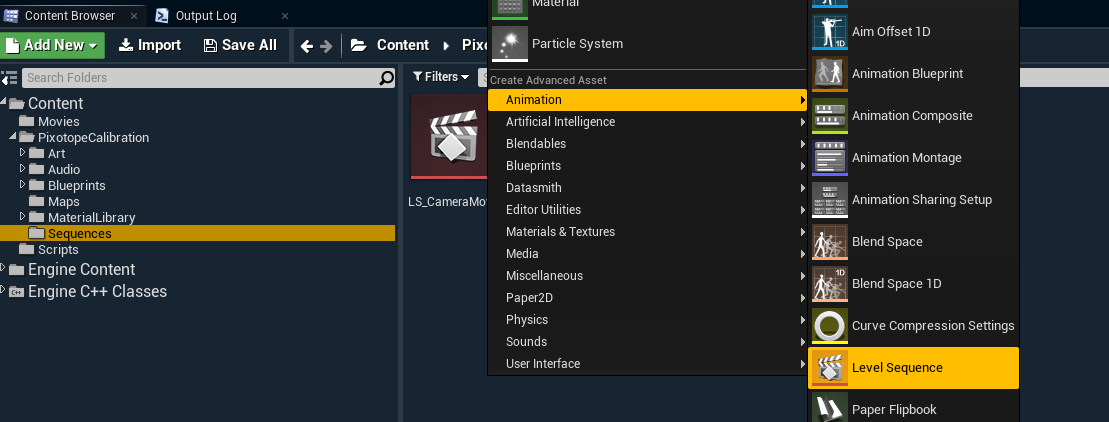

Create level sequence

Create a new level sequence:

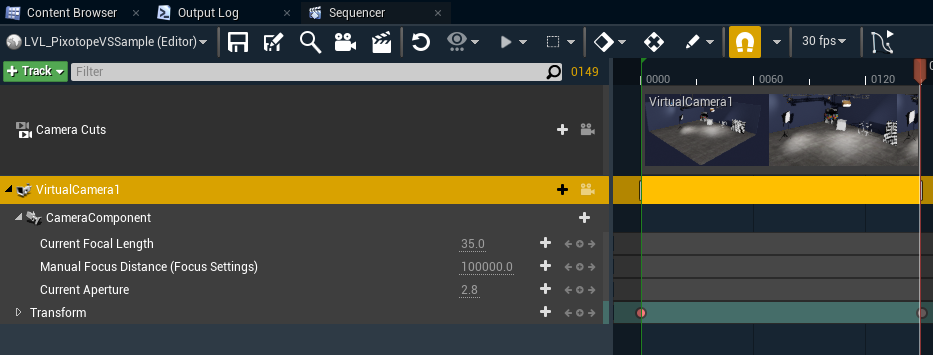

Animate virtual camera

Animate the virtual camera in the sequence:

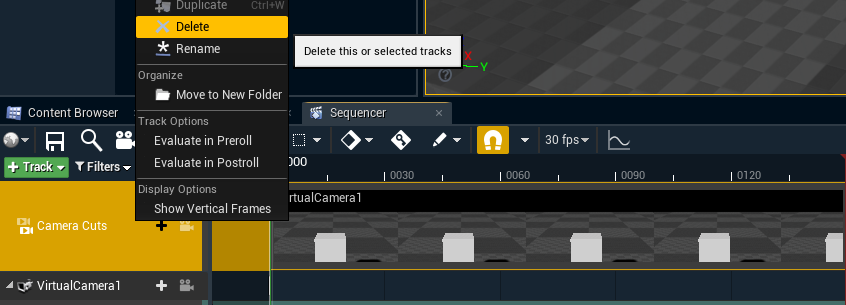

Delete the Camera Cuts track

Remove the cut track, as we will be blending, not cutting to our virtual camera:

Create Blueprint logic

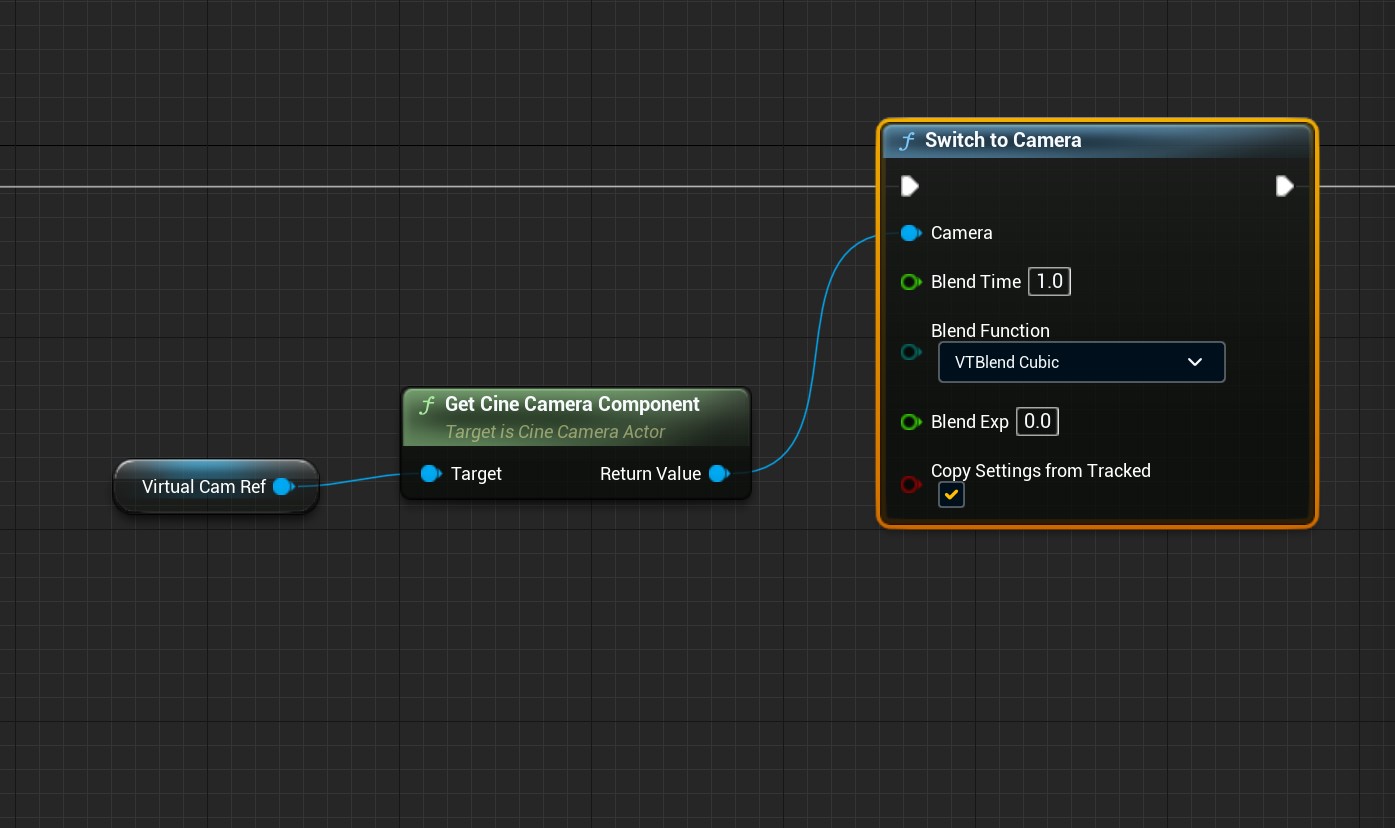

Create Blueprint logic for triggering the sequence:

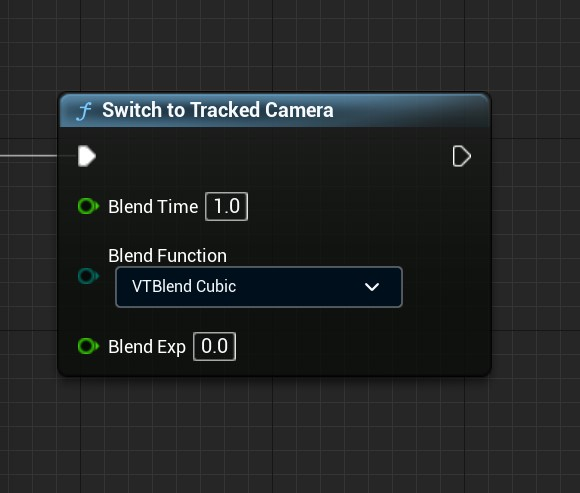

Create Blueprint logic for going back to the tracked camera:

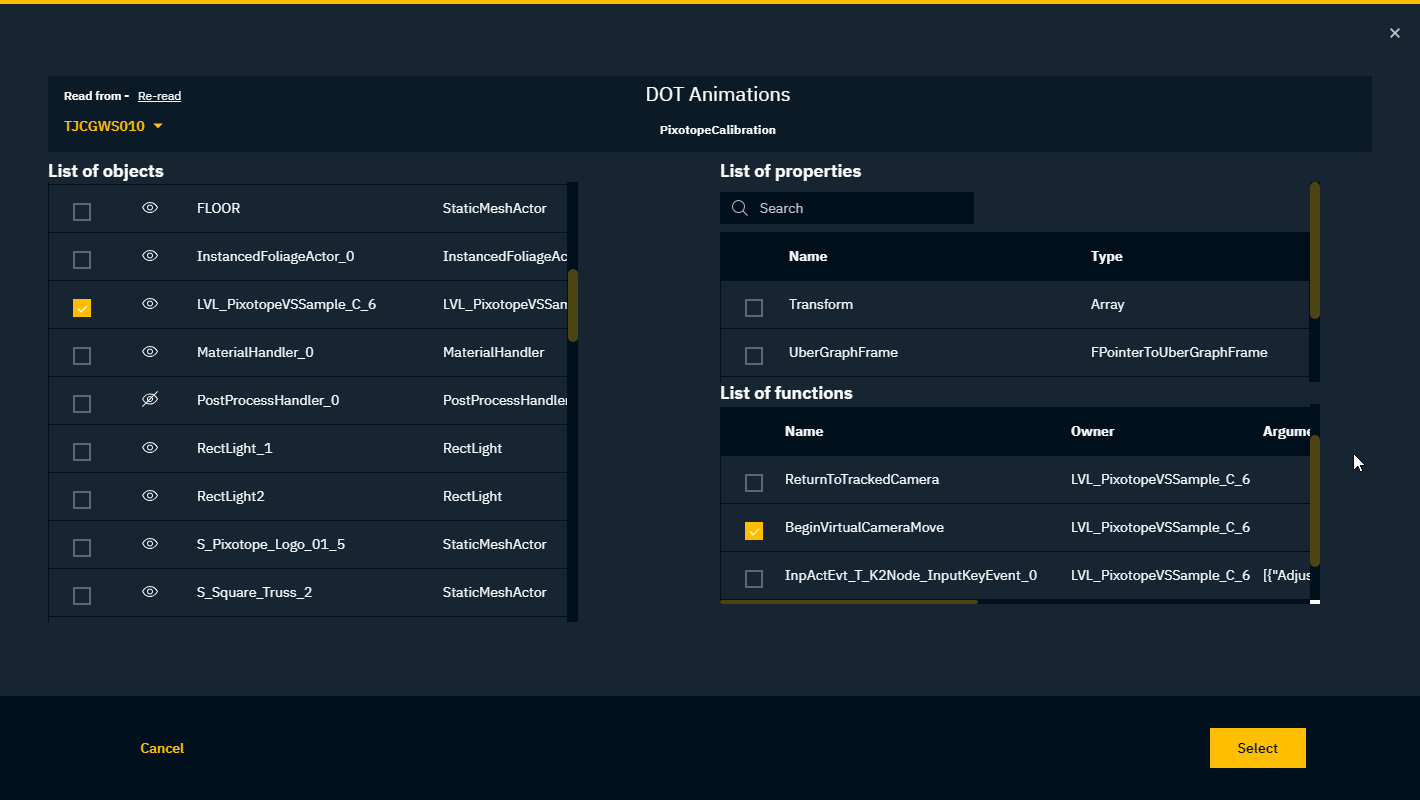

Create triggers in the control panel

Create triggers in the control panel and link them to the 2 Blueprint functions to trigger the animation between the virtual and the tracked camera from the control panel:

Check out the following examples:

• LVL_PixotopeVSSample level in the PixotopeCalibration project included in the installer

• Pixotope example projects, which can be downloaded from the Pixotope cloud → login.pixotope.com

For functionality specific to the Unreal Editor and some in-depth knowledge, check out https://docs.unrealengine.com/en-us/Engine/Editor.
