Advanced usage of the control panel

With the Store and the API Log tabs you can control every aspect of the Pixotope universe.

With great power comes great responsibility … and many ways to get unwanted results.

Make a backup of your show file before changing show file parameters through the control panel!

Control properties of current show

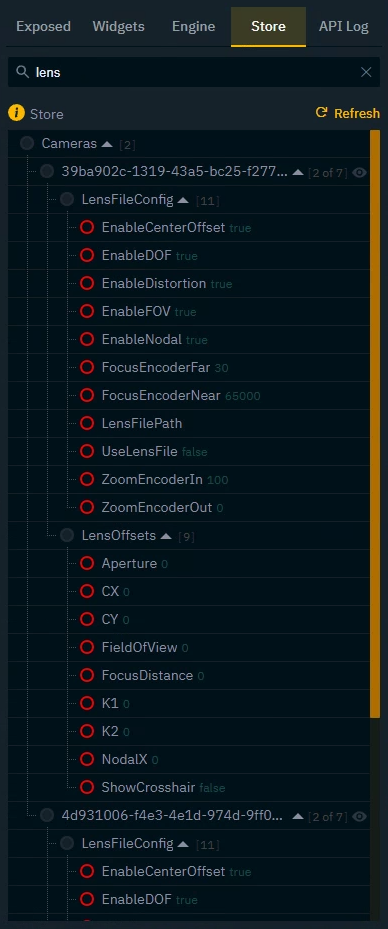

Using the Store tab you can control all properties of the current show file.

  1. Go to the Store tab

  2. Search for the parameter you would like to read/control

  3. Click and drag the red circle onto the canvas

The properties are alphabetically sorted and grouped based on the State of the Store service.

Learn more about the Store API - State and its allowed values and property types

Replicate specific Pixotope functionality

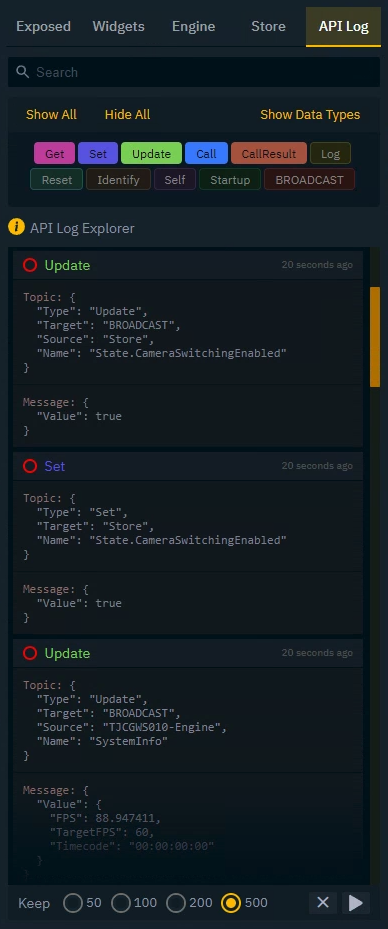

The API Log tab lists all occurring API messages of the Pixotope network. You can

  • listen to and read values from them

  • (re-)trigger them

Start listening

  1. Go to the API Log tab

  2. If not already done, click the Play button in the bottom right corner to start logging messages

  3. Use the x button to clear the logs

    • Use the Keep options to set the maximum amount of messages to keep.

Find the action to replicate

  1. Trigger an action in Director which you would like to replicate or get data from

  2. Click the Pause button in the bottom right corner to stop listening to more messages

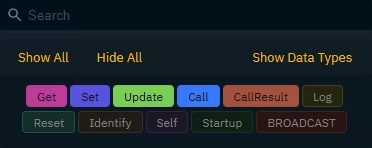

  3. Find the corresponding API message using the message type filters or the search field

In a Pixotope network there is continuous message traffic, which might make it harder to find the correct message. Filtering on the correct message type might help.

Double clicking a message in the API Log copies it to the clipboard. Depending on which one you double click, it copies either only the Topic, the Message or both.

Main message types



Used to


Get a state or non-state value from any service

Get value


Request a change of a state or non-state value of any service

Set value



  • on a Get request

  • when state or non-state variables change

Get value


Service specific black box RPC function call

Trigger action


CallResult - Response to a Call

Get value

Learn more about their details and other message types in Pixotope API - Message Scheme

Add a widget using this action

  1. Click and drag the red circle onto the canvas

  2. Select a widget based on if you are getting or setting a value or triggering an action

Suggested widgets based on message type


Default action

Main widgets

Get, Update, Call Result

Read (Get value)

  • Multiline text

  • Text

  • Number

Set, Call

Send (Set value/Trigger action)

  • Trigger button

  • Toggle (use ON/OFF click trigger)

  • Tab (use Tab click trigger)

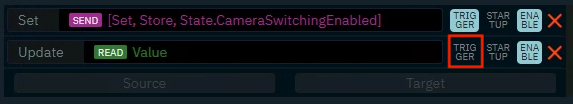

You can change to Send or Read (default action) using the Trigger toggle next to the action.

Update a Send action

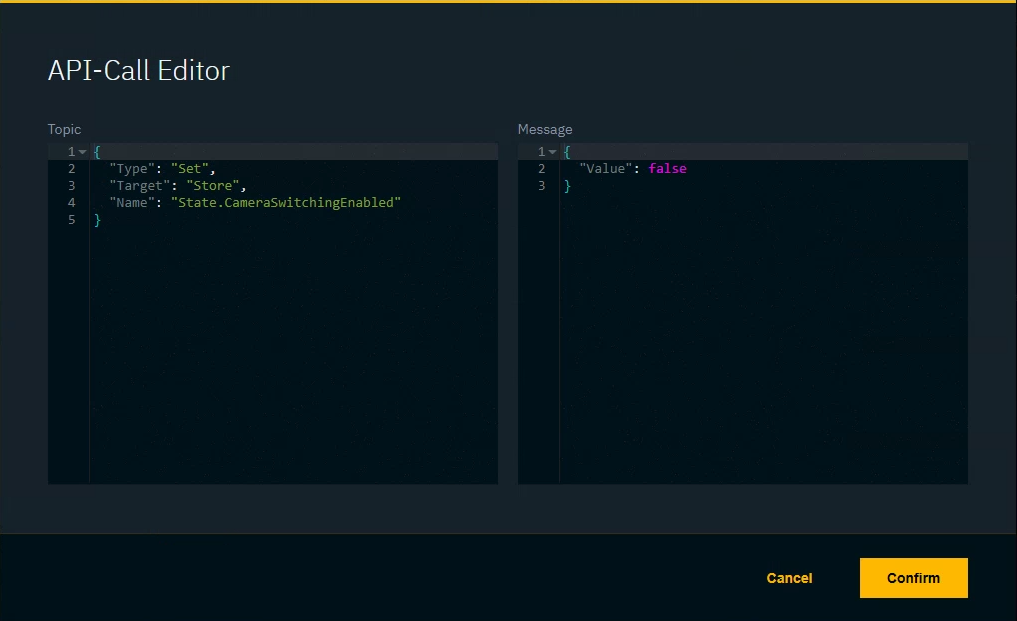

  1. Click on the action in the action list to open the API-Call Editor

  2. Change the Topic and Message to fit your needs

    • The messages are in a JSON format

Learn more about the Pixotope API - Message Scheme

Current limitation:

API messages can only contain fixed values. Parsing source values of a widget or other dynamic values is not yet possible.

Update a Read action

Message results come in a JSON format. To only get a specific property use the dot notation

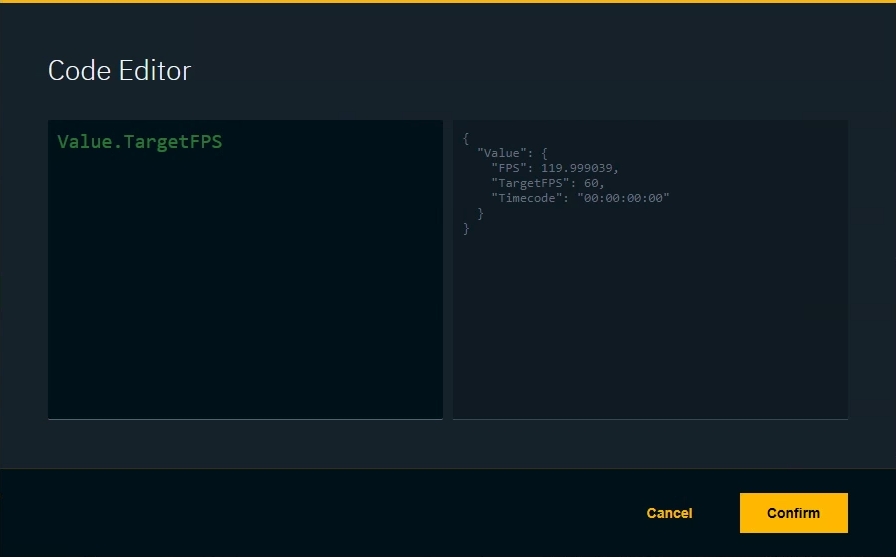

  1. Click on the action in the action list to open the Code Editor

  2. Change the query value on the left to retrieve a specific value

Listen to variable changes within a blueprint

By default, blueprint changes are not broadcasted to the network. If you need to variable changes within a blueprint to broadcast Update messages, do the following:

  1. Add a

    • Get Update Broadcaster node

    • Broadcast Property Changed Update node

    • Self node

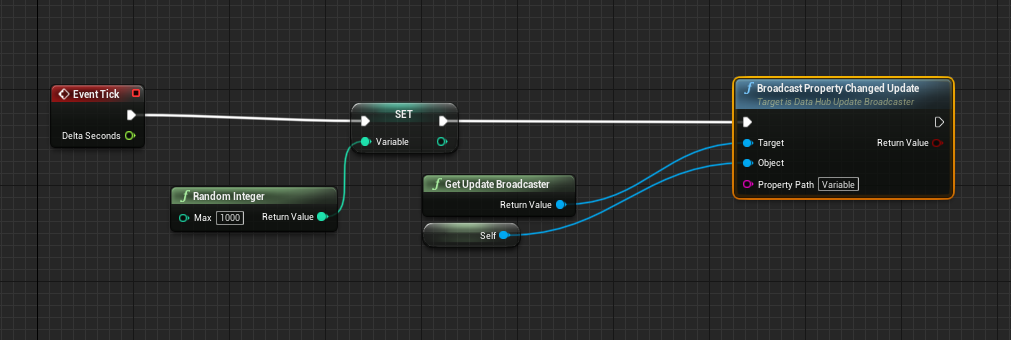

  2. Connect them as shown below

  3. Enter the variable name you want to get updates from in the Property path field on the Broadcast Property Changed Update node
