Views - START, SETUP and PRODUCTION

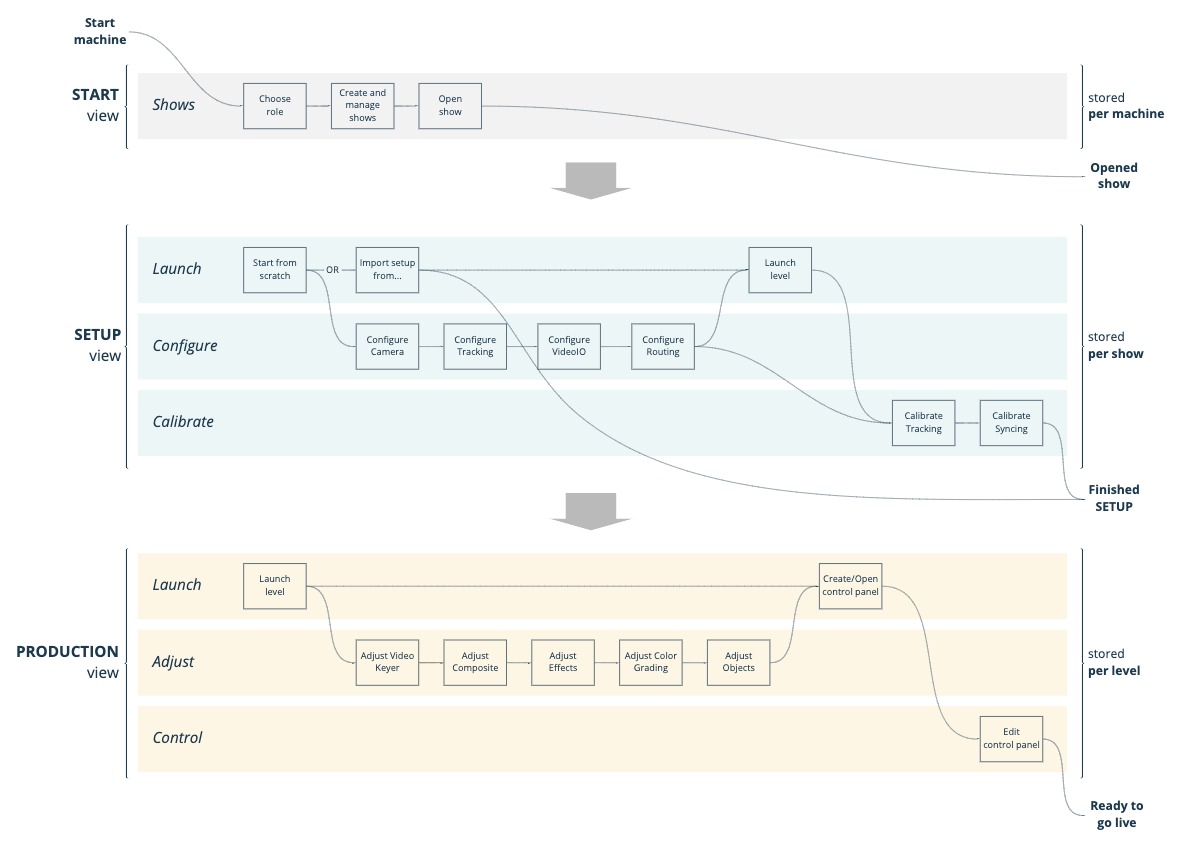

Pixotope Director is designed with a virtual production workflow in mind. It is built around the main steps, which are shown in the interface in 3 views. These can be switched in the left side menu:

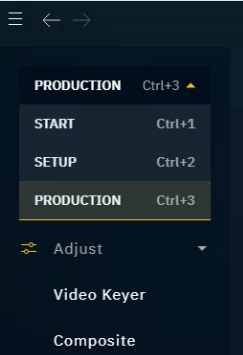

• using the dropdown

• using Ctrl+1, Ctrl+2, Ctrl+3

or can be cycled through using Ctrl+Tab (Shift+Ctrl+Tab).

START view

• Create, open and manage shows

• Change machine role and other machine specific settings

Learn more about Starting Director

SETUP view

• Change project link and other show settings

• Configure and calibrate your camera systems, video inputs and outputs, and object tracker groups

• Launch levels and control panels

Learn more about Setting up a show

PRODUCTION view

• Launch levels and control panels

• Adjust the video keyer, composite, effects, color grading and/or every single object in your level

• Control your running levels using custom control panels

Learn more about Making adjustments

The Help section is available in all views.

Learn more about What is stored where?

Migrating from 1.x

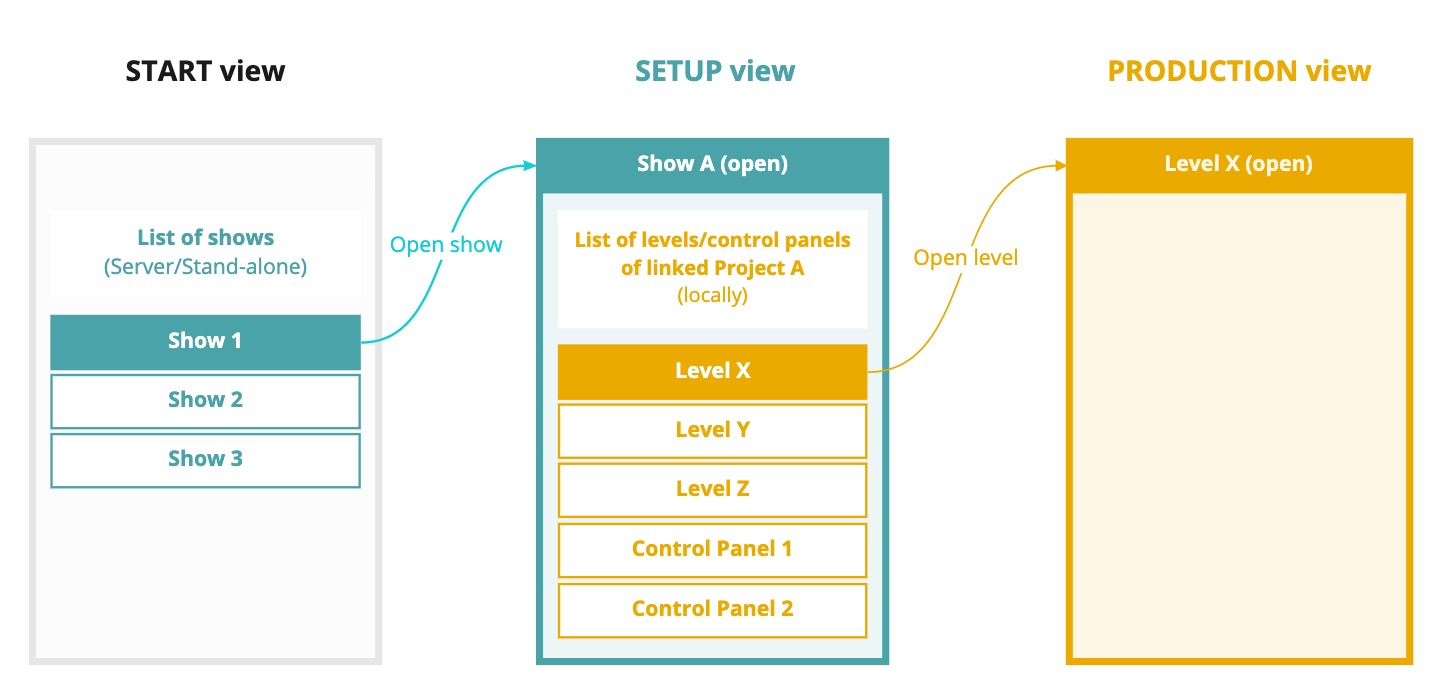

With the introduction of the START view, the SETUP and PRODUCTION views become dedicated to your open show:

• The Shows panel in START view shows a list of your local shows

• The Launch panel in SETUP and PRODUCTION only shows levels and control panels of the open show

• The SETUP view needs an open show. Changes made in this view are stored in the open show

• The PRODUCTION view needs a running level. Changes made in this view are stored in the linked project
