Tracking plotter

The Tracking plotter allows you to

  • inspect

  • export

incoming tracking data.


How to use the Tracking plotter

Preparations

  1. Configure camera tracking

  2. Configure routing

  3. Make sure the camera system who’s tracking data you want to inspect has

    • the correct tracking protocol selected

    • and the Status field shows incoming data

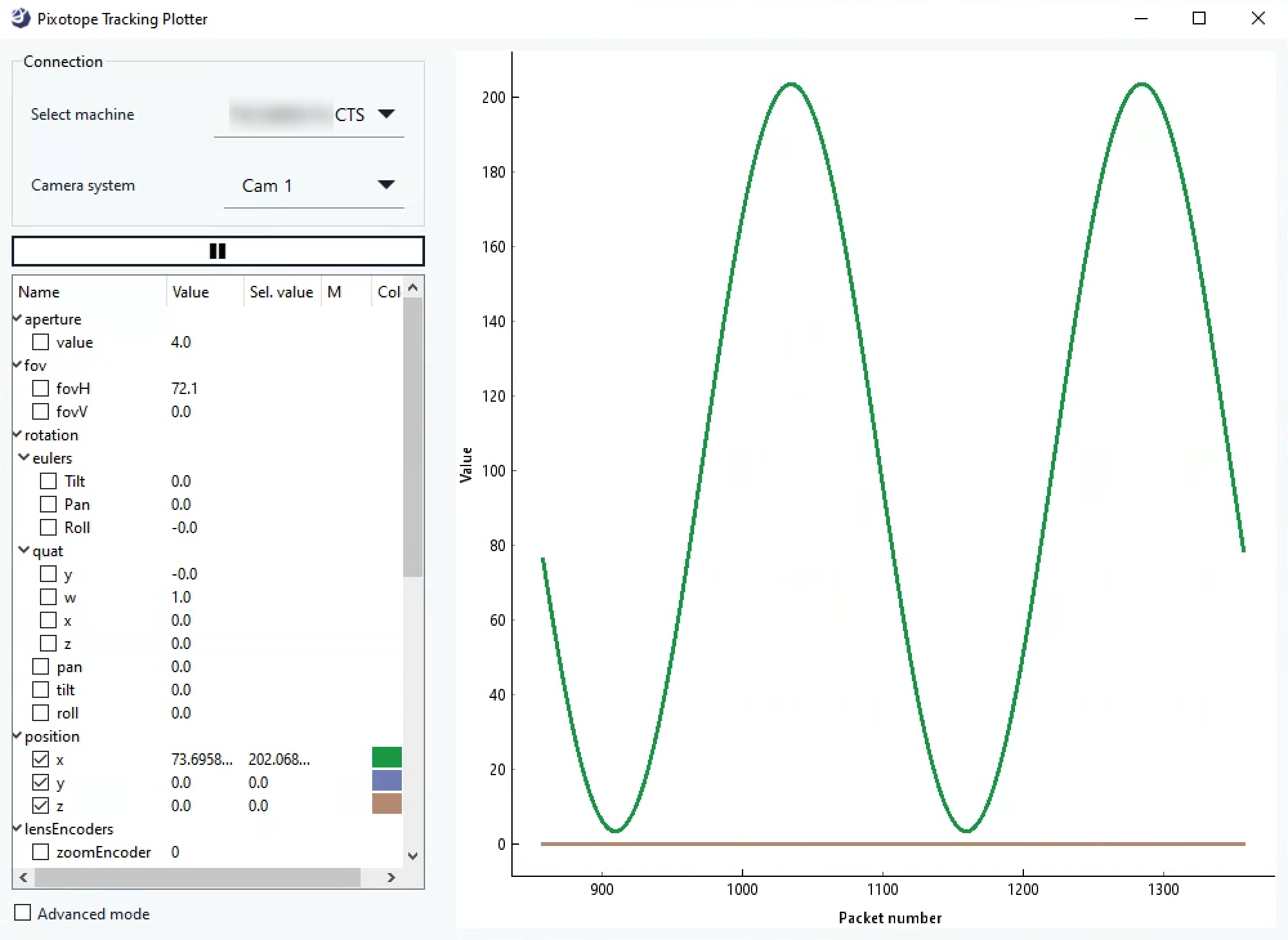

Open the Tracking plotter

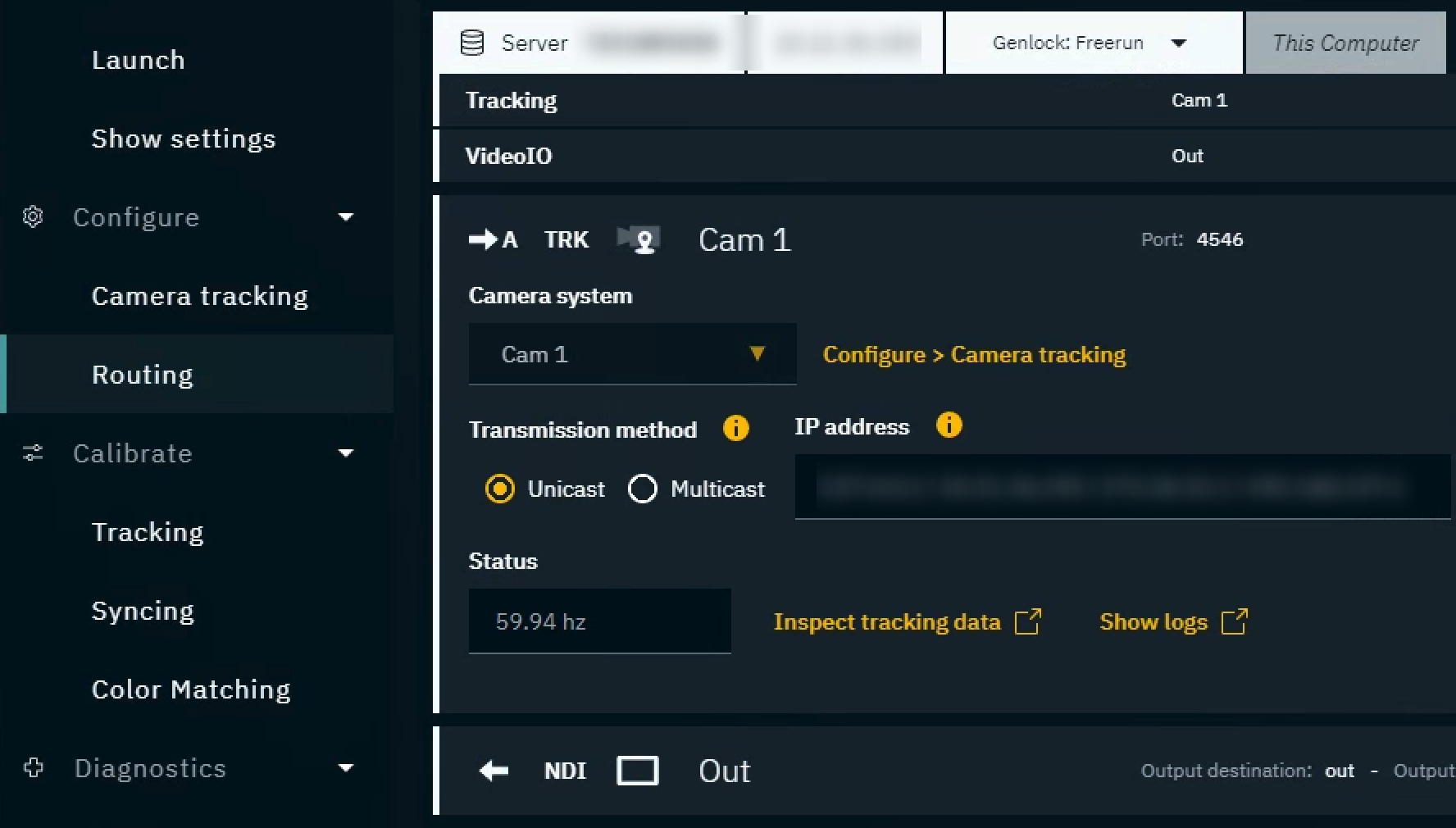

  1. Click on "Inspect tracking data" in Configure > Routing

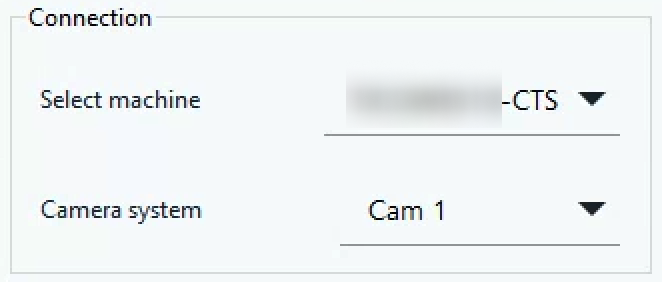

  2. Select the machine and the camera system for which you want to inspect the tracking data



  3. Select the properties you want to display

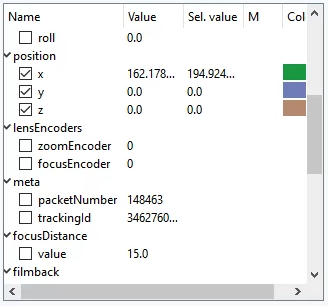

    Screenshot 2022-09-01 at 16.11.24.png


  4. Use the Pause button to pause or restart updating the tracking data

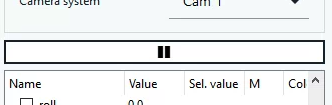

    Screenshot 2022-09-01 at 16.11.54.png


Advanced mode

  • Shows all parameters, also the previously hidden ones

  • Allows for saving settings to be used on next startup

  • Allows for viewport manipulation

  • Allows for exporting data

    Screenshot 2022-09-01 at 16.26.15.png

Show difference data

  1. Right click the parameter which you want to see its difference data of

  2. Click “Setup filters”

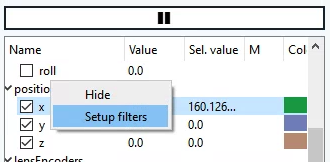

    Screenshot 2022-09-01 at 16.13.54.png


  3. Select the Adjacent difference filter and click “Add filter”

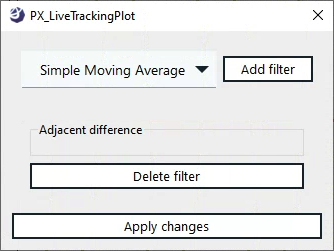

    Screenshot 2022-09-01 at 16.18.10.png


  4. Click “Apply changes"

    Screenshot 2022-09-01 at 16.15.24.png
    A parameter which has a filter applied is indicated by a small *

Filters can be combined. For example is the Adjacent difference filter sometimes combined with the Simple Moving Average filter.

Export tracking data for debugging

  1. Enable Advanced mode

  2. Right click in the viewport and click “Export…”

  3. Choose the data and format you like and click “Export”
