Adjusting levels - where it reads from and sends to
Pixotope provides an easy way to adjust the levels directly through the Director. Here you will learn:
where adjustments are applied
how adjustments are stored
Read from - Send to header
All adjustment panels* and control panels have the same Read from - Send to header where you define which machine you are reading the values from, and which machine(s) you are sending the changed values to:
![](../../__attachments/3757441082/Screenshot%202023-10-02%20at%2016.02.58.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
Select one machine to read from using the machine dropdown on the left
Select one or more machines to send to by toggling them on
Select machines using groups/render groups
Learn more about Render groups - AR, VS, AR+VS, XR
The machine you read from (marked with a circle) can not be toggled off.
Each Director in a multi-machine configuration can have different machines toggled on/off in the Read from - Send to header. So be sure to check which machines you send to before making changes.

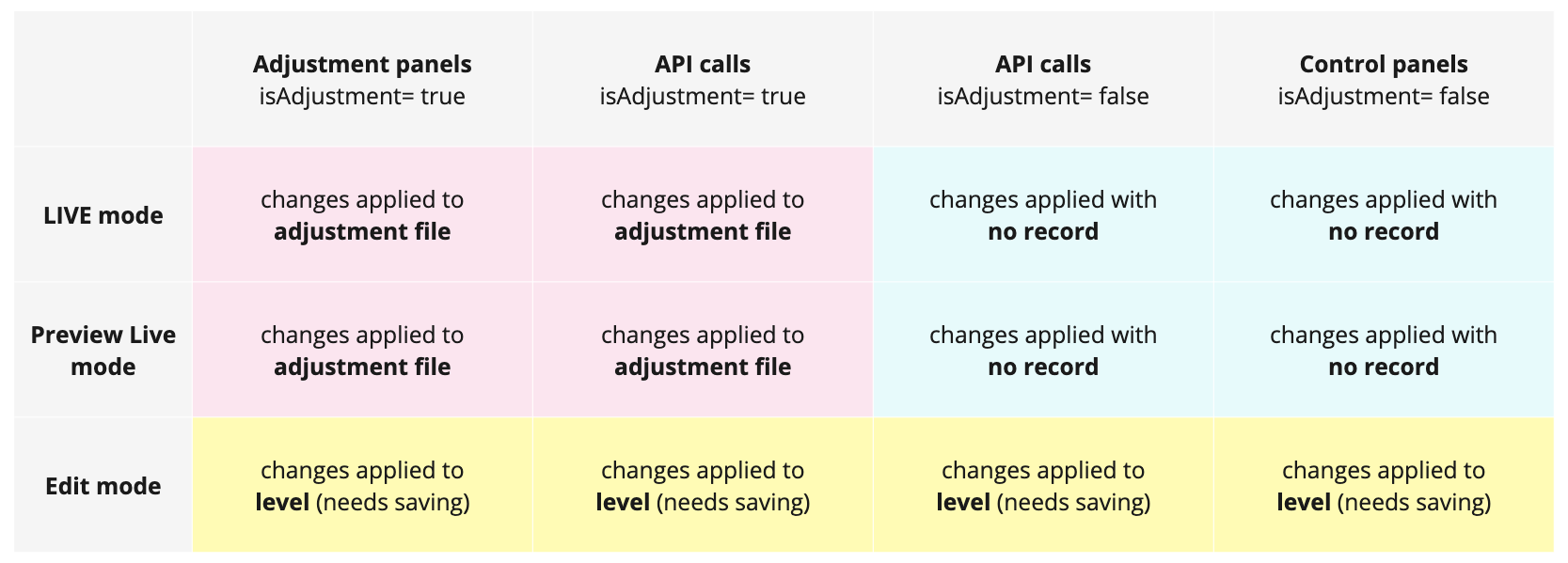

How adjustments work
All value changes made from the adjustment panels* or control panels:
are sent to all machines selected in the Read from - Send to header
directly affect the running level of the selected machines
![](../../__attachments/3757441082/image-20231011-070709.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
LIVE mode or Preview Live mode
If the level is running in LIVE mode or in Preview Live mode
Adjustments are stored locally on the machine within the project folder (
[Project folder]/Saved/Adjustments/[Levelname].adj
)Adjustments are automatically "added on top" every time a level with adjustments is launched in LIVE or in Preview Live mode
Transfer or backup of adjustments
The Saved
folder is not being synced using the Asset Hub. We therefore suggest to bake the adjustments into the actual level files:
Launch the level in the Editor on the machine it was running on

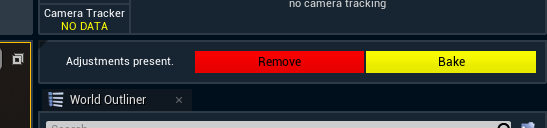

Click "Bake", located in the panel in the top right-hand corner
Save the level
![](../../__attachments/3757441082/image-20210531-074833.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
Learn more about the the synced folders in Pixotope Asset Hub
Edit mode
If the level is open in the Editor in Edit mode
Changes are made directly to the level
These changes need to be saved before closing the level to avoid losing them
These saved changes define new default values
Level streaming
When using adjustments with level streaming
All adjustments are attached to persistent level, even those done to a streaming level
If you open the streamed in level separately
it will not have any adjustments
any adjustments made to your streamed in level (when it is opened separately), will not be applied when streamed into your main level
Engine API calls
By default Engine API calls are not saved as adjustments.
If the change should be saved as an adjustment, pass the IsAdjustment
parameter set to true
along with the change.
* except for the Video Keyer and IO Effects panels
