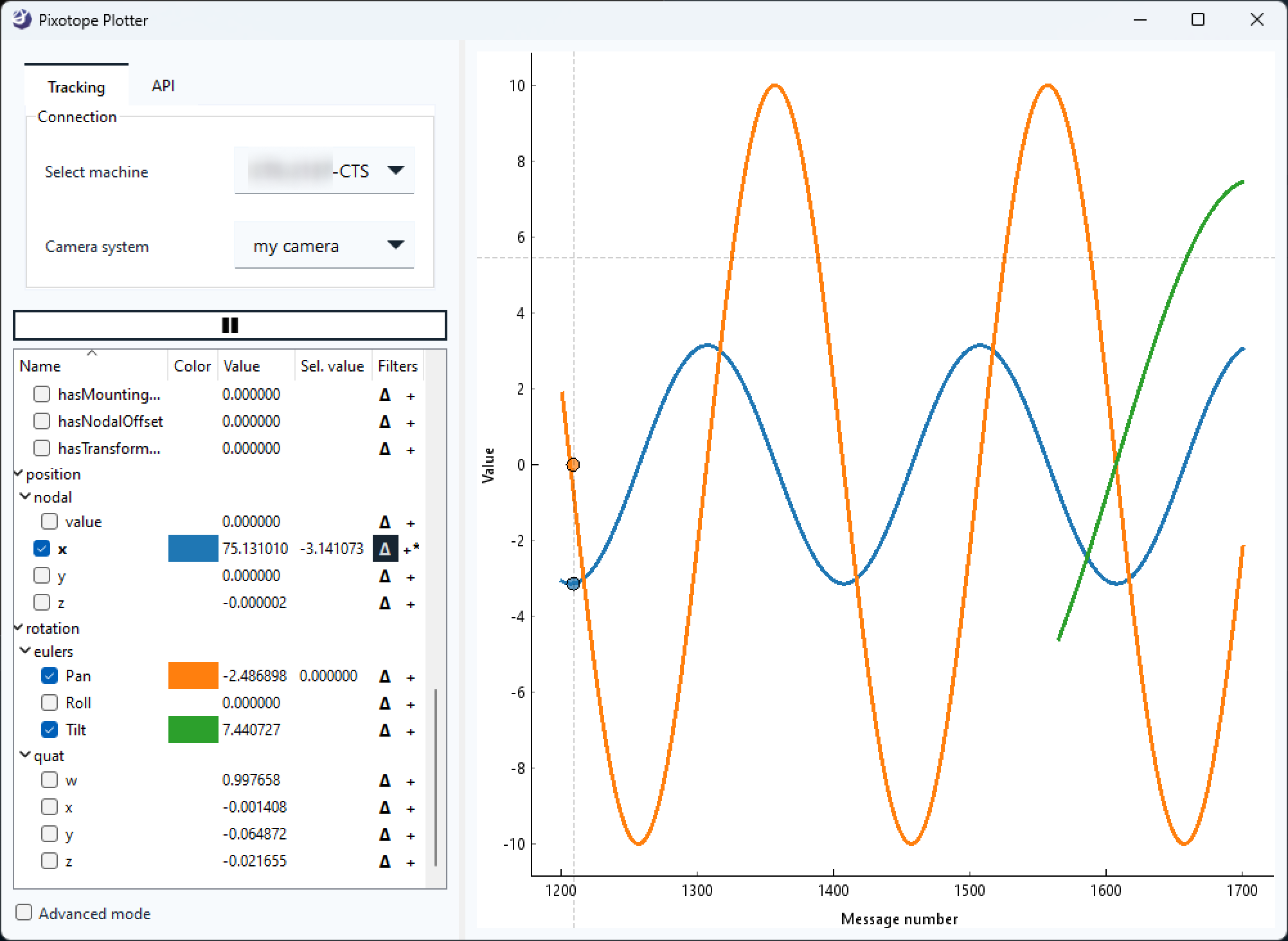

Pixotope Plotter

The Pixotope Plotter allows you to inspect and export

  • incoming tracking data

  • API values


Prepare

  1. Configure camera tracking

  2. Configure routing

  3. Make sure the camera system who’s tracking data you want to inspect has

    • the correct tracking protocol selected

    • and the Status field shows incoming data


Open the plotter

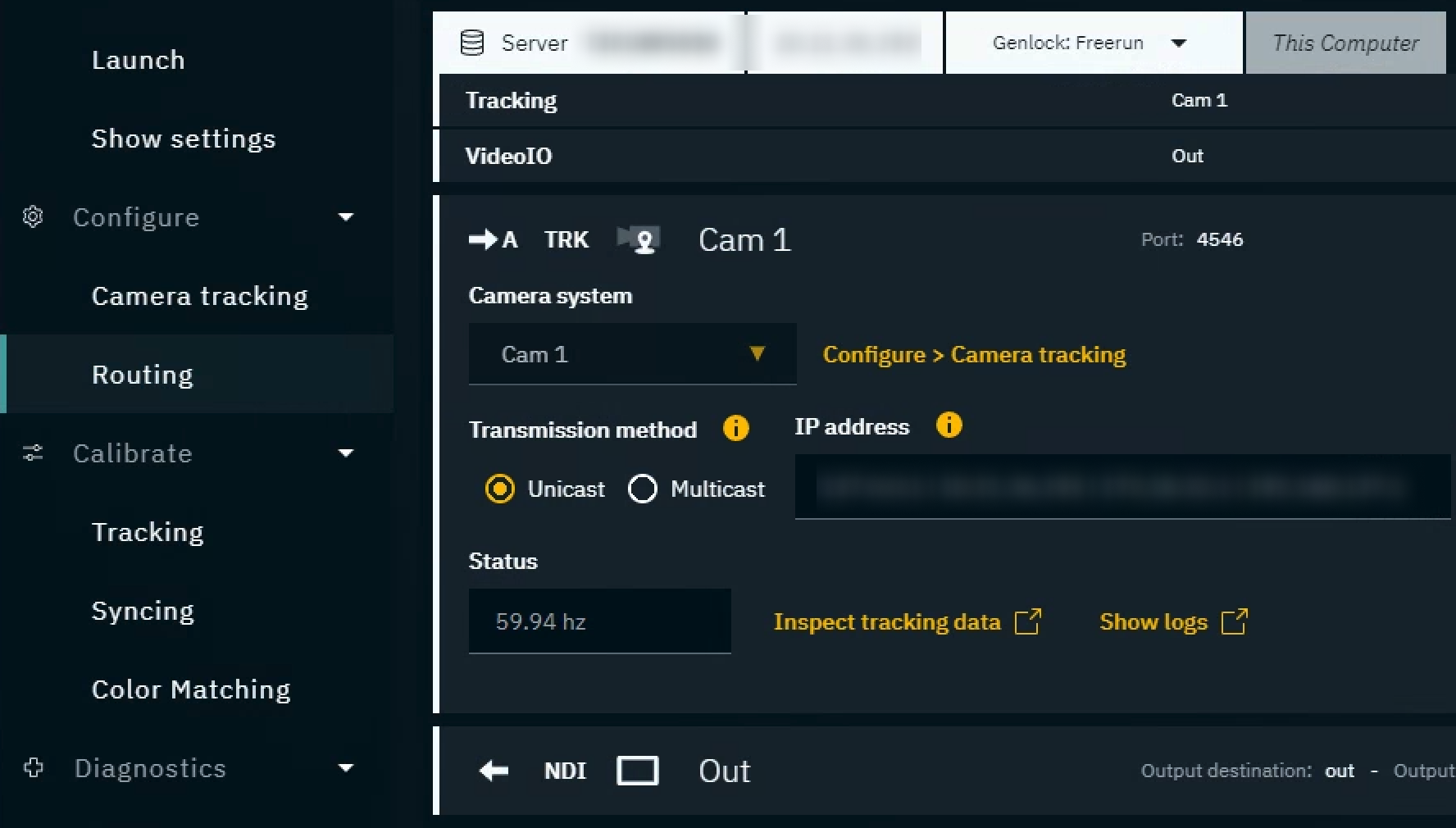

  1. Click on "Inspect tracking data" in Configure > Routing

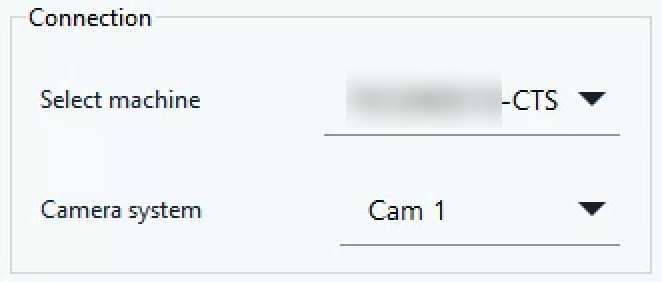

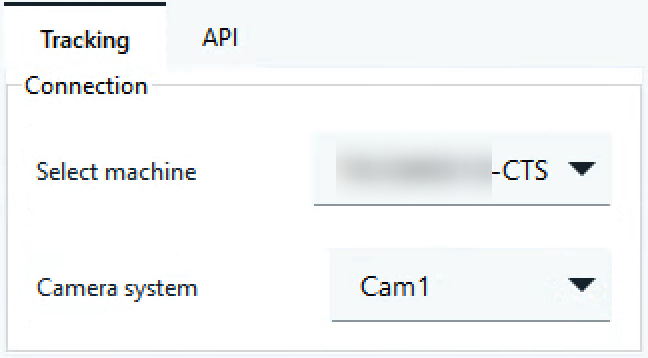

  2. Pixotope Plotter is opened and the machine and camera system are selected



Alternatively you can also launch the executable directly by double clicking
Run-PX_LiveTrackingPlot.exe in [Installation folder]\Services\Tracking

Select data source

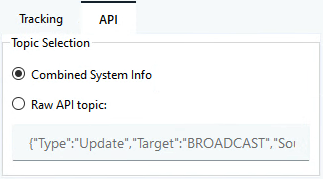

  1. Choose the data source

Source

Properties

Tracking

All properties available through the chosen camera.


API

Properties within messages broadcasted via the API

  • Combined System Info message

    • A message which combines system info reported from different Pixotope services including FPS from the Engine

  • Any other API message

Screenshot 2023-10-03 at 10.59.02.png

Learn more about the Pixotope API - Message Schema

Select properties

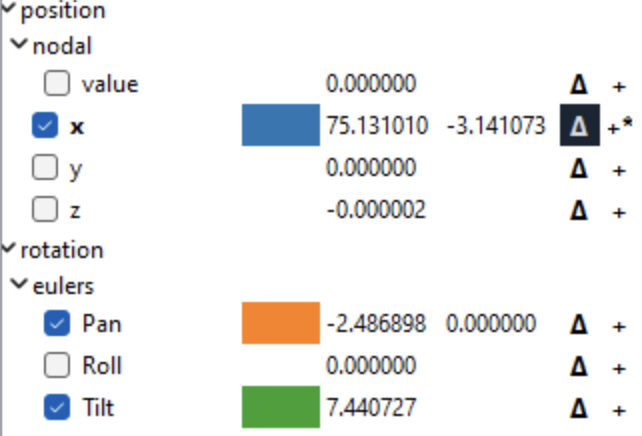

  1. Select the properties you want to display

    Screenshot 2023-10-03 at 10.15.03.png

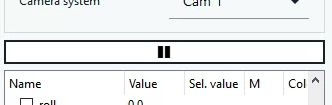

  2. Use the Pause button to pause or restart updating data

    Screenshot 2022-09-01 at 16.11.54.png


Show difference data

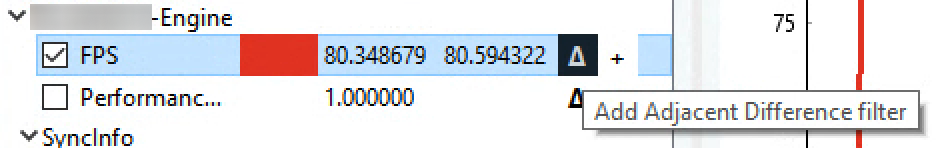

  1. Click the Delta icon next to the parameter which you want to add the Adjacent Difference filter to


Add more filters

  1. Click the + icon next to the parameter which you want to add more filters to

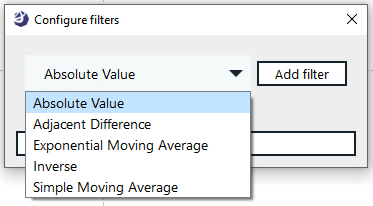

  1. Select a filter and click “Add filter”

    Screenshot 2023-10-03 at 10.23.01.png


  2. Click “Apply changes"

    • A parameter which has filters applied is indicated by a small *


Filters can be combined. For example is the Adjacent difference filter sometimes combined with the Simple Moving Average filter.

Advanced mode

The advanced mode

  • shows all parameters, also the previously hidden ones

  • allows for saving settings to be used on next startup

  • allows for viewport manipulation

  • allows for exporting data

  1. Click "Advanced mode" in the bottom left corner

Screenshot 2023-10-03 at 10.34.38.png

Export plotted data for debugging

  1. Enable Advanced mode

  2. Right click in the viewport and click “Export…”

    Screenshot 2022-09-01 at 16.26.15.png


  3. Choose the data and format you like and click “Export”
