Configure external compositing

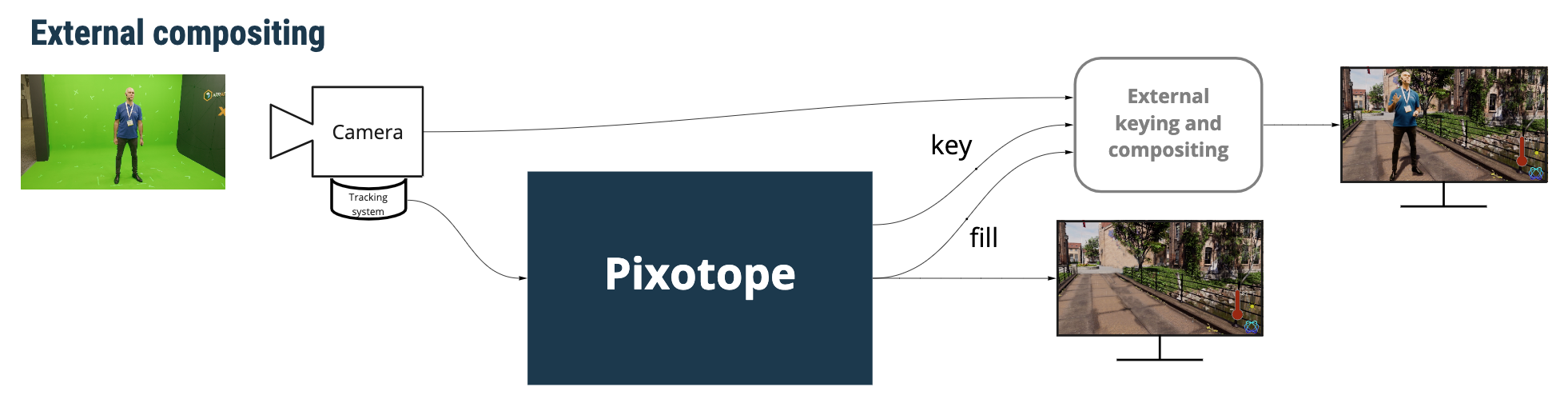

External compositing is a legacy compositing mode which allows you to do the compositing downstream.

Learn more about the different Compositing modes


In Director

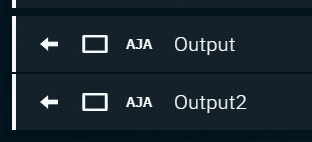

  1. Add 2 Media outputs in the routing panel

    Screenshot 2024-01-04 at 10.35.49.png

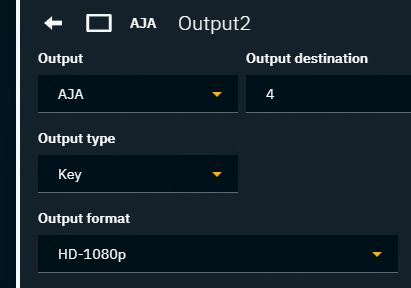

  2. Change the Output type of the 2nd output to "Key"

    Screenshot 2024-01-04 at 10.35.03.png

In Editor

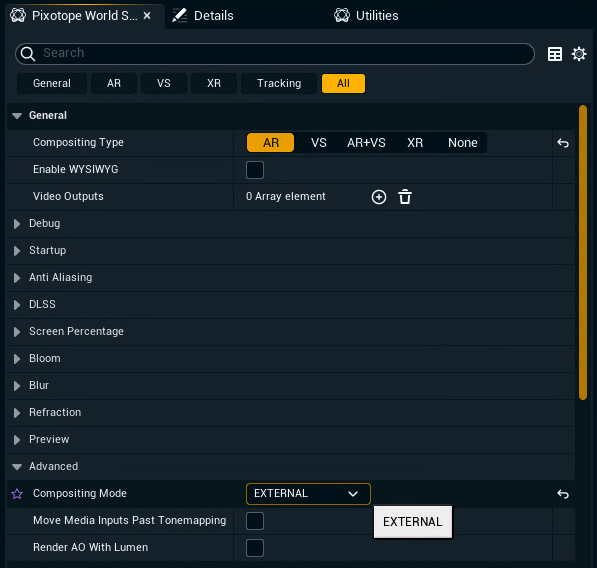

  1. Go to Pixotope World Settings

  2. Change the Compositing Mode to "External"

    Screenshot 2024-01-04 at 10.37.52.png

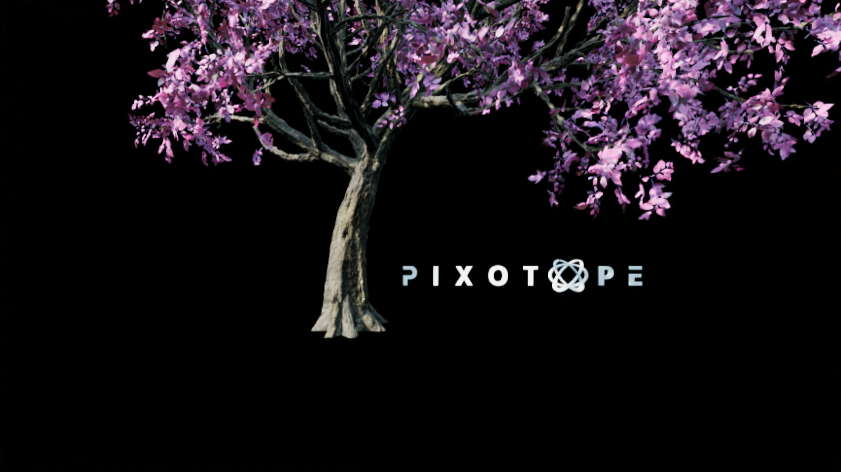

Screenshot 2024-01-04 at 10.41.51.png

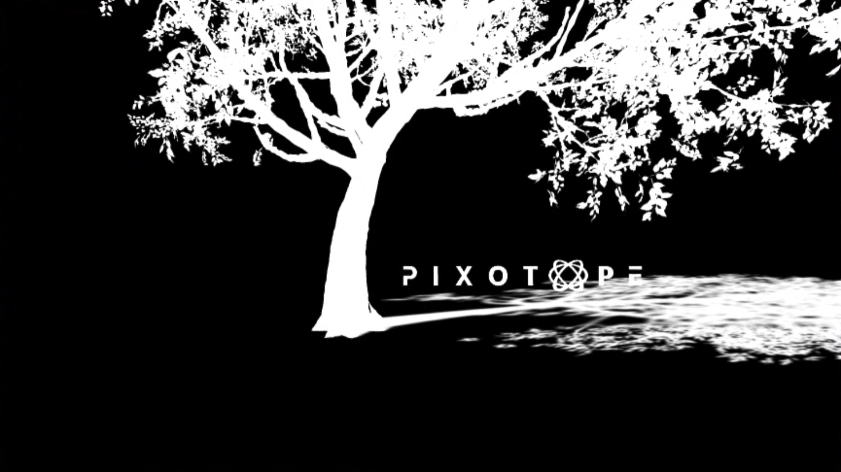

Screenshot 2024-01-04 at 10.41.34.png


Make sure to not have separate Video Outputs set up! Using External compositing together with General > Video Outputs can bring unexpected results.
