Configure Precision Time Protocol - PTP (2110)
ST 2110 requires a functioning PTP configuration.
Learn more about the ST2110 - Matrox Prerequisites
Configure network switch
On the network switch(es)
Enable PTPv2 on the physical port(s) Matrox’s network interface(s) is(are) connected to
For SMPTE 2022-7 network redundancy architectures and how PTP GMs are connected check out the Network Architecture and Connection Diagrams
For a successful ST2110 deployment, it is essential that the network switches have proper support for PTPv2 and that their configuration matches all the specific requirements of the ST2110 standard. Check out our recommended network switches from our partner Netgear → Netgear M4350-16V4C & Netgear M4350-40X4C
For fully IP-based ST2110 productions, we highly recommend a monitoring and analysis tool that provides comprehensive and relevant information about networking (PTP stability, packet timing, etc) as well as about the content (live visualisation, colour charts, vectorscopes, etc). Check out our recommended solution from our partner Bridge Technologies → Bridge Technologies VB440
Configure Matrox settings through Director

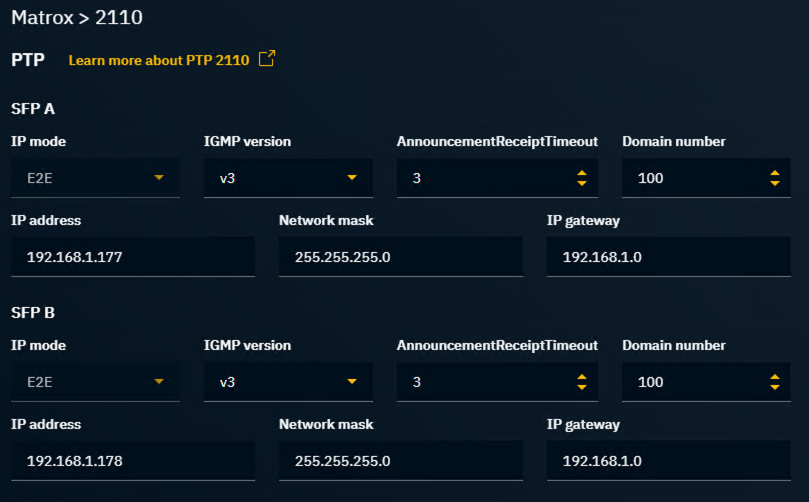

Go to Matrox > 2110 > PTP section in START > Machine settings
Configure its parameters to match your PTP Grandmaster’s configuration
IP mode, IGMP version, AnnouncementReceptTimeout and Domain number
Set up Matrox’s virtual network adapter
Enter a static IP address
Confirm with your network administrator that the address doesn't conflict with other devices or the DHCP range
Enter the Network mask
Enter the IP address of the gateway
This virtual network adapter only supports static IP addresses. For an example setup, check out Network Interface Configuration & IP addresses
