Adjust XR
An XR license is needed for
Showing this panel
Rendering XR Walls
In the XR panel, you can change all XR related settings available in the Editor.
Learn more about how to Set up an XR level (virtual window)
General
All XR related settings from Editor > Pixotope World Settings > XR
XR Wall Settings
All XR wall related settings
XR Wall Transform
XR wall transforms
All settings and transforms are applied as adjustments. Learn more about Adjusting levels - where it reads from and sends to
General

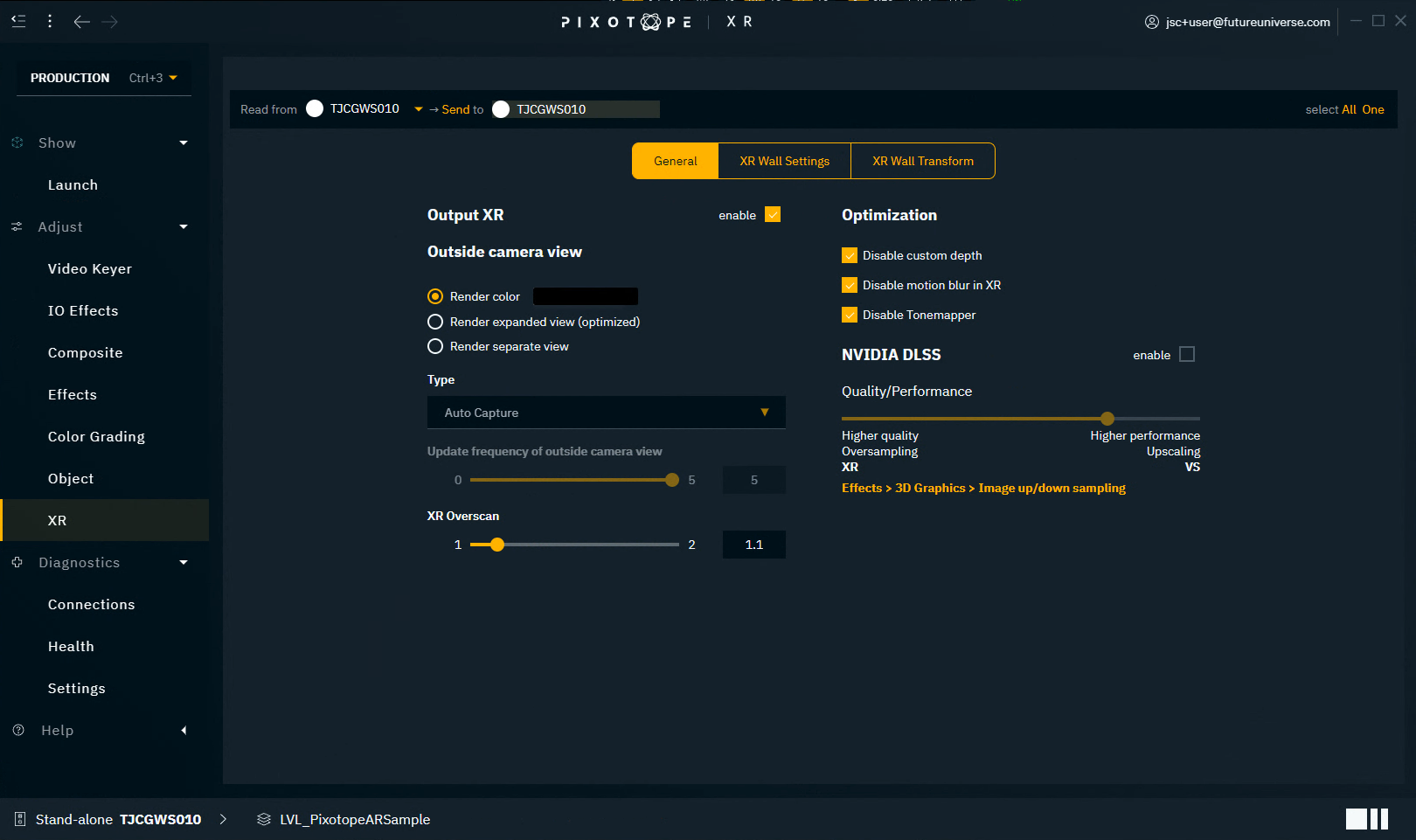

![](../../__attachments/3679617900/Screenshot%202023-06-16%20at%2016.13.01.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
Output XR
This enables XR rendering.
Outside camera view (outside frustum)
Change how the area outside the camera's view (outer frustum) is rendered
Render color | Renders a custom color |
Render expanded view (optimized) | Renders an expanded view of the camera view (inner frustum) |
Render separate view | Renders a separate view from the XROutsideFrustumPoint’s viewpoint |
Render Outside Type
Choose a render type. Used when Outside Camera View is set to Render Separate View.
Update Frequency Of Outside Camera View
Choose the update frequency. Used when Render Outside Type is set to Cube.
XR overscan
Blend between inside and outside camera view.
Optimization
Automatically optimize camera rotation and FOV
Pixotope will take control of the virtual camera to optimize the view for the output.
Disable custom depth
Gain performance by disabling Custom Depth rendering (disables AR and VS).
Disable motion blur in XR
Disables motion blur in the render output. Checked by default.
Disable tone mapper
Checked by default as one usually does not want tone mapping on XR Walls.
Tone mapping is handled by the display gamma of the output device
NVIDIA DLSS
Same as PRODUCTION > Effects > 3D Graphics > Image up/down sampling > NVIDIA DLSS
Learn more about Pixotope World Settings > XR
XR Wall Settings

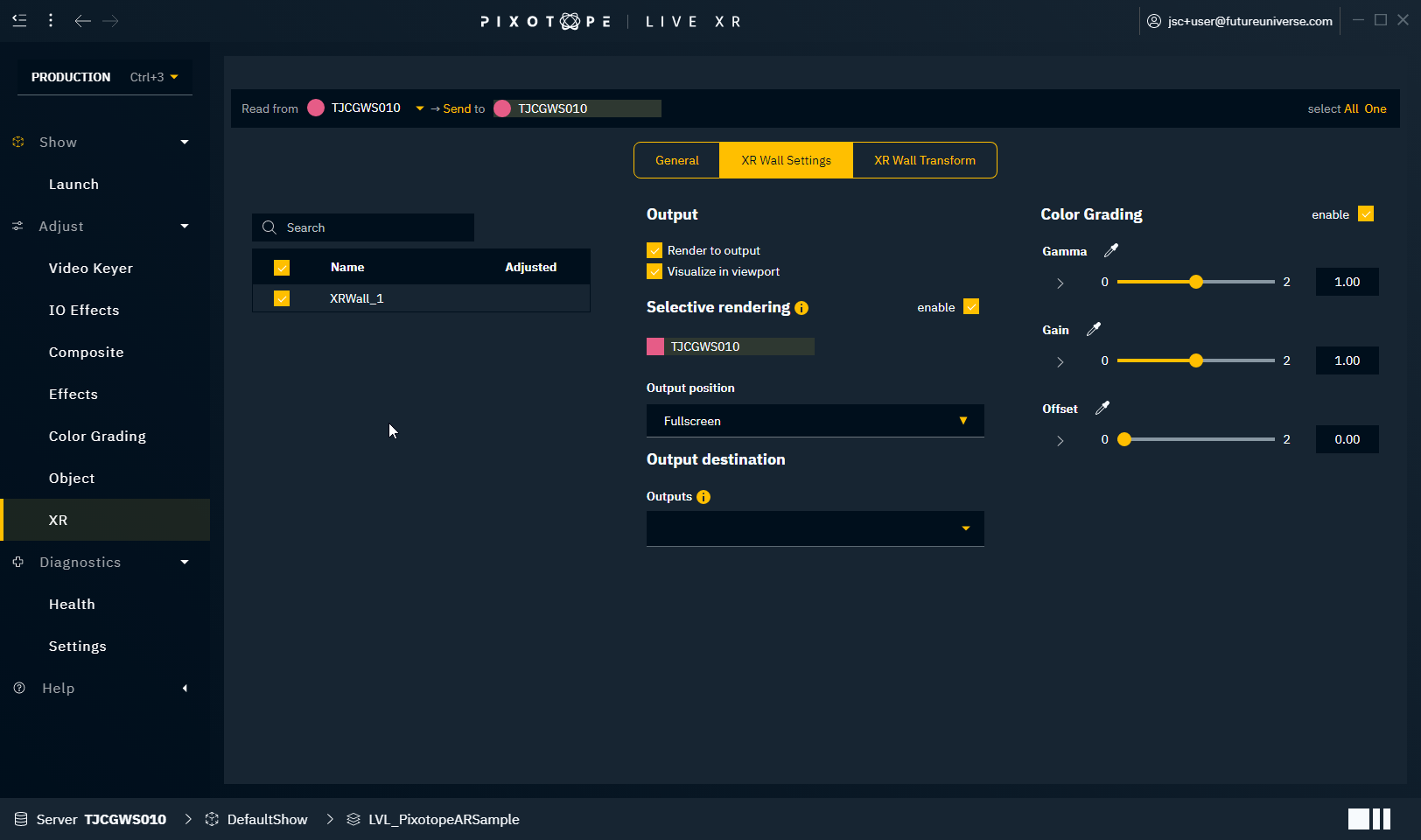

![](../../__attachments/3679617900/Pixotope_Director_2022-07-29%20at%2011.35.01.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
List of XR walls
This table shows a list of all XR walls to which the settings on the right will be applied to.
Learn more about XR Walls
Output
Render to output
Enables the rendering of the selected XR wall.
Visualize in viewport
Show the XR rendering of the selected XR wall in the viewport.
The rendered image is not tone mapped
Selective rendering
Select the machines on which the selected XR wall should be rendered on.
In Editor > XR wall > Details the selected machines are shown using the windows machine name.
Output position
Choose how to place this XR Wall on the render output. Options are
Full screen
One of the four quadrants (Upper left, Upper right, Lower left, Lower right)
Custom - see Custom Output Position Min and Max
Custom Output Position Min/Max
When Output position is set to "Custom", use these parameters to specify the exact position of the XR Wall on the render output.
Color grading
Compensate for color discrepancies of the physical planes.
XR Wall Transform

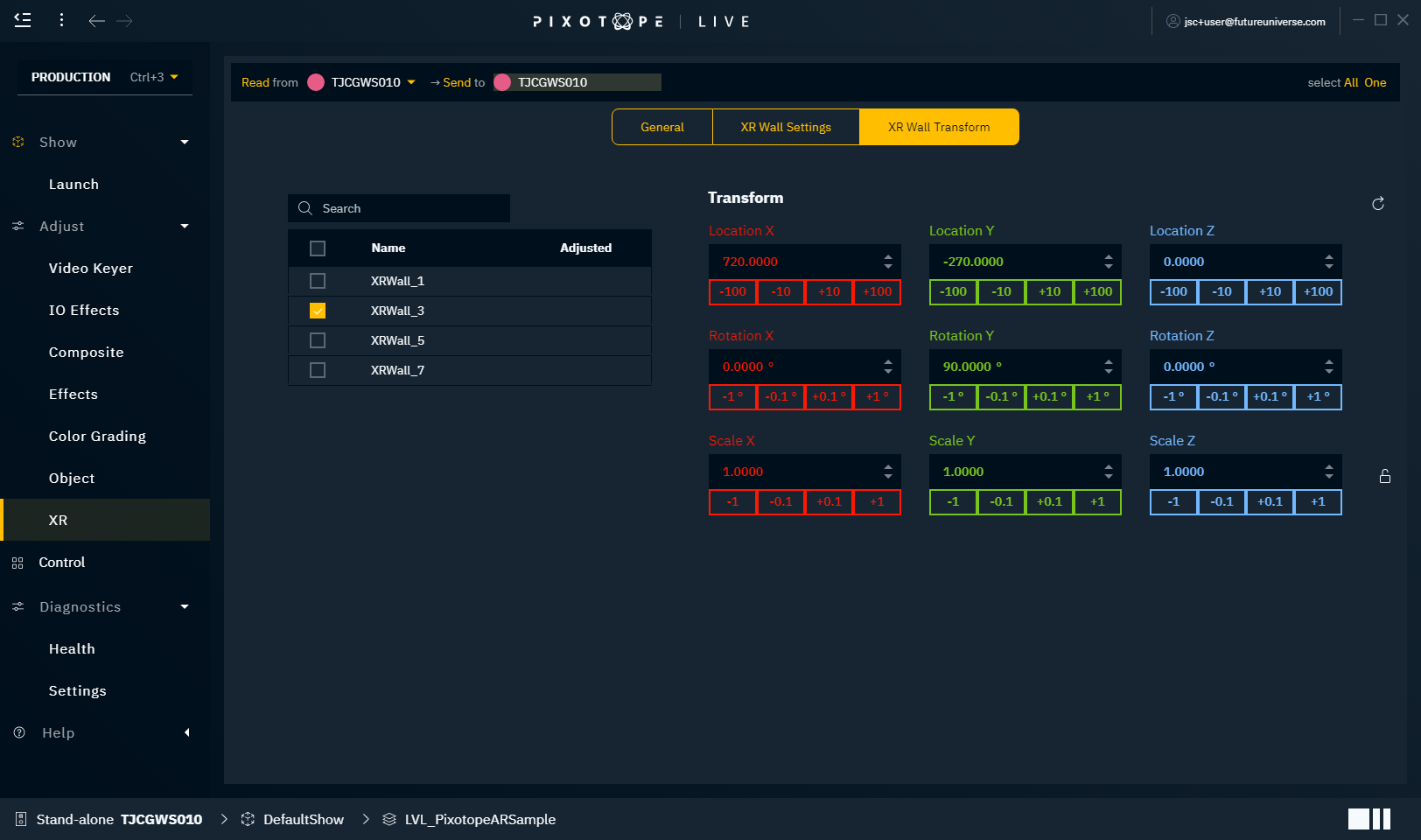

![](../../__attachments/3679617900/2022-03-11%2015_28_38-Director.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)
List of XR walls
This table shows a list of all XR walls to which the settings on the right will be applied to.
Transform
Location
Move the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment.
Rotation
Rotate the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment.
Scale
Adjust the scale of the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment
All settings and transforms are applied as adjustments. Learn more about Adjusting levels - where it reads from and sends to
