Adjust XR

In the XR panel, you can change all XR related settings available in the Editor.

Learn more about how to Set up an XR level (virtual window)

All settings and transforms are applied as adjustments. Learn more about Adjusting levels - where it reads from and sends to

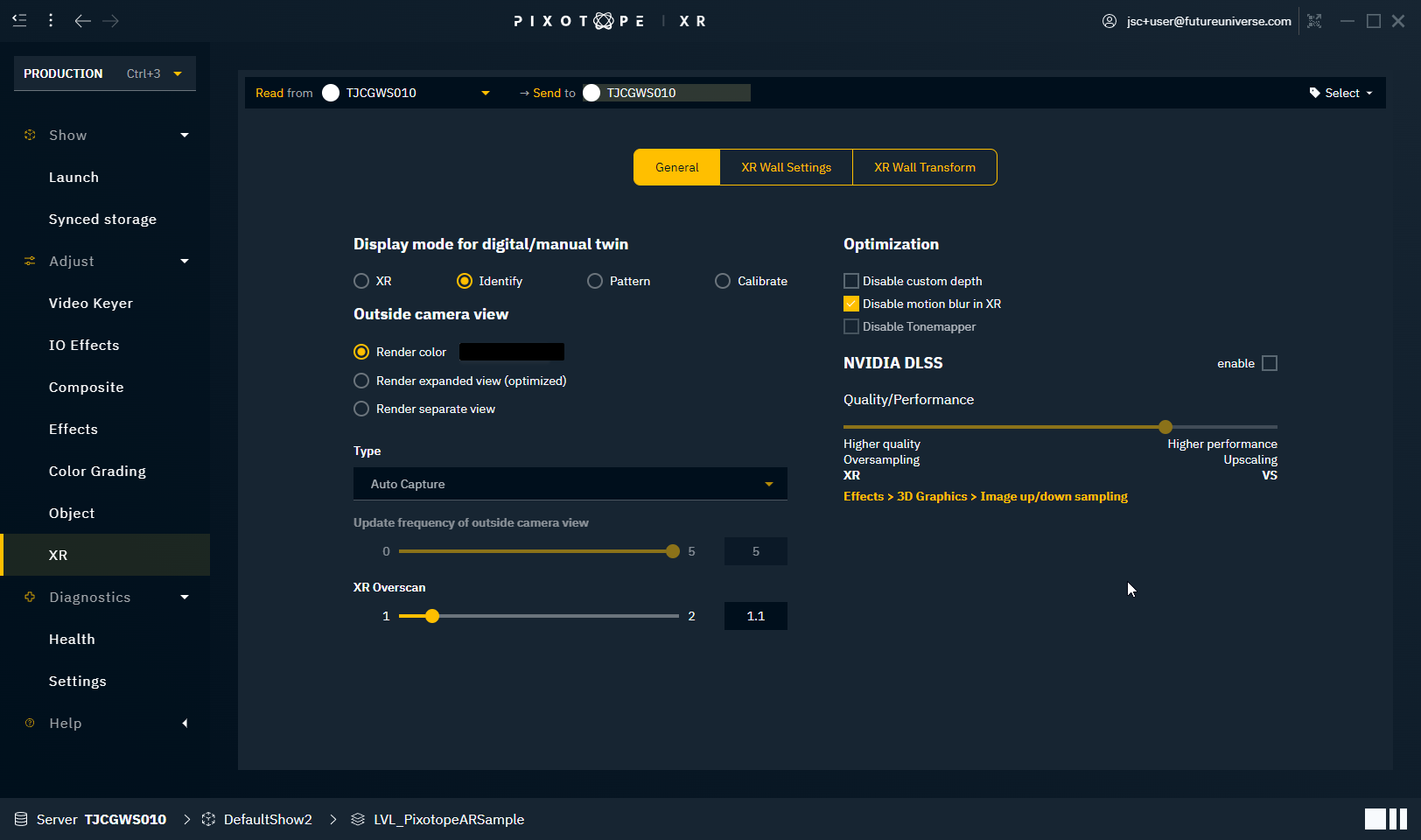

General

Display mode for digital/manual twin

Change what is displayed on the XR walls.

XR	Shows the actual XR output
Identify	Shows all mappings Learn more about how to Create mappings
Pattern	Shows the tracking pattern when using Pixotope Tracking Learn more about how to Calibrate XR alignment with Pixotope tracking
Calibrate	Shows outlines for every XR wall. On XR machines/LED wall these lines are red, on AR machines the lines are green. When the wall is perfectly calibrated, the lines should overlap and appear yellow. Learn more about how to Calibrate XR alignment with Pixotope tracking

Outside camera view (outside frustum)

Change how the area outside the camera's view (outer frustum) is rendered

Type

Choose a render type. Used when Outside Camera View is set to Render Separate View.

Update Frequency Of Outside Camera View

Choose the update frequency. Used when Render Outside Type is set to Cube.

XR overscan

Blend between inside and outside camera view.

Optimization

Disable custom depth

Gain performance by disabling Custom Depth rendering (disables AR and VS).

Disable motion blur in XR

Disables motion blur in the render output. Checked by default.

Disable tone mapper

Checked by default as one usually does not want tone mapping on XR Walls.

Tone mapping is handled by the display gamma of the output device

NVIDIA DLSS

Same as PRODUCTION > Effects > 3D Graphics > Image up/down sampling > NVIDIA DLSS

Learn more about Pixotope World Settings > XR

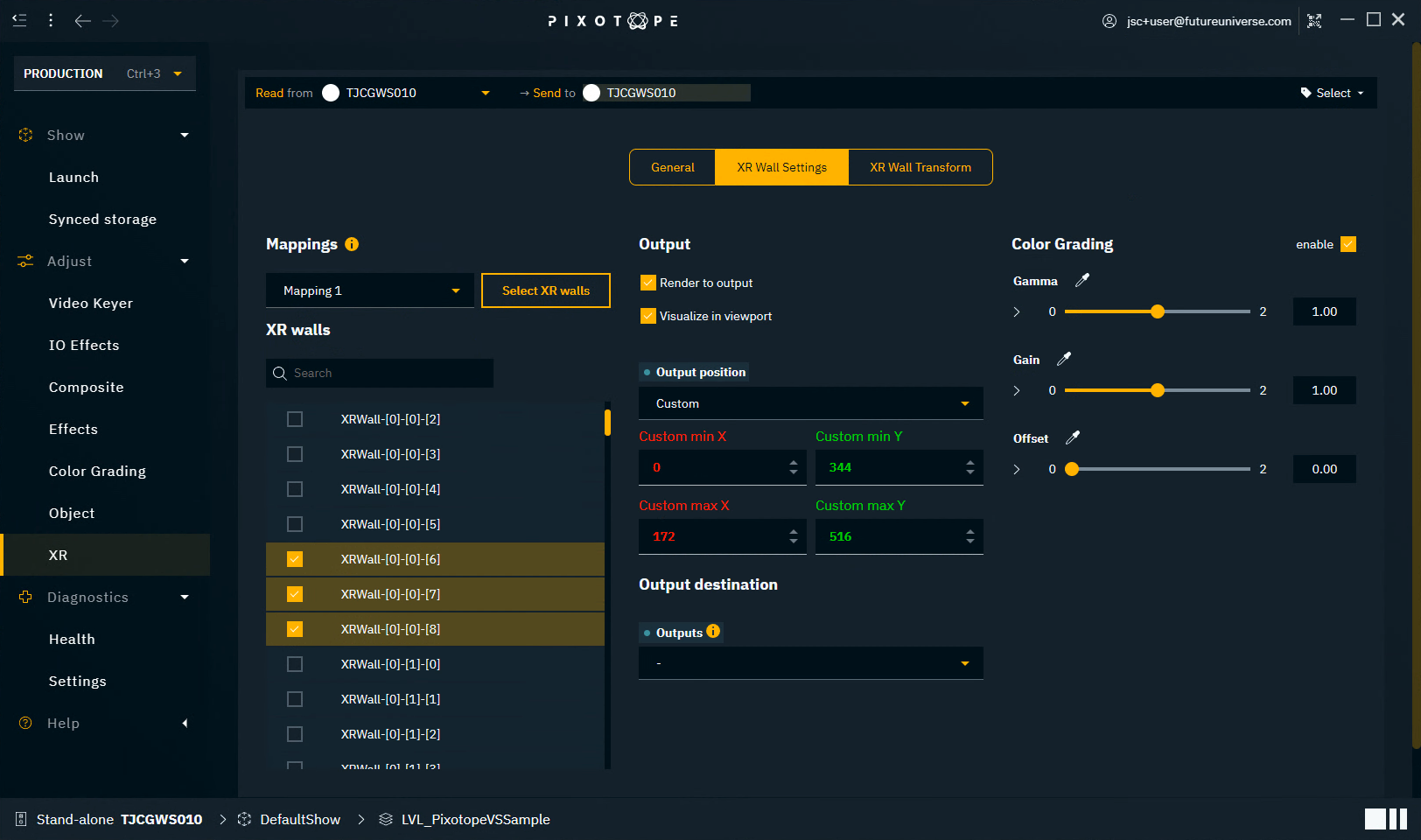

XR Wall Settings

Mappings

This dropdown shows a list of all mappings to quickly select all related XR walls.

Only shown if there are mappings set in the Editor. Learn more about how to Create mappings

XR walls

This table shows a list of all XR walls to which the settings on the right will be applied to.

Learn more about XR Walls

Output

Render to output

Enables the rendering of the selected XR wall.

Visualize in viewport

Show the XR rendering of the selected XR wall in the viewport.

The rendered image is not tone mapped

Output position

Choose how to place this XR Wall on the render output. Options are

• Full screen

• One of the four quadrants (Upper left, Upper right, Lower left, Lower right)

• Custom - see Custom Output Position Min and Max

Custom Output Position Min/Max

When Output position is set to "Custom", use these parameters to specify the exact position of the XR Wall on the render output.

Output destination

Outputs

Choose the output of a machine to which this wall should be output to.

Color grading

Compensate for color discrepancies of the physical planes.

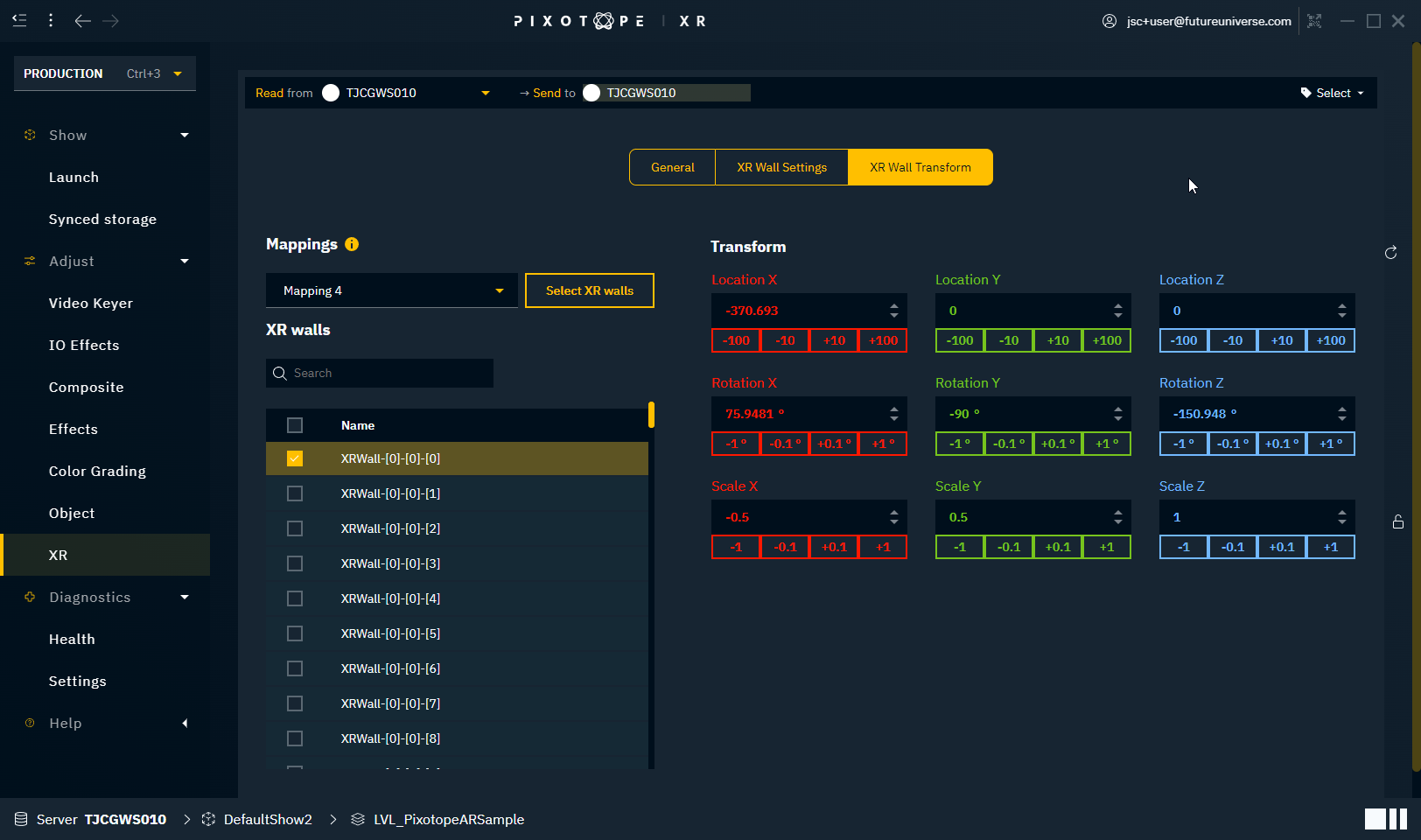

XR Wall Transform

Mappings and XR walls

See XR Wall Settings

Transform

Location

Move the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment.

Rotation

Rotate the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment.

Scale

Adjust the scale of the selected XR wall on the corresponding X-, Y- or Z-axis by the desired increment

All settings and transforms are applied as adjustments. Learn more about Adjusting levels - where it reads from and sends to
