Getting started with Pixotope

Learn how to do a simple virtual studio production using:

• 1 tracked camera

• 1 computer

• 1 Pixotope AR/VS or XR license

Learn more about Plan your virtual production.

Check out the following links to get an overview of Pixotope, its concepts and components.

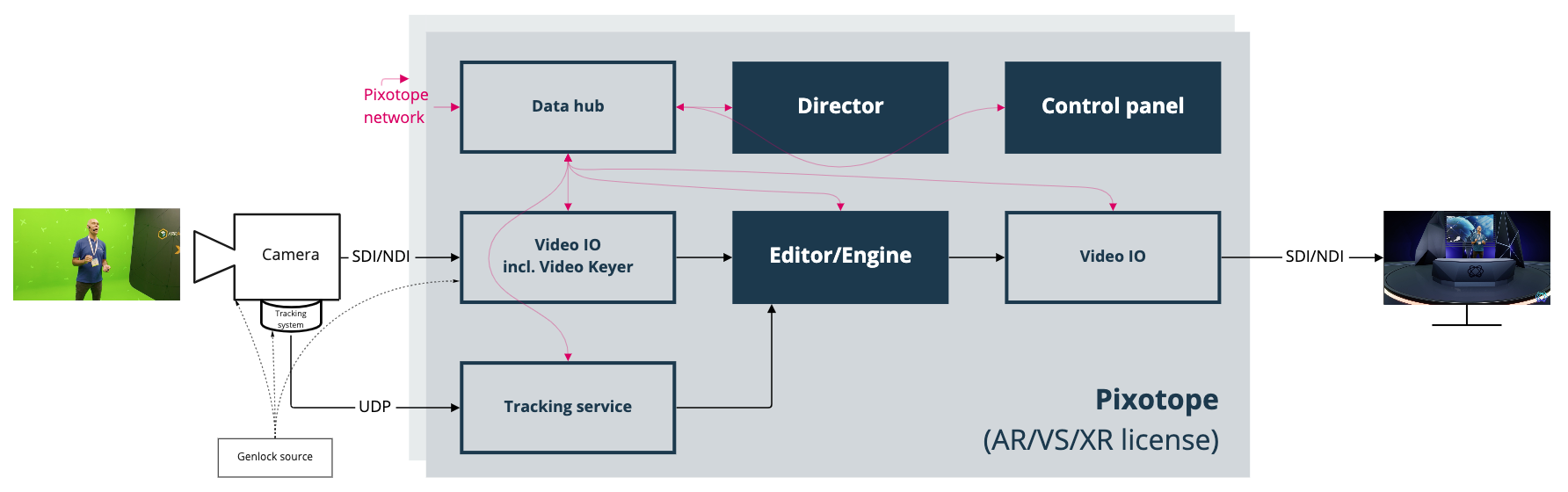

Schematic

• Camera system

  • Camera

    • The captured video comes in via

      • SDI into the video card

      • or NDI through the network card - What is NDI?

    • Signal gets keyed or just passed through into the Pixotope Engine

  • Camera tracking system

    • Tracking data comes in through the network card

• Tracking service translates the data and sends it to the Pixotope Engine

• Pixotope Engine applies the physical camera conditions to the virtual camera

  • The rendered virtual scene gets merged with the real scene

  • The scene gets output through SDI or NDI

• Pixotope Director is the main software you interact with for configuring, adjusting and controlling your show

  • It can be used locally or remotely

  • It controls all aspects of Pixotope

• Pixotope Data hub

  • It handles the communication between all Pixotope services and all Pixotope machines. See multi-camera setup.

Example projects using Pixotope

Pixotope lets you merge the real and the virtual world, in real time and in perfect quality.

To see what Pixotope has made possible, visit pixotope.com

Or try it out yourself and download our example projects.

Checklist

• The machine is set up

  • Network card(s) is/are installed and configured

  • Graphics and videoIO cards are installed and they use the required drivers - See system requirements

• The physical camera is set up

• The tracking system is set up

• A user account with a valid AR/VS, XR license is available - Manage users and licenses

• Pixotope is installed - Install Pixotope

Start Director

The Pixotope Director is the main interface for setting up, adjusting and controlling a Pixotope production.

1. Start Director

2. Log in

3. Choose a AR/VS, XR license

4. Choose a Stand-alone or Server role

5. Create a new show from an existing project or a template

Learn more about Starting Director, Create, open and manage shows and the Pixotope Director - Interface

Learn more about Roles - Stand-alone, Client or Server

Learn more about Show files - where your SETUP is stored

Set up your first show

Edit your show settings and configure and calibrate your camera systems, media in- and outputs and object tracker groups

1. Add a camera system

2. Configure camera tracking

3. Configure video inputs and outputs

4. Configure routing

5. Calibrate tracking

6. Calibrate syncing

Learn more about Setting up a show

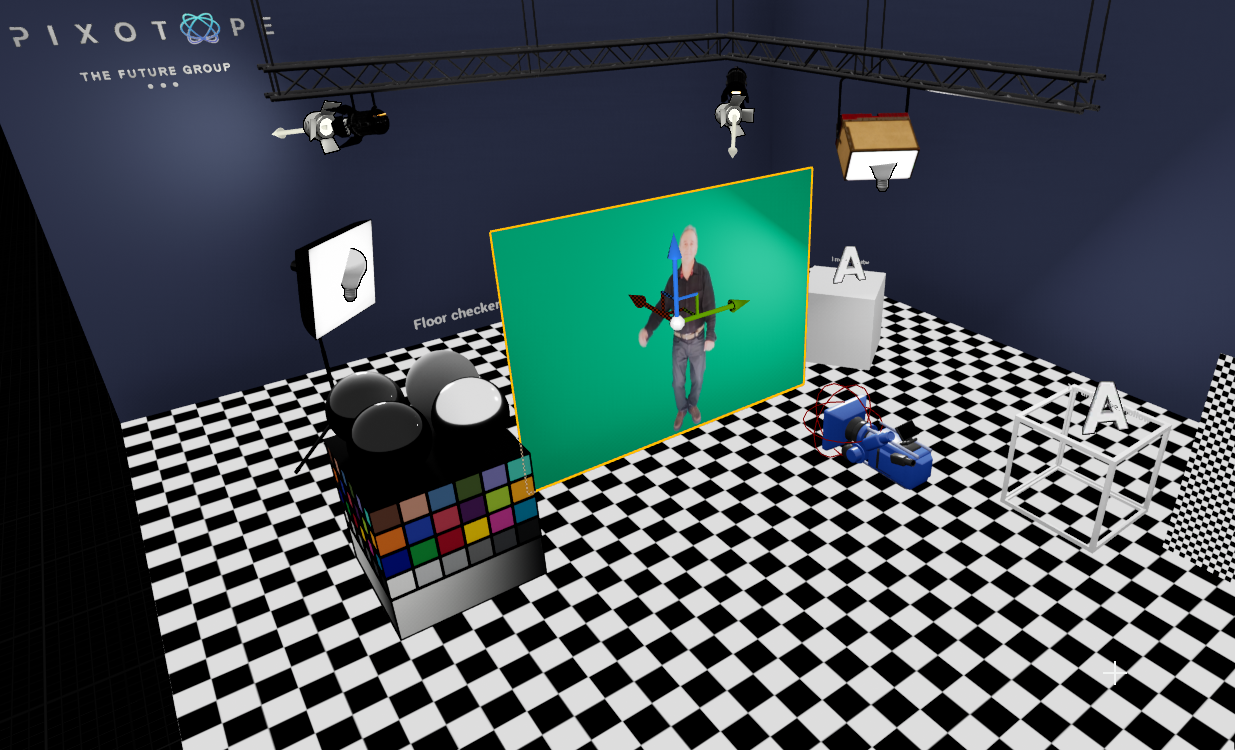

Prepare a simple VS level

For a virtual studio, we need to place the talent in our 3D environment.

1. Film the talent with a tracked camera in front of a green screen

2. Position a compositing plane in the virtual studio

   • The video is projected onto the compositing plane

Learn more about how to Set up a VS level and more general Preparing levels in Pixotope Editor

Make adjustments

To perfectly composite video and 3D graphics, use Pixotope's adjustment panels.

Learn more about Making adjustments

Key video

Pixotope’s video keyer is an easy to use real-time chroma keyer which is used to key video inputs.

1. Select the camera system you would like to key

2. Initialize the key

3. Refine the key

Learn more about how to Use the video keyer

Adjust compositing

Adjust how video and 3D graphics are composited together.

Learn more about how to Adjust compositing

Adjust effects

Optionally you can add camera effects.

Learn more about how to Adjust effects

Adjust color grading

Adjust the color grading of your 3D graphics and video so the sources match. Optionally you can color grade the final output.

Learn more about how to Adjust color grading

Create a simple control panel

1. In the Editor: Expose the properties you would like to control

2. Create a new control panel

3. Create a trigger widget

4. Add a target action

5. Save your control panel

Learn more about Creating a custom control panel

Run live

1. Launch your level in LIVE mode

2. Use the control panel to control your level

Learn more about Running live production

Data integration and API

Use external data in your Pixotope levels or drive the production with external controls.

Learn more about Using the Pixotope Engine API

More

Find additional information here:

• FAQs

• Known bugs and limitations

• Troubleshooting
