Replicate any Pixotope functionality - API Log tab

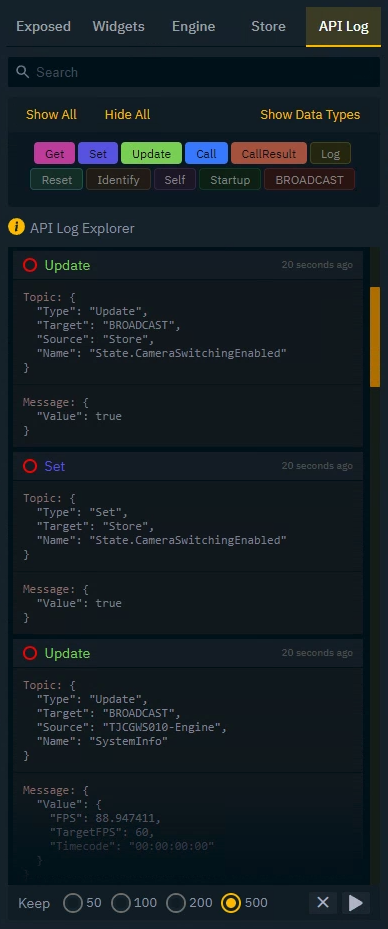

The API Log tab lists all occurring API messages of the Pixotope network. You can

• listen to and read values from them

• (re-)trigger them

This is an advanced feature. Use with caution!

Make a backup of your show file before changing show file parameters through the control panel! Also check Automatic backups

Find the API call to replicate or read from

Start listening

1. Go to the API Log tab

2. If not already done, click the Play button to start logging messages



3. Use the x button to clear the logs

   • Use the Keep options to set the maximum amount of messages to keep.

Find the right message

In a Pixotope network there is continuous message traffic, which might make it harder to find the correct message. Filtering on the correct message type will help.

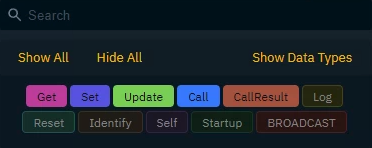

1. Select one or more message type filters



2. Trigger an action, in Director for example, which you would like to replicate or read from

3. Click the Pause button to stop listening to more messages

4. Use the search field or scroll to find the right message

Main message types

Learn more about their details and other message types in Pixotope API - Message Scheme

Double clicking a message in the API Log copies it to the clipboard. Depending on which one you double click, it copies either only the Topic, the Message or both.

Add a widget using this action

1. Click and drag the red circle onto the canvas

2. Select a widget based on if you are

   • reading a value

   • OR setting a value/triggering an action

Suggested widgets based on message type

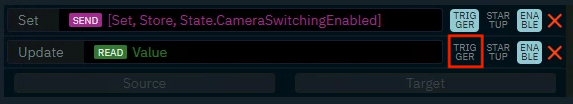

You can change to Send or Read (default action) using the Trigger toggle next to the action.

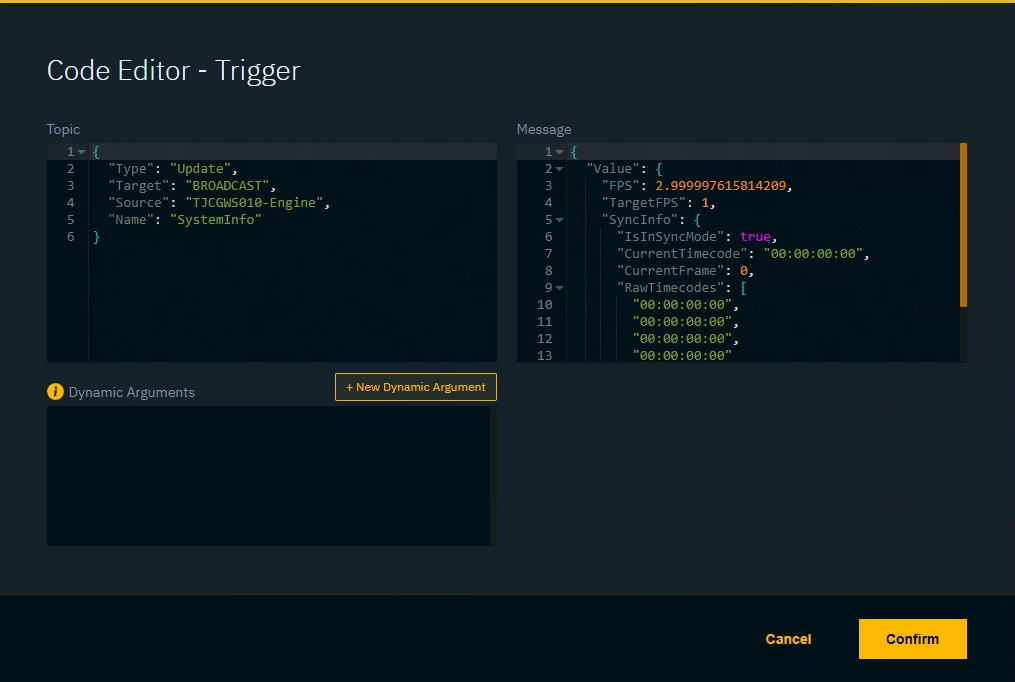

Update Send action

1. Click on the action in the action list to open the Code Editor

2. Change the Topic and Message to fit your needs

   • The messages are in a JSON format

Learn more about the Pixotope API - Message Scheme

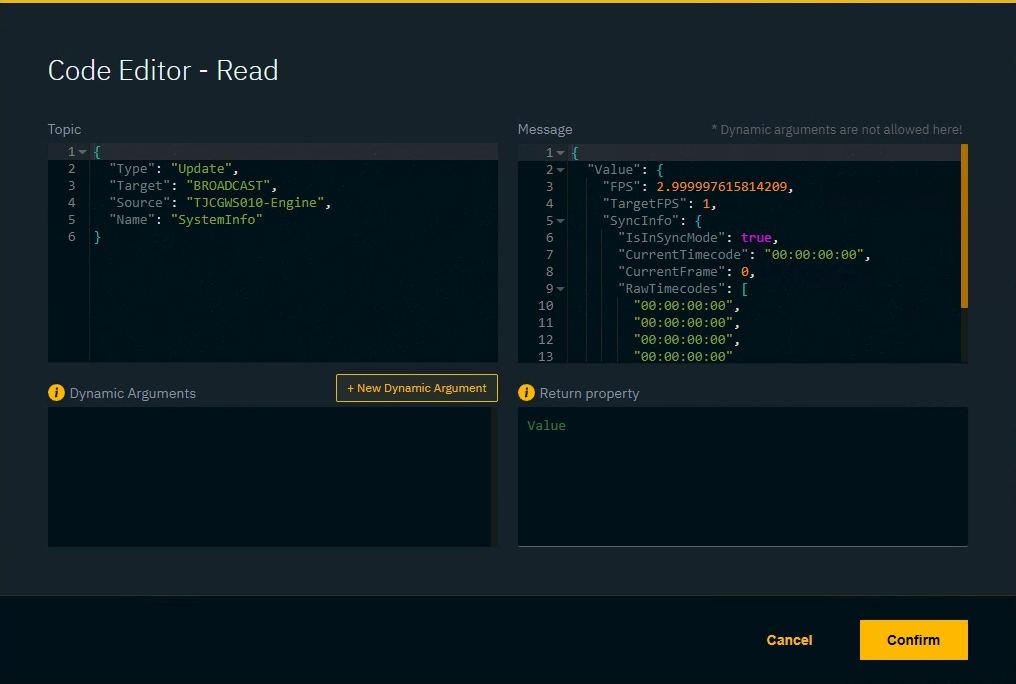

Update Read action

Message results come in a JSON format. To only get a specific property use the dot notation.

Learn more about → Property accessors in Javascript

1. Click on the action in the action list to open the Code Editor

2. Change the Return property path to retrieve a specific value

Example

{
  "Value": {
    "TJCGWS010-Engine": {
      "FPS": 59.99781,
      "TargetFPS": 59.9,
      "SyncInfo": {
        "IsInSyncMode": true,
        "CurrentTimecode": "00:00:00:00",
        "CurrentFrame": 0,
        "RawTimecodes": [
          "00:00:13:29",
          "00:02:00:00"
        ]
      }
    }
  }
}

Use dynamic arguments

To inject dynamic data into the API calls use Dynamic arguments. They can be used in

• Topic

• Message

• Return property

1. Click "New dynamic argument" and give it a descriptive name

2. Copy the argument and replace the string you want to dynamically inject

3. Click Confirm

4. For each argument, there will be a field in the Action List

   • Drag a property into the field

   • OR double-click it to input static data

Dynamic arguments are

• surrounded by double curly brackets

• need to be placed inside quotes (for Topic and Message)

Example usage in Topic or Message

{
  "Type": "Update",
  "Target": "BROADCAST",
  "Source": "{{machineName}}-Engine",
  "Name": "SystemInfo"
}

Example usage in Return property

Value.{{machineName}}-Engine.SyncInfo.RawTimecodes

Listen to variable changes within a blueprint

By default, blueprint changes are not broadcasted to the network. If you need to variable changes within a blueprint to broadcast Update messages, do the following:

1. Add a

   • Get Update Broadcaster node

   • Broadcast Property Changed Update node

   • Self node

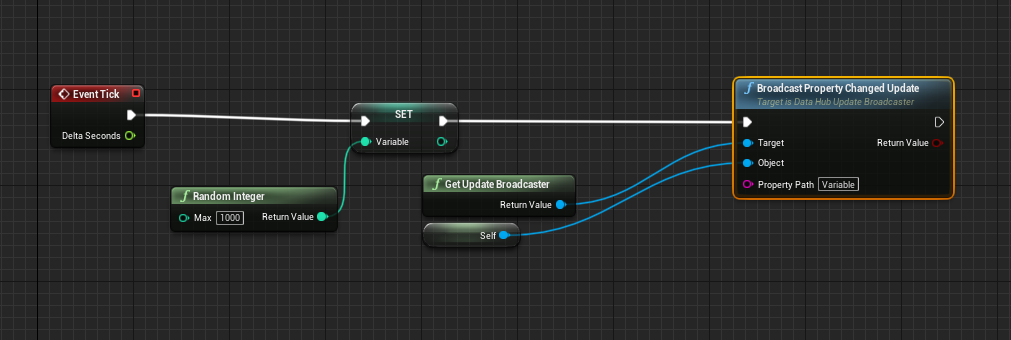

2. Connect them as shown below

3. Enter the variable name you want to get updates from in the Property path field on the Broadcast Property Changed Update node
