Starting Pixotope - START

Academy Tutorial - Pixotope Director Walkthrough - START View

• Step by Step Walkthrough of the START View in Director

Start Pixotope

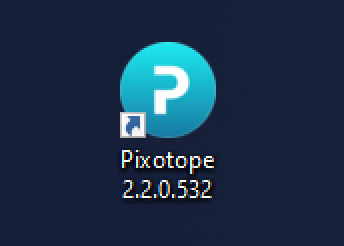

1. Double-click the "Pixotope [version number]" icon on your desktop

This launches Pixotope Daemon, which will start all necessary Pixotope services including the Pixotope Director.

Need more panels? Learn more about how to open Director in the browser

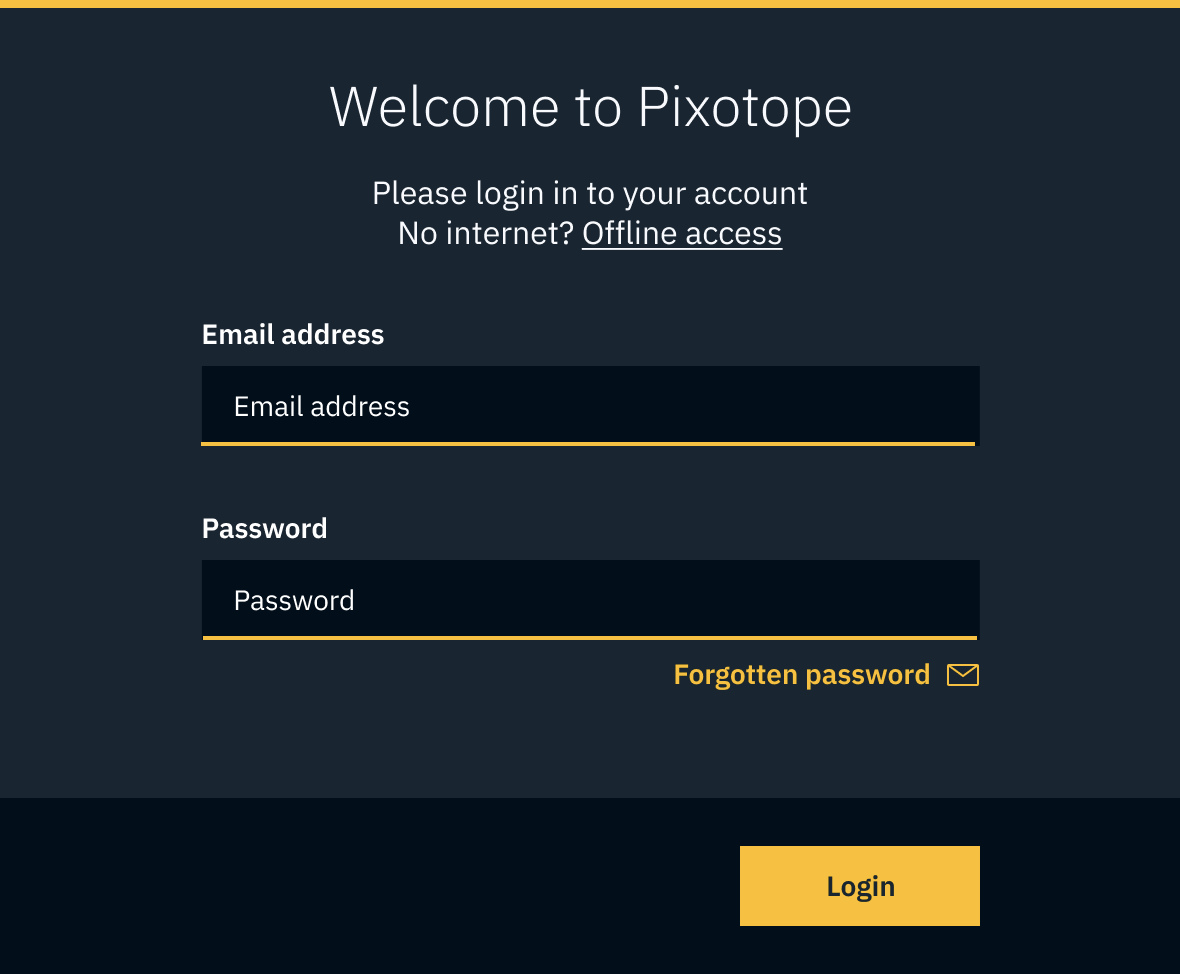

Log in

For accessing offline machines, check out Get a license for an offline machine (air-gapped)

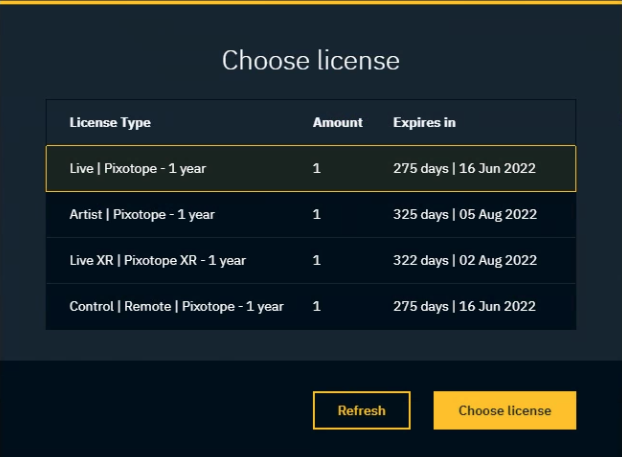

Choose a license

Check out which license type fits your needs: License types - AR/VS, XR, Control, Artist and more

You can change the license type later in the User menu (top right when logged in)

• If the list of licenses is empty, contact your account admin to assign licenses to your user account via the cloud.

• If the license appears, but shows "0" available, this means that license is being used on another machine.

  • You can release the license via your Pixotope cloud account → login.pixotope.com > My Licenses

Learn more about how to Manage users and licenses

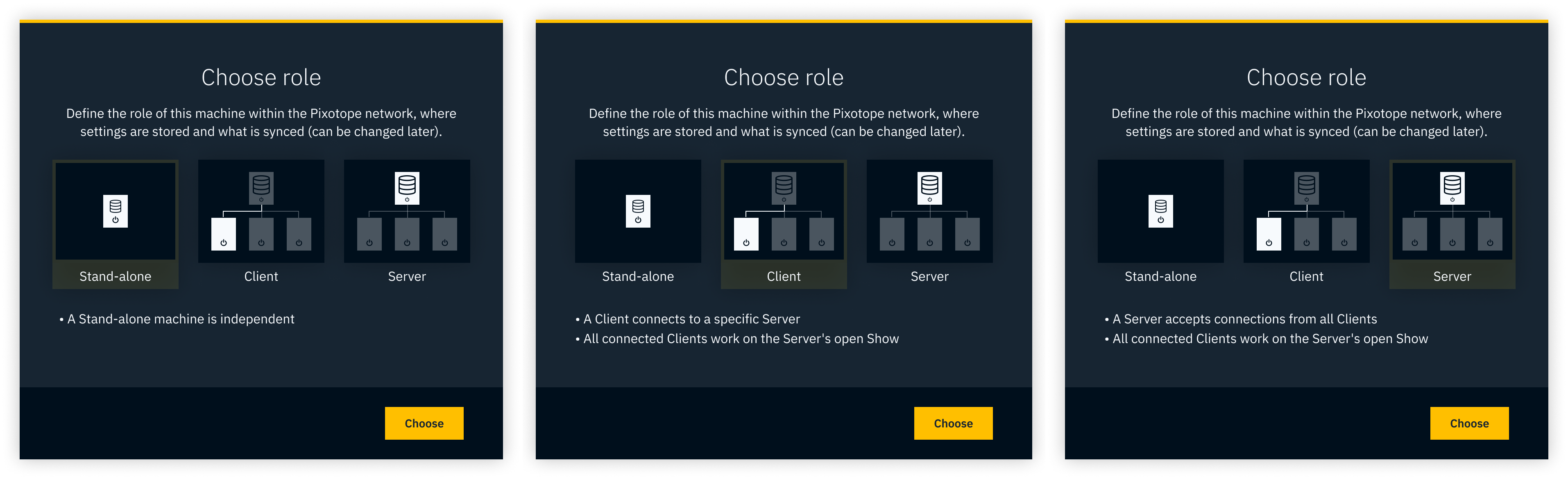

Select a role

Roles are used to define the responsibility of a machine in a Pixotope network.

Learn more about Roles - Stand-alone, Client or Server

Learn more about how to Use Backup Server (failover)

Learn more about Single- and multi-machine example setups

This selection is shown on first startup and can be changed later under START > Storage > Machine settings

Select a network

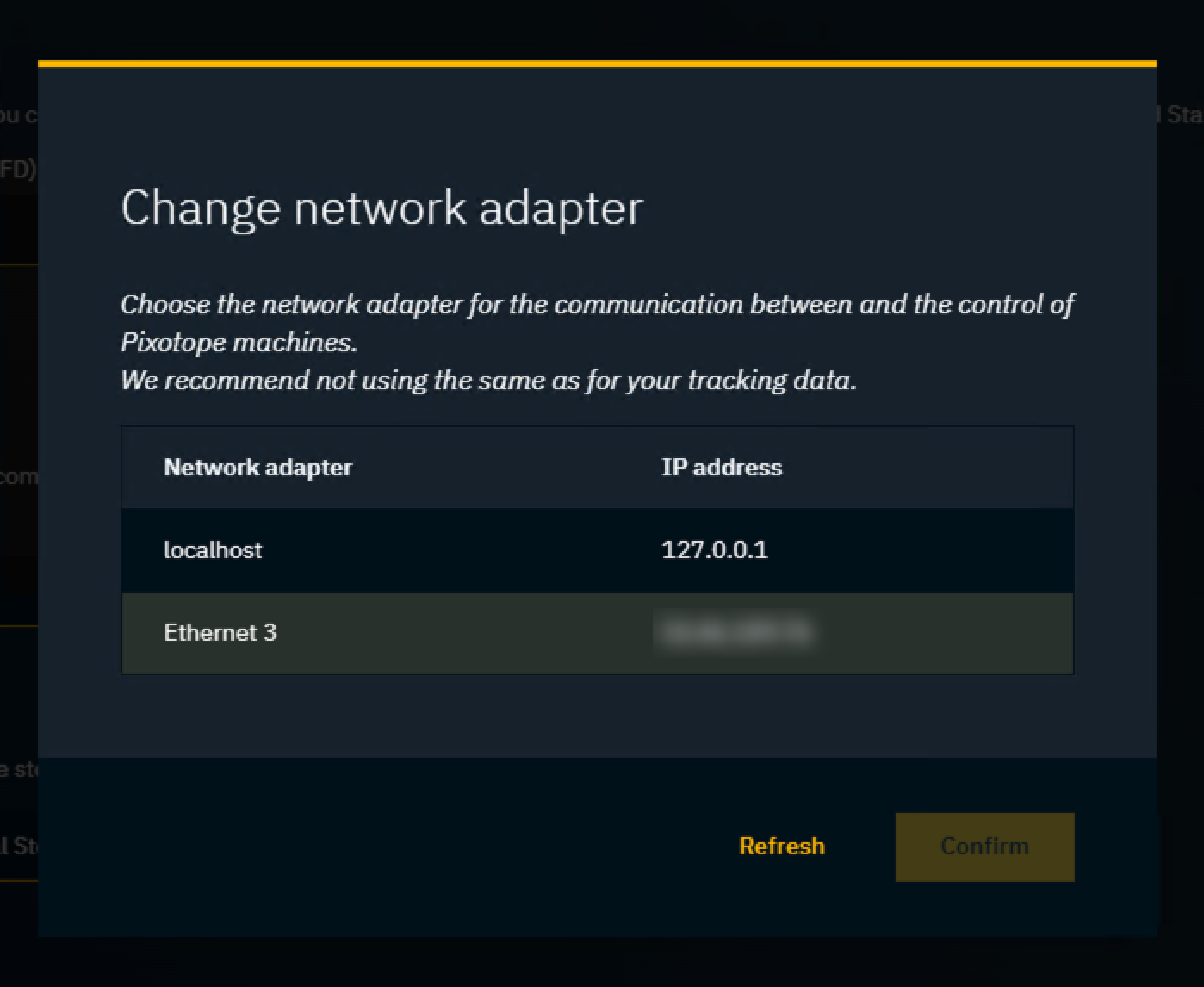

For Server role

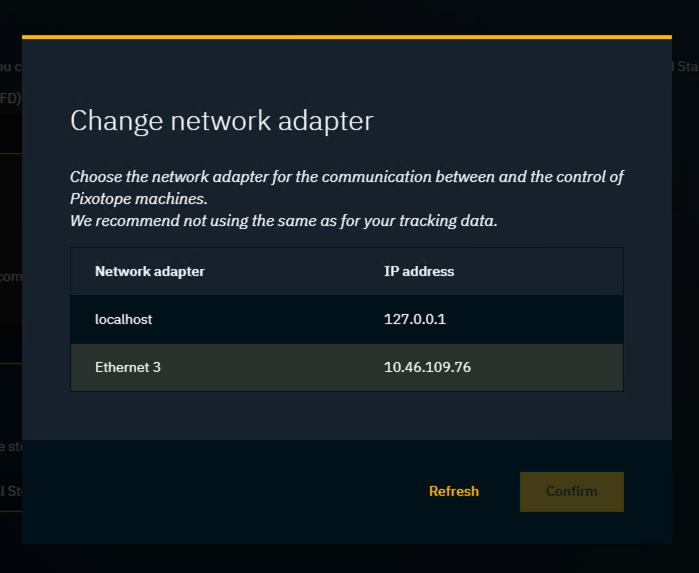

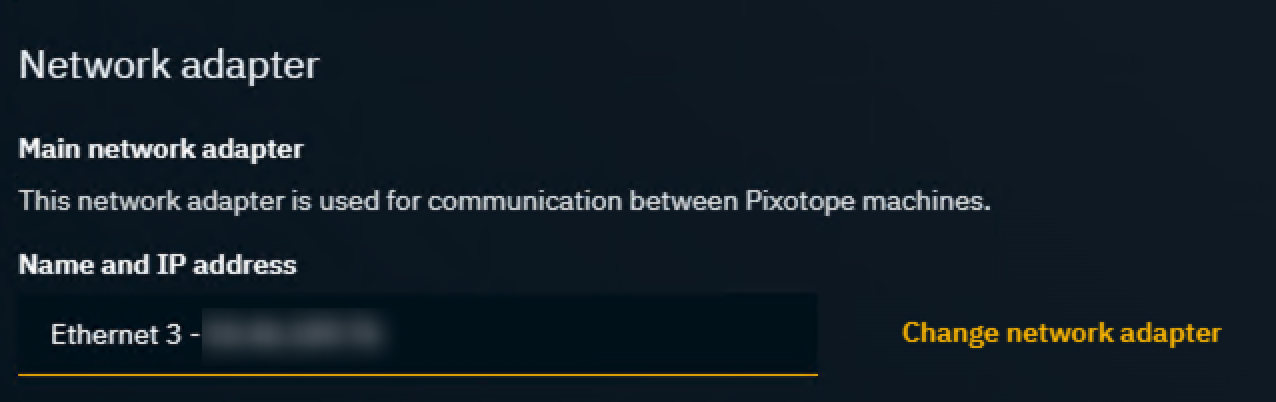

Choose the network adapter which should be used for communication between Pixotope machines.

Tracking data can be sent via another network adapter as long as they are both on the same subnet.

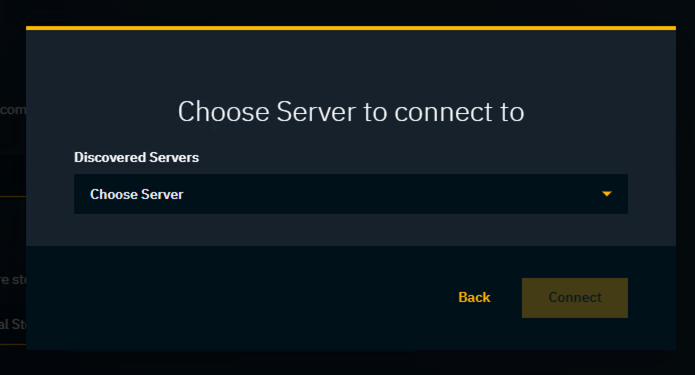

For Client role

Choose the server to connect to.

For Stand-alone role

There is no network selection.

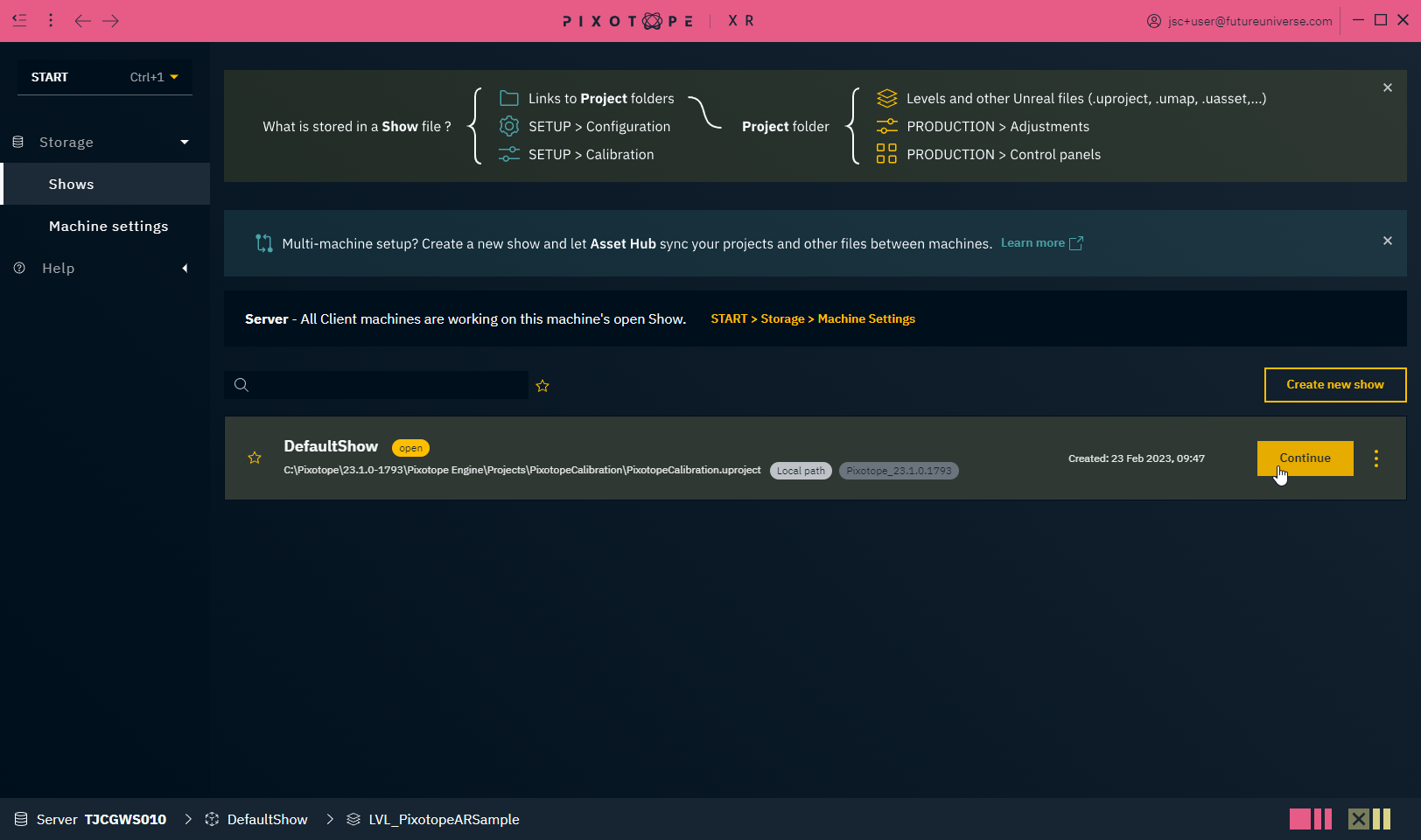

Create a new show

Learn more about Show files and how to manage them

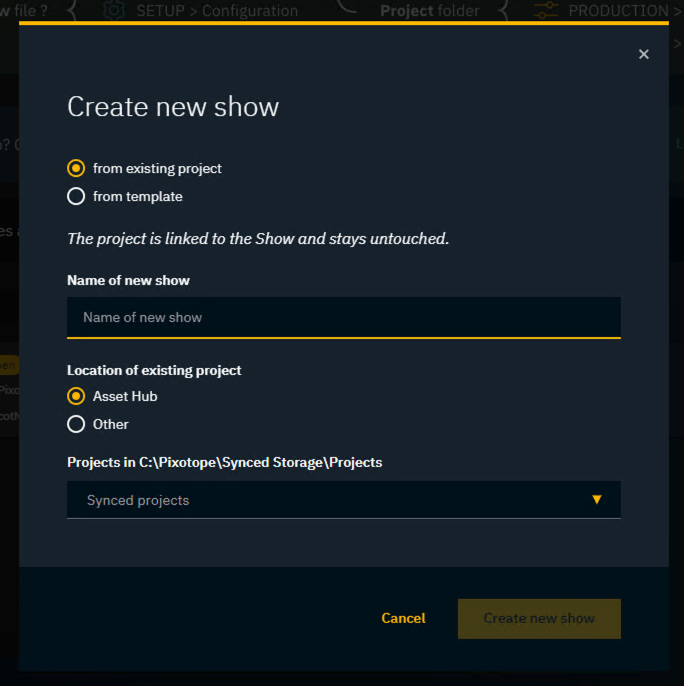

Click the Create new show button in START > Shows

Choose between the following:

Create a show from an existing project

• Name your show file

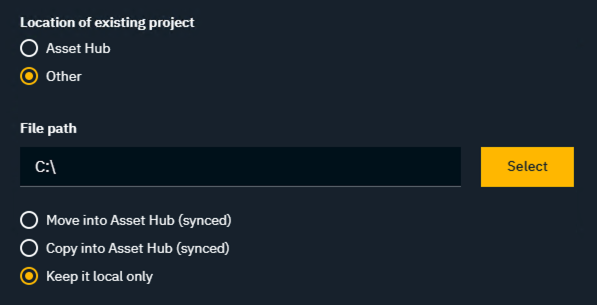

• Select where your project file is stored on the machine

  • Asset Hub - dropdown list would automatically fetch all project files in the file path C:\Pixotope\Synced Storage\Projects

  • Other - open the file explorer and manually select the project file

    • you can then choose to keep the project local only, copy or move it to C:\Pixotope\Synced Storage\Projects for the Asset Hub to track and sync changes between machines.

Learn more about syncing using the Asset Hub

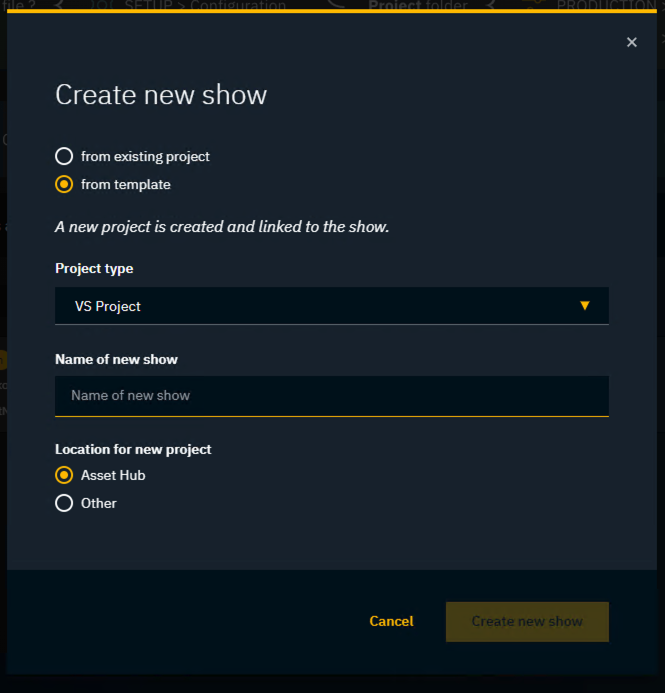

Create a show from a Pixotope template

• Select the type of project template you want

• Name your show file

• Select where to save the project template file

  • Asset Hub - will save to the path C:\Pixotope\Synced Storage\Projects and keep any changes to the project synced across machines

  • Other - open the file explorer and manually select where to save the project template file

Optionally: Check the network health

For a multi-machine setup it is a good idea to check the health of your network before going Live and interrupting your performance.

1. Continue into your created show or the existing Default Show

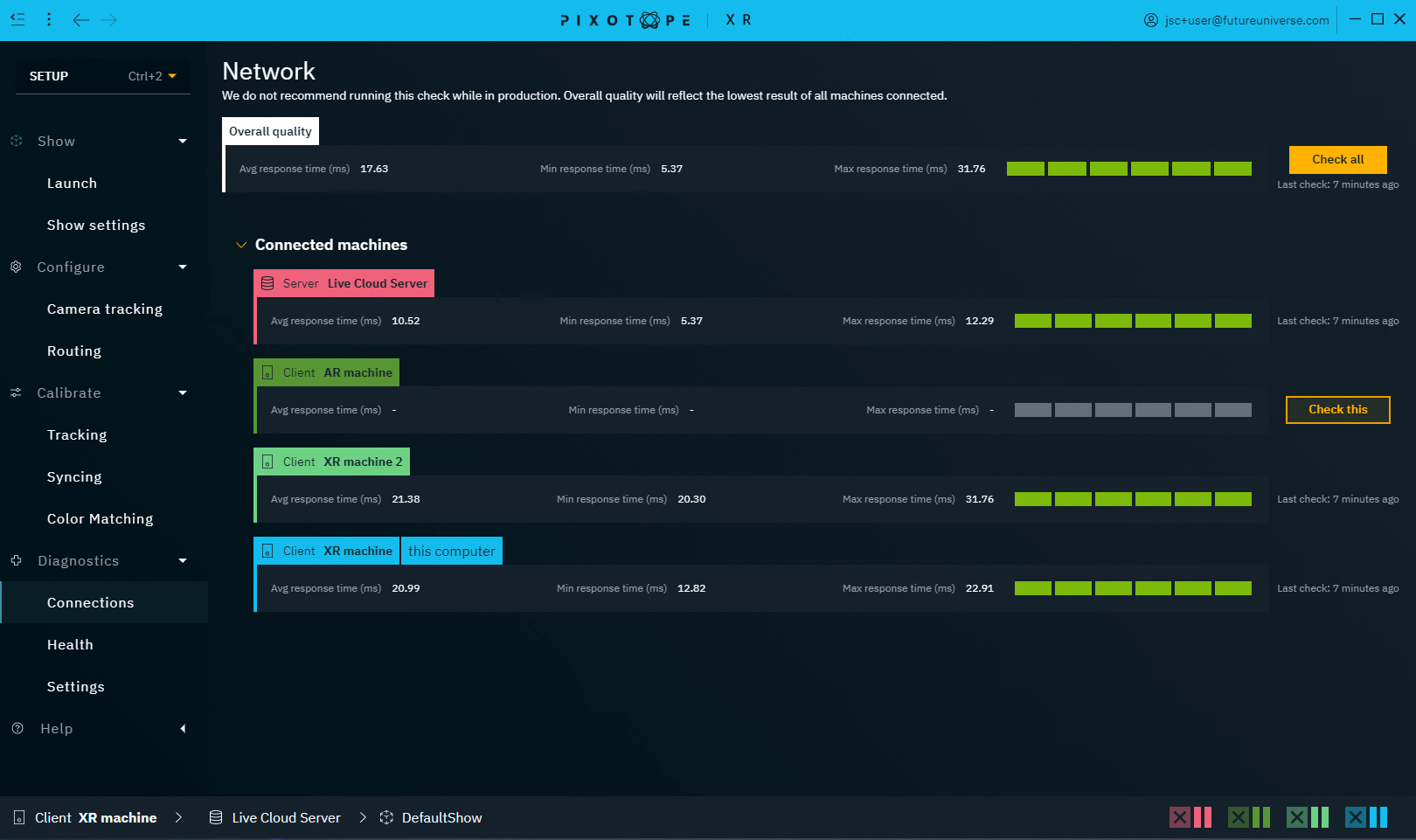

2. Go to the Diagnostics > Connections panel

3. Click

   • "Check all" to test the connection of all machines in the network

   • OR "Check this" to test only the connection to a single machine

Next step

Continue to Create, open and manage shows
