Pixotope specific blueprints
Scheduling Events
When running a production with Multi-machine syncing enabled using an LTC input, it is possible to schedule blueprint events to be executed at specific timecodes.
![](../../__attachments/3756687782/image%20(2).png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)

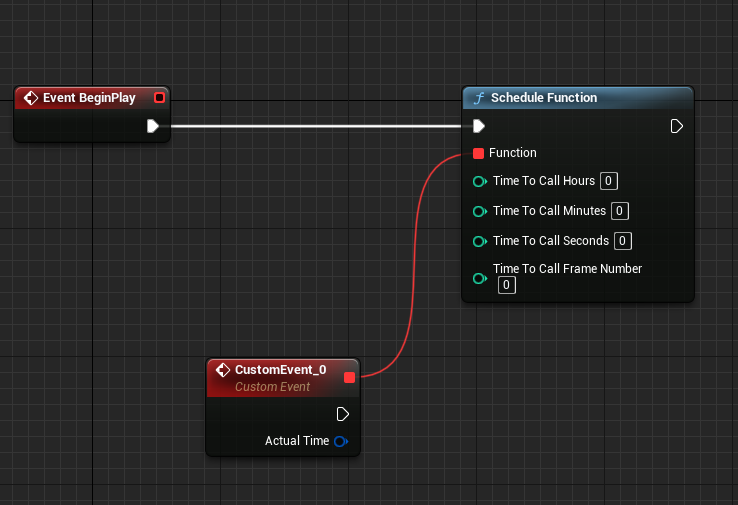

You can schedule your events at Begin Play using a Schedule Function node. Drag out from Function pin and select Add Custom Event from the list to create a new event. You can also split the Time to Call pin to type in the timecode the event should be executed at.
![](../../__attachments/3756687782/Screenshot%202023-08-02%20at%2010.17.56.png?inst-v=9a48e7bf-6403-4094-a858-ffe80445b919)

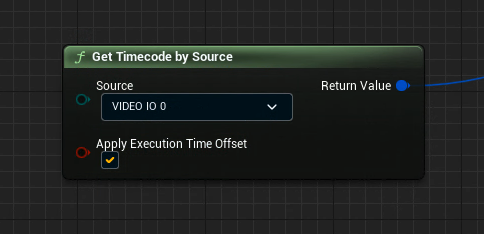

Use the Get Timecode by Source node to select which timecode to use and whether to apply the API delay you configured in the Director’s Sync panel.
