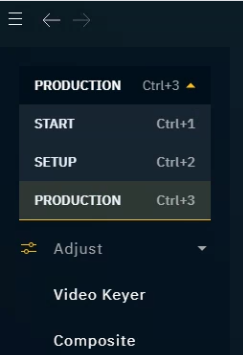

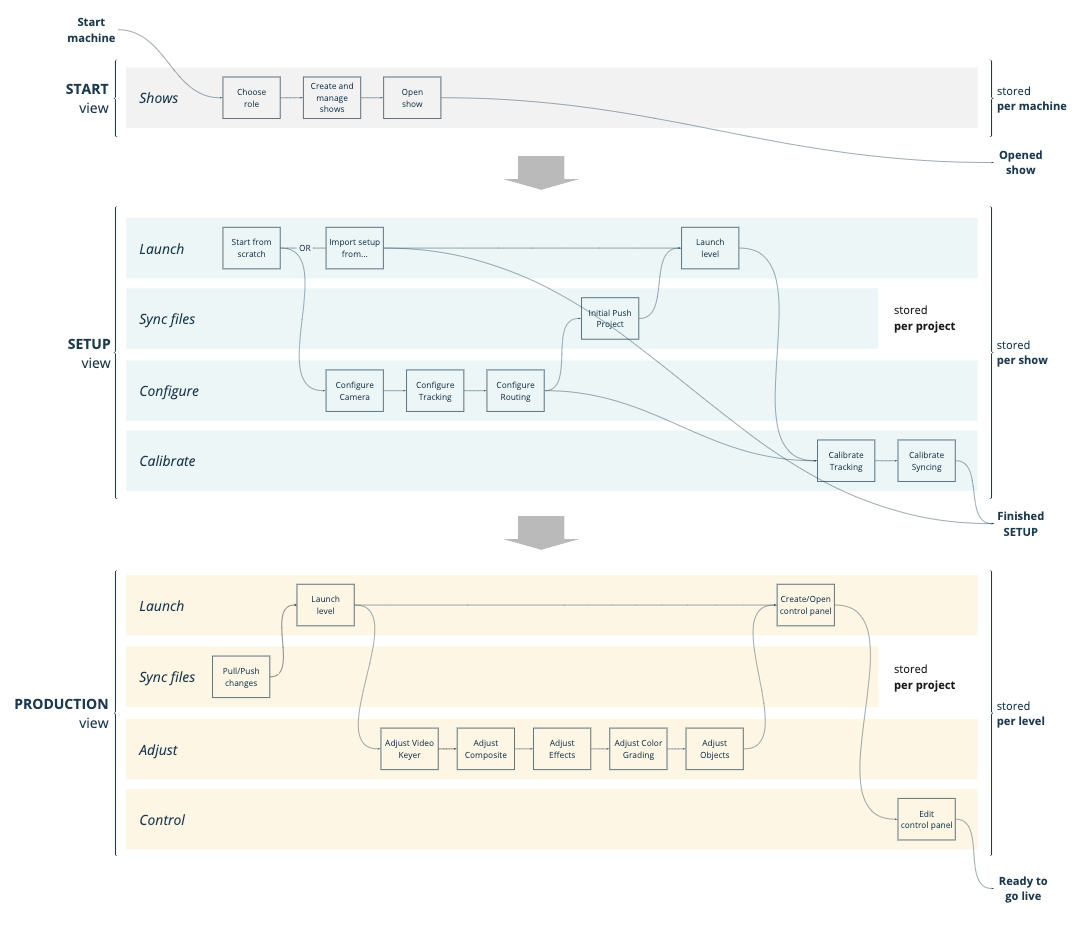

Pixotope Director is designed with a virtual production workflow in mind. It is built around the main steps, which are shown in the interface in 3 views. These can be switched in the left side menu:
-
using the dropdown
-
using
Ctrl+1,Ctrl+2,Ctrl+3
or can be cycled through using Ctrl+Tab (Shift+Ctrl+Tab).
START view
-
Create, open and manage shows
-
Change machine role and other machine specific settings
Learn more about Starting Director
SETUP view
-
Change project link and other show settings
-
Do an initial push/pull of your project to sync all the machines
-
Configure and calibrate your camera tracking systems, video inputs and outputs, and color matching
-
Launch levels and create custom control panels
Learn more about Setting up a show
PRODUCTION view
-
Push changes to your project and auto-pull them on the other machines
-
Launch levels and control panels
-
Adjust the video keyer, composite, effects, color grading, XR and/or every single object in your level
-
Control your running levels using custom control panels
Learn more about Making adjustments
The Help and Diagnostics sections are available in all views.
Learn more about What is stored where?
