Create, open and manage shows

The START > Storage > Shows panel displays a list of your local shows (show files) and allows you to open and manage shows.

Learn more about Show files - where your SETUP is stored

You can

  • Create new shows

  • Import shows

  • Open shows

    • Rename shows

    • Duplicate shows

    • Open show location

    • Open linked project location

    • Delete shows

For Client role: If you are on a client machine, the displayed shows are from the server machine (read-only).

Create new show

When creating a show we provide the following options:

Use case

Creates new project

AR template

Set up an AR level

Yes

VS template

Set up a VS level

Yes

XR template

Set up an XR level (virtual window)

Yes

CG template

Using Pixotope CG

Yes

Empty

When a completely empty project is needed (no shader compilation necessary)

Yes

Existing project

When an existing project is provided


No project

When the project is added at a later stage


Create a show from an existing project

  1. Click "Create new show" on START > Storage > Shows

  2. Select "Existing project"

  3. Choose the Project location

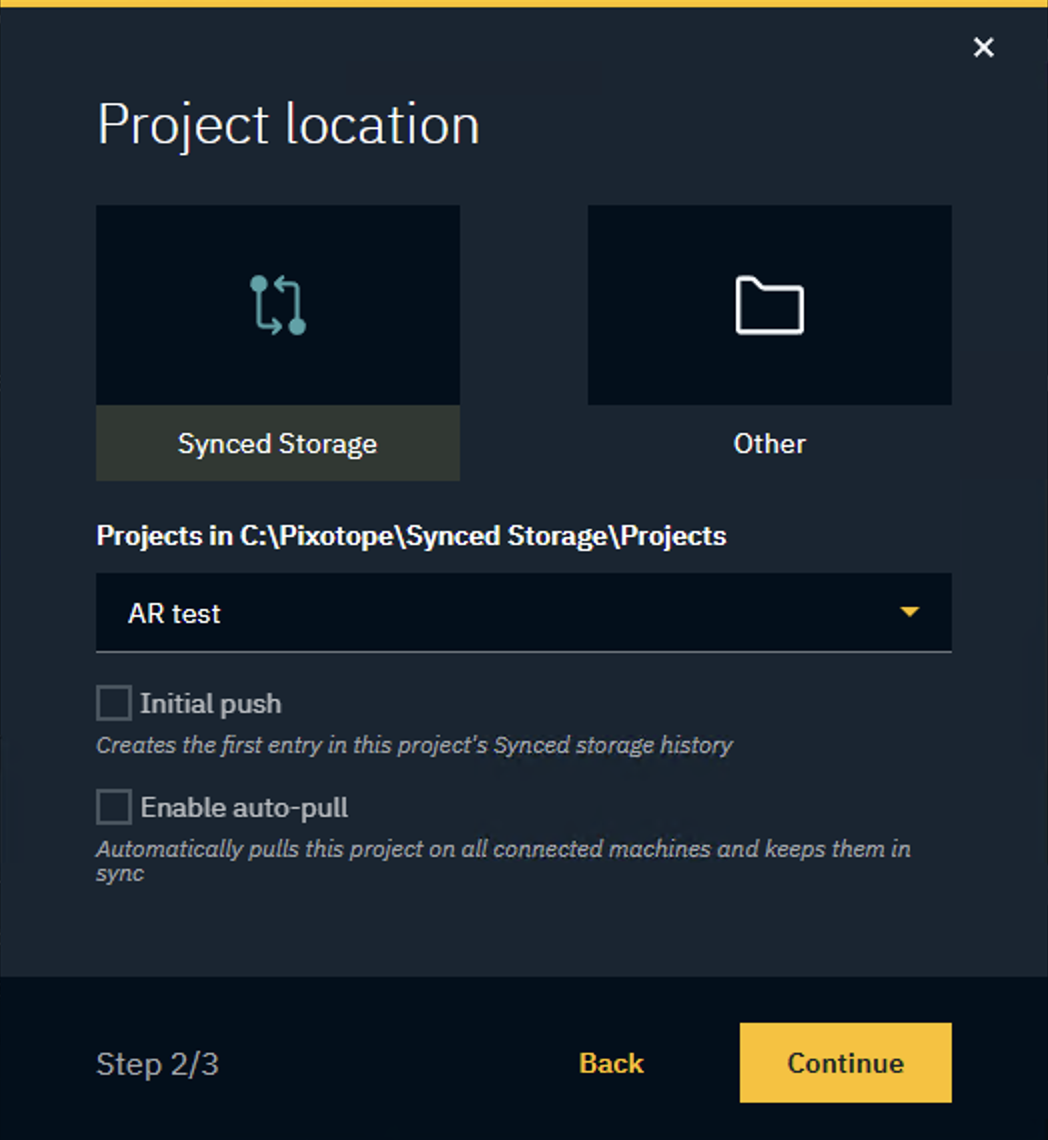

    Screenshot 2025-06-19 at 10.14.12.png


    • From synced storage

      • Choose from a list of synced projects (Synced Storage/Projects)

    • OR from another location

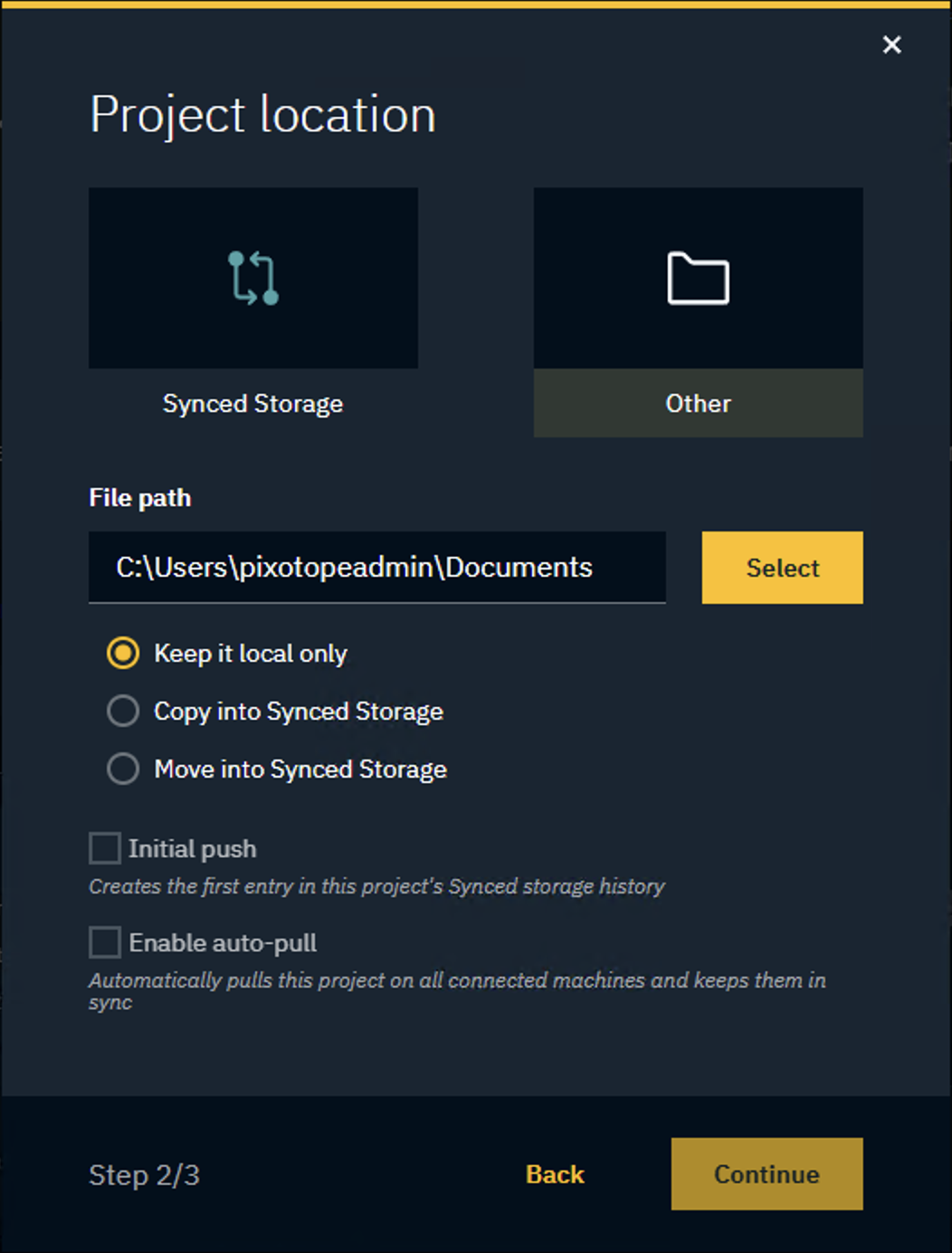

      Screenshot 2025-06-19 at 10.14.55.png


      • Click "Select" and browse to the .uproject file of the project which should be linked

      • Choose to

        • Keep it local only to not use Asset Hub for syncing

        • Move or Copy into Synced Storage whether to move or copy the project into Synced Storage/Projects

          • Optionally, select "Initial push" and/or "Enable auto-pull"

Learn more about Initial syncing of a project

  1. Name your show and click "Create show"

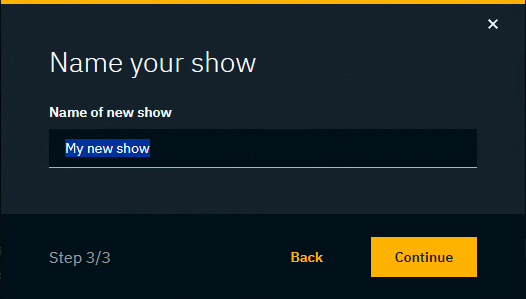

    Screenshot 2023-11-17 at 10.43.58.png


This creates a .pxshow file with a link to the existing project

Create a show from a template

  1. Click "Create new show" on START > Storage > Shows

  2. Select on of the templates (AR, VS, XR, CG or Empty)

  3. Choose where to save the project to

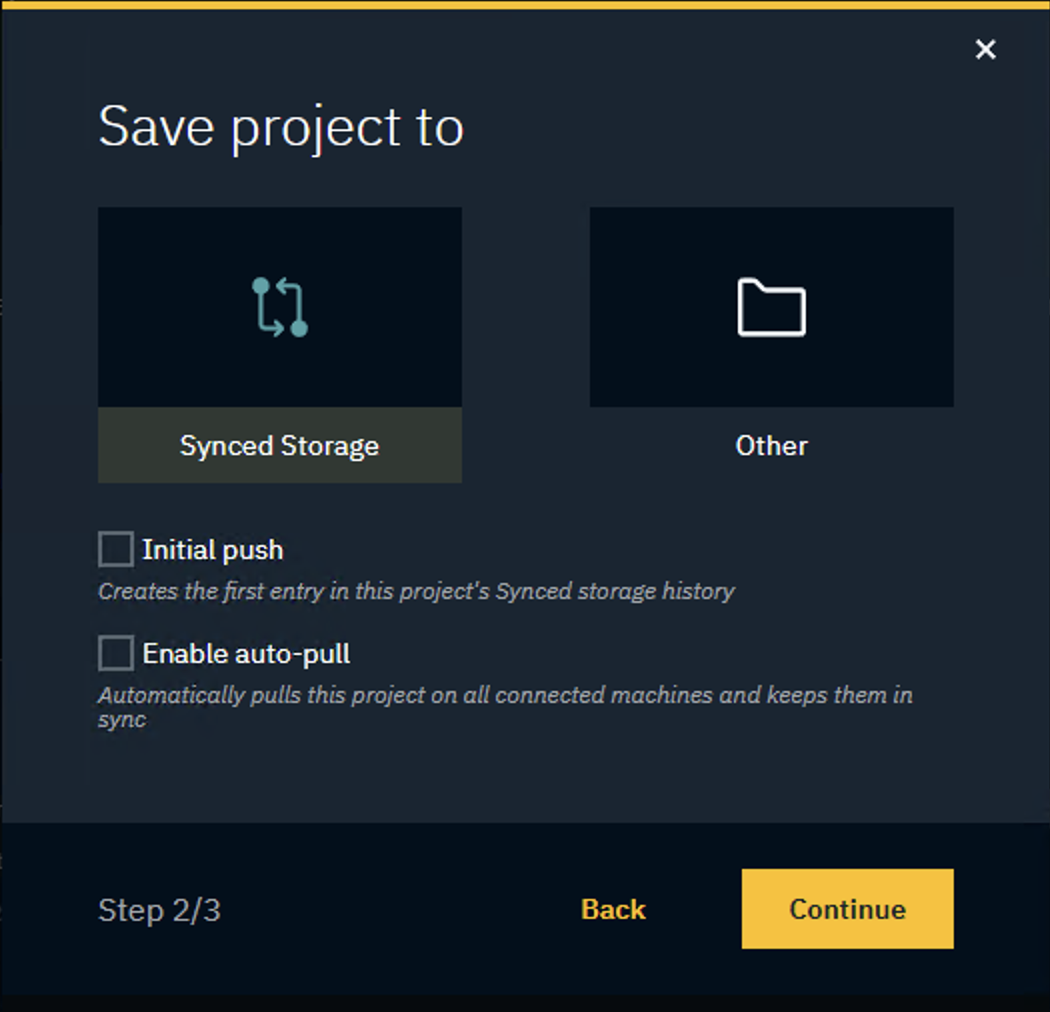

    Screenshot 2025-06-17 at 16.01.16.png


    • Choose Synced Storage, if your project should be synced

    • Choose Other, if the project should not be synced

      • Click "Select" and select the location where the new project should be created

  4. Optionally, select "Initial push" and/or "Enable auto-pull"

Learn more about Initial syncing of a project

  1. Name your show and click "Create show"

This creates

  • a new project (folder) in Synced Storage/Projects

    • using a project name complying to the Unreal engine naming restriction

  • a .pxshow file with a link to the new project

Create a show without a project

This can be useful

  • when the Client machine has the original project

  • if you want to create a show with your own default settings

Of course you can always also remove all linked projects from an existing show.

To create a show without a project

  1. Click "Create new show" on START > Storage > Shows

  2. Select "No project"

  3. Name your show and click "Create show"

This creates a .pxshow file without a linked project


Alternative method of creating a project

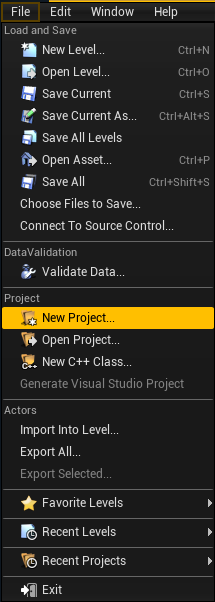

From the "File" menu in the Editor

  1. Choose "New Project"

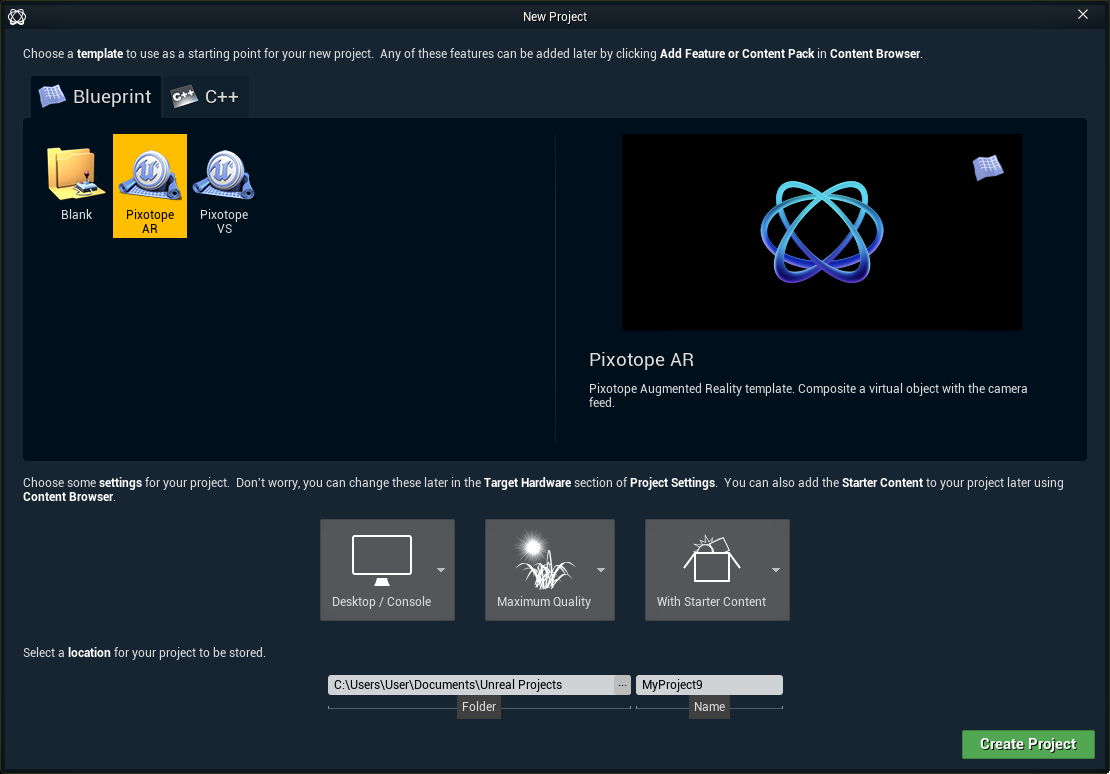

  2. Choose the "Blueprint" tab

  3. Choose a "Blank" project

  4. Choose "Desktop/Console"

  5. Choose "Maximum Quality"

  6. Decide whether or not you want to include the starter content

  7. Make sure the folder path is part of your Pixotope projects folder paths

  8. Choose an appropriate name

  9. Click "Create Project"

  10. Next steps: See Create a show from an existing project above





Import show file

To import a show file to your local storage, manually copy the show file into [Installation folder]\Local storage\Show files

Open a show

  1. Hover over the show you want to open and click "Open show"

For Server role: When a new show is opened, the show setup is loaded on all clients.

Rename, duplicate or delete a show

  1. Hover over the overflow menu (3 dots) to the right

  2. Select one of the options

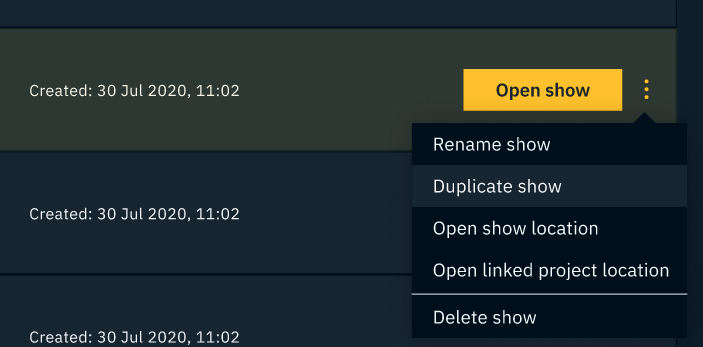

Screenshot 2021-05-28 at 13.25.36.png

Rename show

Renames the show file.

NB: Cannot be performed on an open show.

Windows file name restrictions apply → https://docs.microsoft.com/en-us/windows/win32/fileio/naming-a-file

Duplicate show

Duplicates the show file.

Delete show

Deletes the show file.

NB: Cannot be performed on an open show.

Open show location

Opens a file explorer with the show file selected.

Open linked project location

Opens a file explorer with the .uproject file of the linked project selected.

Next steps

Continue to
