Calibrate delays

Depending on your tracking and video pipeline, you can end up with delayed video or tracking data. To avoid Graphics elements sliding when the camera is panned, tilted or zoomed, we need to synchronize video and tracking data.

Configure frame matching method

  1. Select the frame matching method supported by your system - see available frame matching methods below

  2. For Timecode method

    1. Choose your primary timecode source

    2. Check for incoming timecode

Learn more about how to Configure timecode (LTC)

Frame matching methods

Frame matching methods explained

Method


Buffer size
(no frame matching)

This ensures a stable buffer size by deleting overflow, and by duplicating packets when the buffer size is too low.

  • Requires manual syncing

  • Will cause stuttering when tracking data is unstable

Timecode

This method uses a timecode source to auto lock video and tracking data.

Check out which of our Supported Tracking Protocols has timecode embedded.

The "Primary" timecode source in the machine header is used for auto locking.

Arrival Timestamp

This method is similar to Buffer size, but uses the video and tracking arrival timestamps to handle errors.

Automatically calibrate video and tracking delays

Learn more about how to Use automatic delay detection

Manually calibrate video and tracking delays

To manually calibrate the delay between video and tracking

  1. Pan the physical camera quickly and stop abruptly

  2. Check to see whether the previously placed calibration cone slips temporarily from the marked point

    • Use the -/+ buttons or the input field to change the delay

If the graphic moves first

If the camera feed moves first

Subtract video delay for the camera

If that is not possible, then add tracking delay

Add video delay for the camera

If that is not possible, then subtract tracking delay

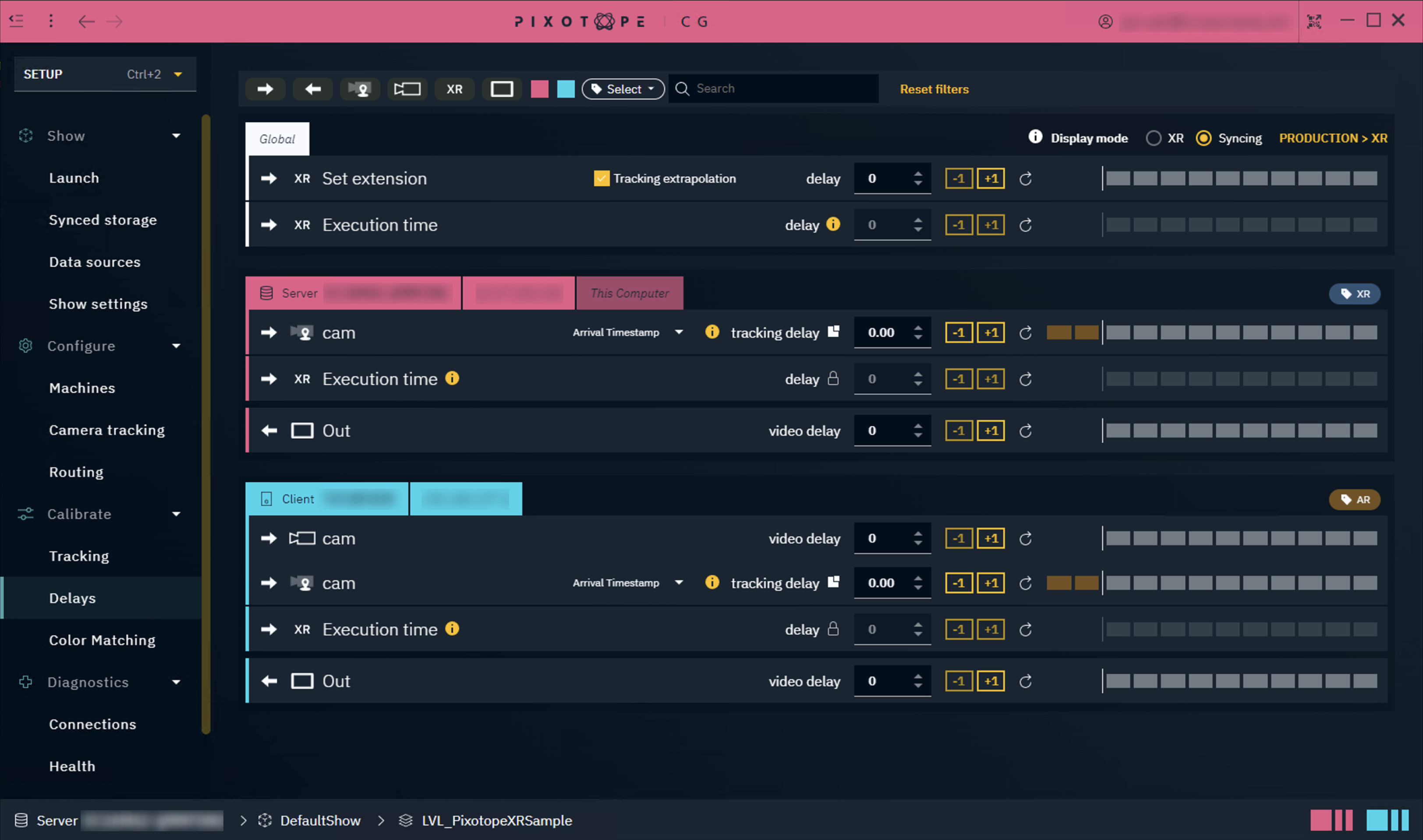

Use the filters on the top of the page to focus on the areas you are working on.


Available delays

Delay

Type


Global > Set extension (for AR)

Input

Delays the graphics independently while keeping graphics and tracking locked*

Global > Execution time

Input

Delays any API call to the engine*

Video delay

Input

Delays the video feed/Increases the video buffer size

Tracking delay

Input

Delays the tracking feed/Increases the tracking buffer size

  • Supports separate control of the Transform and Lens delay

  • Supports decreasing the default buffer size*

  • Supports subframe delay

Video delay

Output

Delays the video feed/Increases the video buffer size

  • Supports decreasing the default buffer size*

Audio delay

Output

Delays the audio feed/Increases the audio buffer size

* See Configure and calibrate multi-machine syncing for more details

Separate position, rotation and lens delay

In case the position, rotation and lens data provided by your tracking system is not in sync, you can edit the delays for them separately.

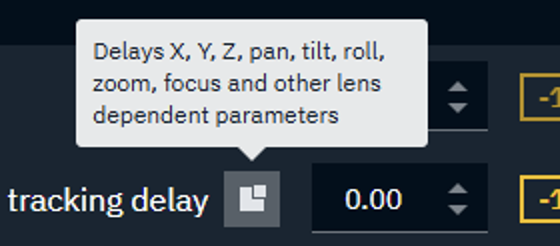

  1. Click on the Break icon to separate position, rotation and lens delay

    Screenshot 2025-10-31 at 14.47.50.png


  2. Control the tracking and lens delay separately

    • position delay: X, Y, Z

    • rotation delay: pan, tilt, roll

    • lens delay: zoom, focus and other lens dependent parameters

To unify them, click on one of the icons again.

Calibrate delays between XR and the AR set extension

The Set extension delay controls the delay between AR and XR.

You need at least one machine in the AR and one in the XR render group. Learn more about Render groups - AR, VS, AR+VS, XR

Looking for calibrating delays for XR with virtual set extension and a separate AR/VS machine?

Automatic AR/XR delay detection

  1. Launch a level (LIVE or Preview Live) on all AR/XR machines

  2. Point the AR camera towards the output of the LED wall
(at least 50% coverage)

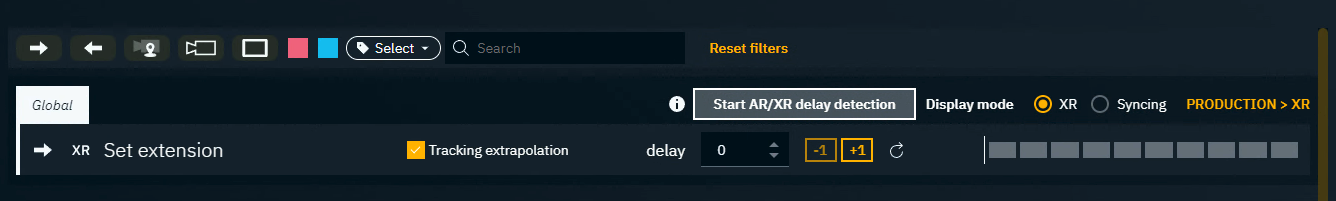

  3. Click "Start AR/XR delay detection” in the Global section of the Delays panel

  4. Optionally, check the result by switching to Syncing mode

    • Note that this step needs timecode!

Screenshot 2024-09-25 at 12.56.19.png

Manual AR/XR delay detection

  1. Launch a level (LIVE or Preview Live) on all AR/XR machines

  2. In the Global section of the Delays panel change Display mode to "Syncing"

    • This can also be done on the PRODUCTION > XR panel

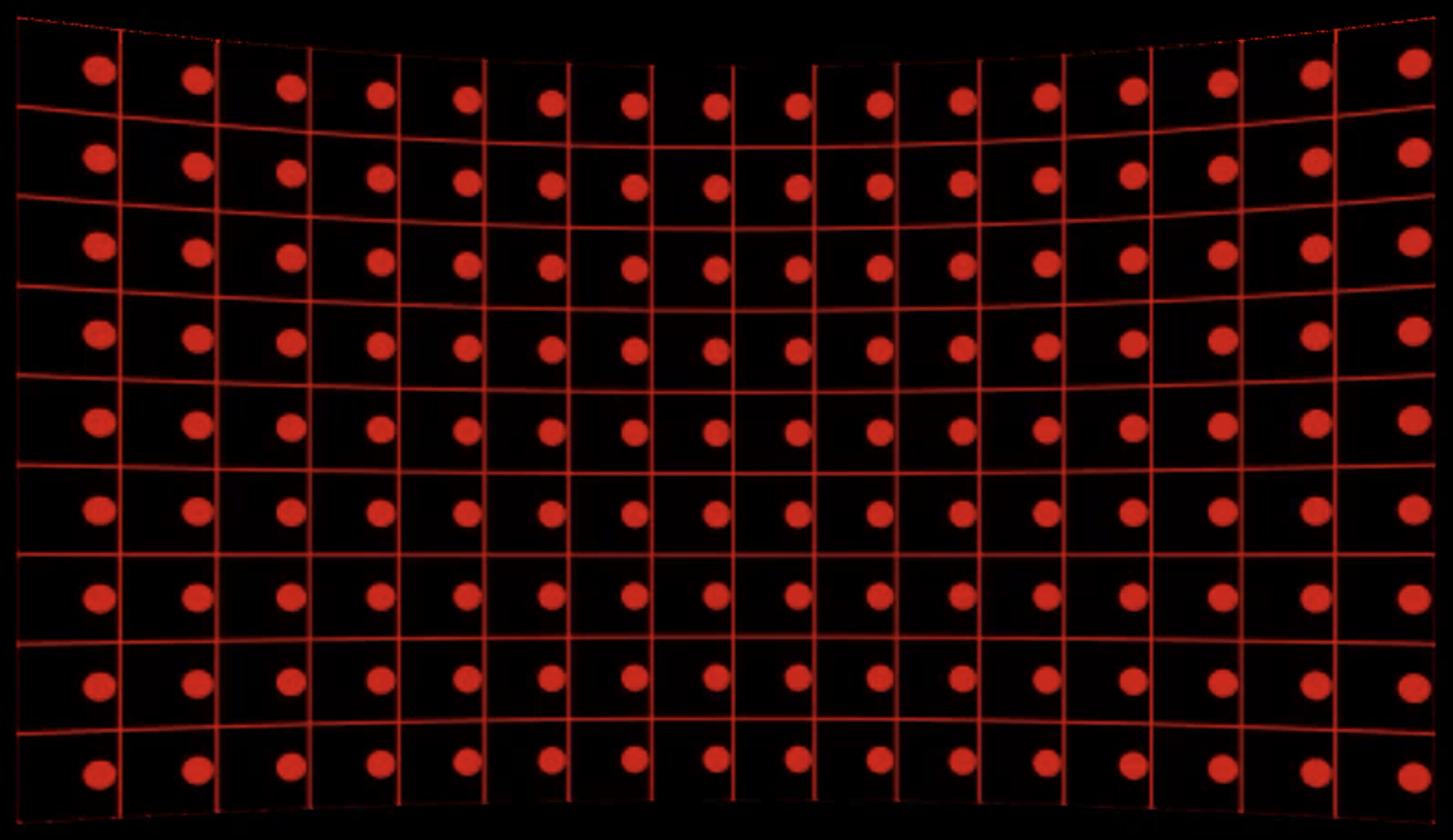

  3. Rotating shapes are shown on both the AR and the XR machines

    • On XR machines/LED wall these are red, on AR machines they are green

      Screenshot 2024-05-27 at 13.58.54.png


  4. Manually adjust the Set extension delay until the shape movements match/overlap and appear yellow

Timecode and a Digital Twin actor are needed for this to work. Learn more about how to Configure timecode (LTC) and Calibrate XR alignment - Digital Twin XR

Calibrate delays for a multi-machine setup

Learn more about how to Configure and calibrate multi-machine syncing
