Configure machines

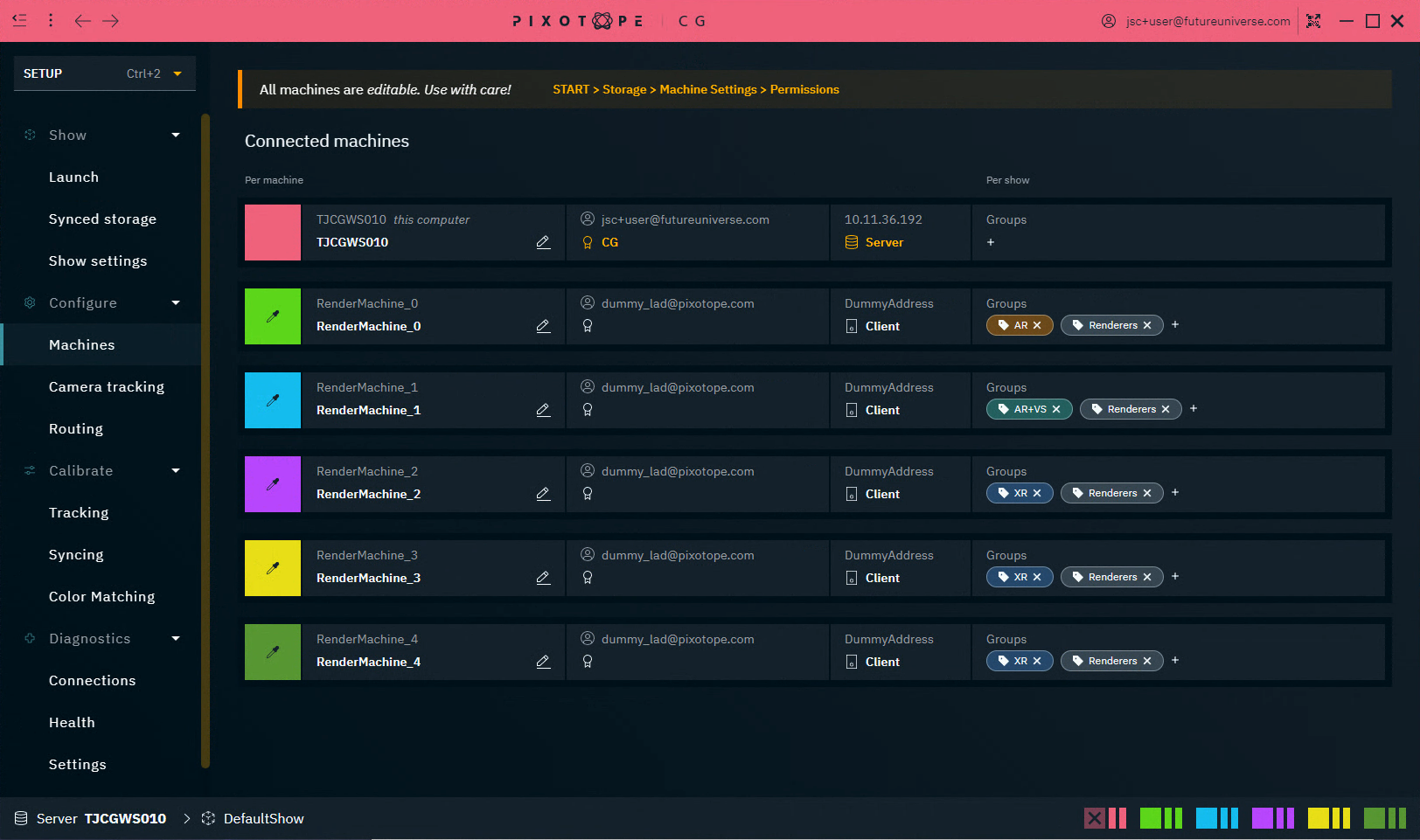

The Machines panel allows you to view and configure your machines from a single panel.

Screenshot 2023-09-26 at 09.41.57.png

It shows all connected machines and their following settings:

Editable across machines

Scope

Machine name

Local only

Per machine

Display name

Yes

Per machine

Display color

Yes

Per machine

Logged in user

Local only

Per machine

License

Local only

Per machine

IP address

Local only

Per machine

Network role

Local only

Per machine

Groups/Render groups

Yes

Per show

Change name and color

  1. Click on the colored box to change the display color

    • Note: The Server’s color can not be changed

  2. Click on the Edit icon of the machine name to set a display name

If editing is not possible, check the permissions level of your machine. Learn more about Permissions - affecting SETUP

These settings are the same as the one set in machine settings

Change groups

Add machines to groups to

  • force specific render or feature behaviour

  • OR to be able to address them collectively

Every render machine needs to have a Render group set!

It sets the Compositing Type in the Editor > Pixotope World Settings > General for every launched level.

Learn more about Render, feature and custom groups - AR, VS, AR+VS, XR

Add machine to existing group

  1. On the machine row, click on the + icon underneath "Groups" and select a Group

    Screenshot 2023-09-26 at 16.25.09.png

Remove machine from group

  1. Click the x icon on the group tag

Screenshot 2023-09-26 at 16.32.08.png

Add custom group

  1. Click on the + icon inside the Groups dropdown to add a Custom group

    Screenshot 2023-09-26 at 16.25.36.png

Remove custom group

  1. Click the delete icon inside the Groups dropdown

The custom group will be removed from all machines including the dropdown.

Show debug info on output

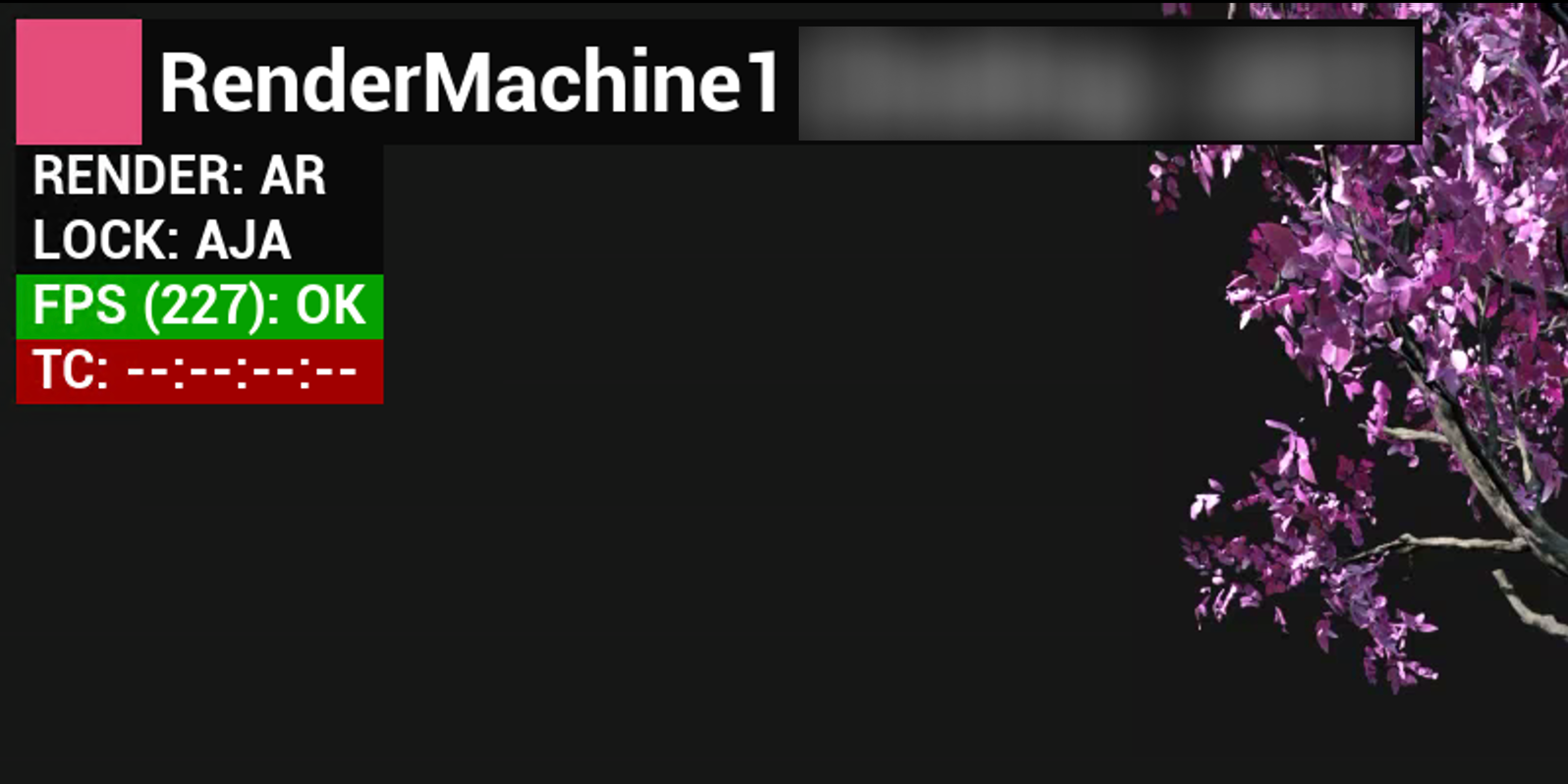

Allows to show one or more of the following information in the top left corner of the output:

  • Machine color, display name (and machine name)

  • Render group

  • Genlock

  • Performance (FPS) and status

  • Timecode and status

Do not use while you are ON-AIR!


Configure what to show

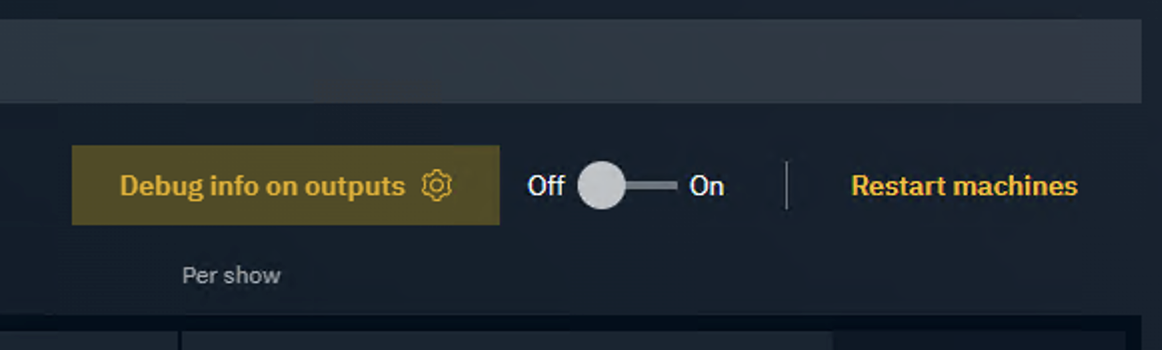

  1. Click the "Debug info on outputs" button

    Screenshot 2025-10-28 at 10.46.41.png

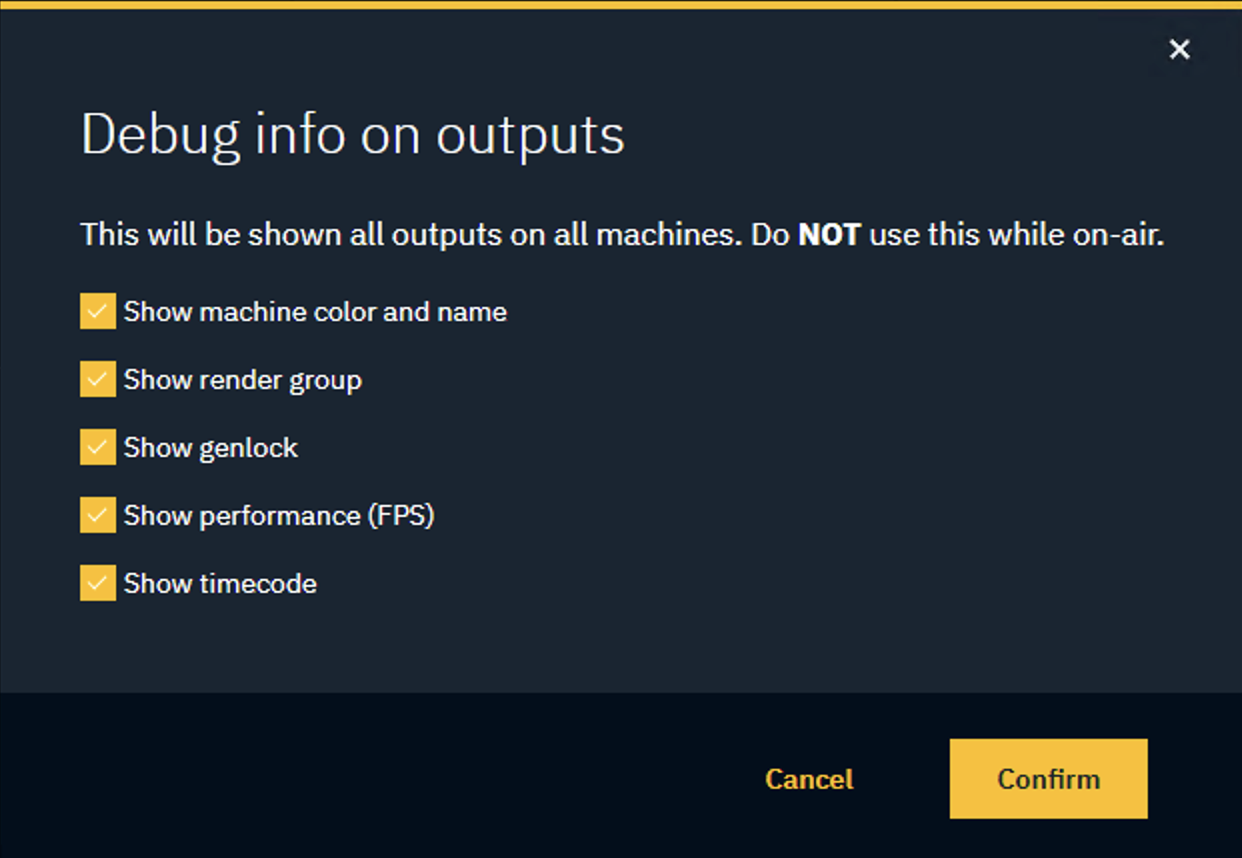

  2. Select what info to show

    Screenshot 2025-10-28 at 10.50.15.png


  3. Click "Confirm"

Show debug info

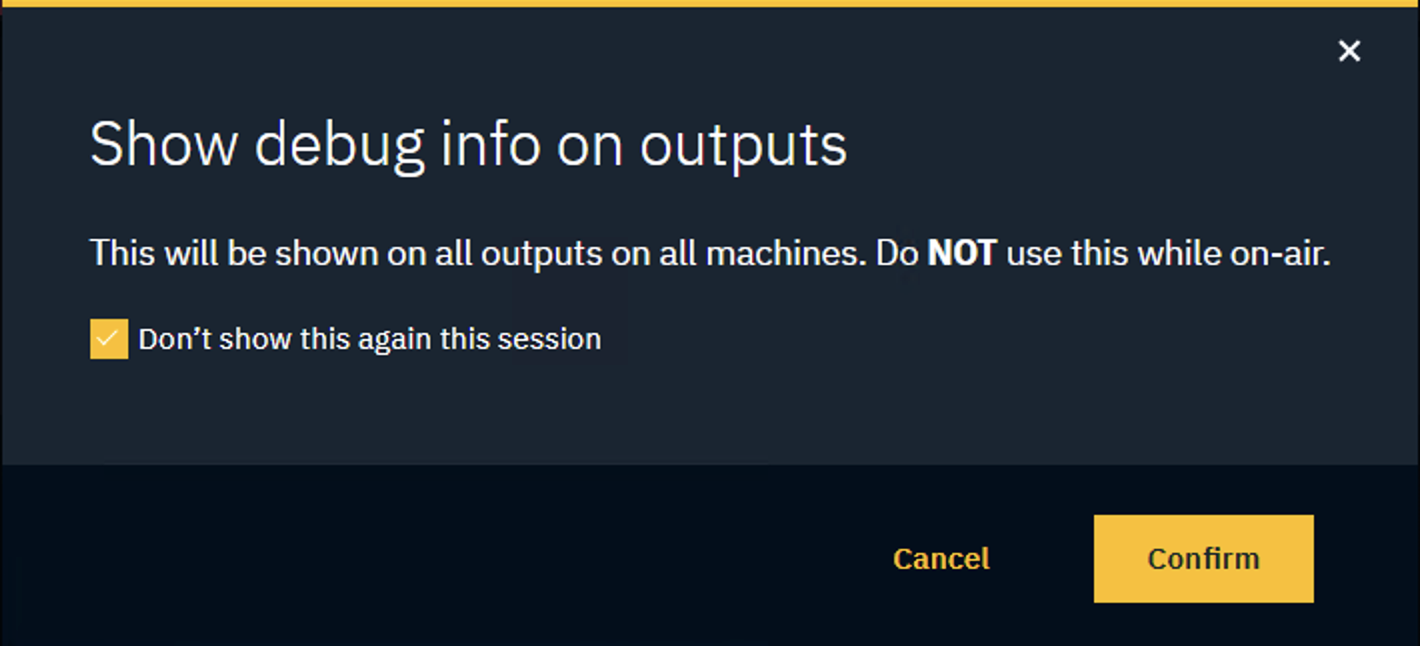

  1. Toggle On the switch next to the right of the "Debug info on outputs" button

  2. Click "Confirm"

    Screenshot 2025-10-28 at 16.48.32.png


Hide debug info

  1. Toggle Off the switch next to the right of the "Debug info on outputs" button

Restart machines remotely

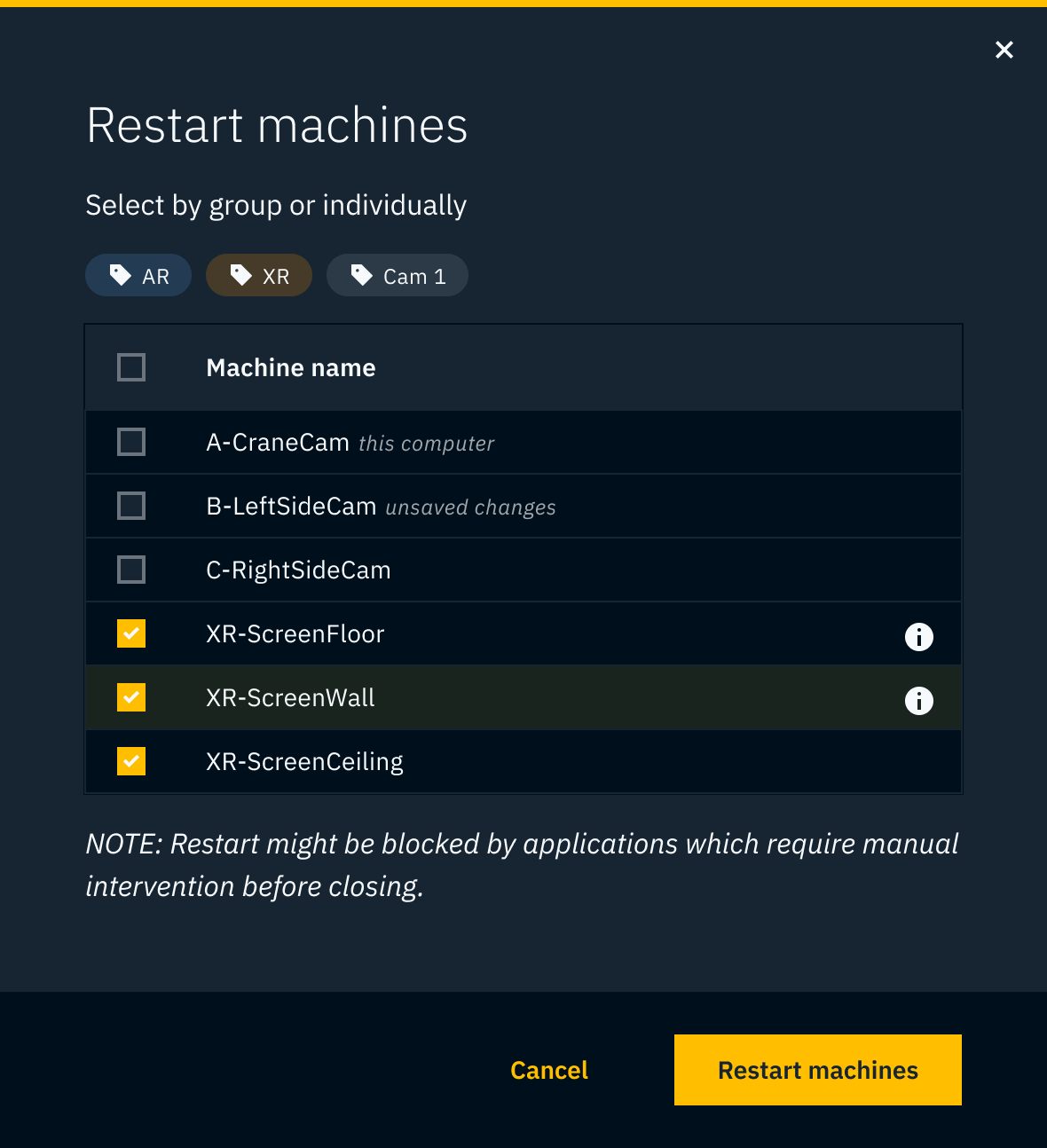

  1. Click on "Restart machines…"

This allows to restart any machine within the Pixotope network.

For any machine which is selected Launch Pixotope on startup will be enabled, so Pixotope Graphics will relaunch after restart. This can be changed in START > Machine settings.


Add Backup Server

Learn more about how to Use Backup Server (failover)
