Set up a virtual camera move

• Learn how to set up and control Pixotope's virtual cameras using Blueprints. This tutorial walks through the entire process, including configuring virtual cameras, creating Blueprints, setting up controls, and implementing logic for smooth camera movements.

Example setup

• See the level Blueprint of the level LVL_PixotopeVSSample of the project PixotopeCalibration

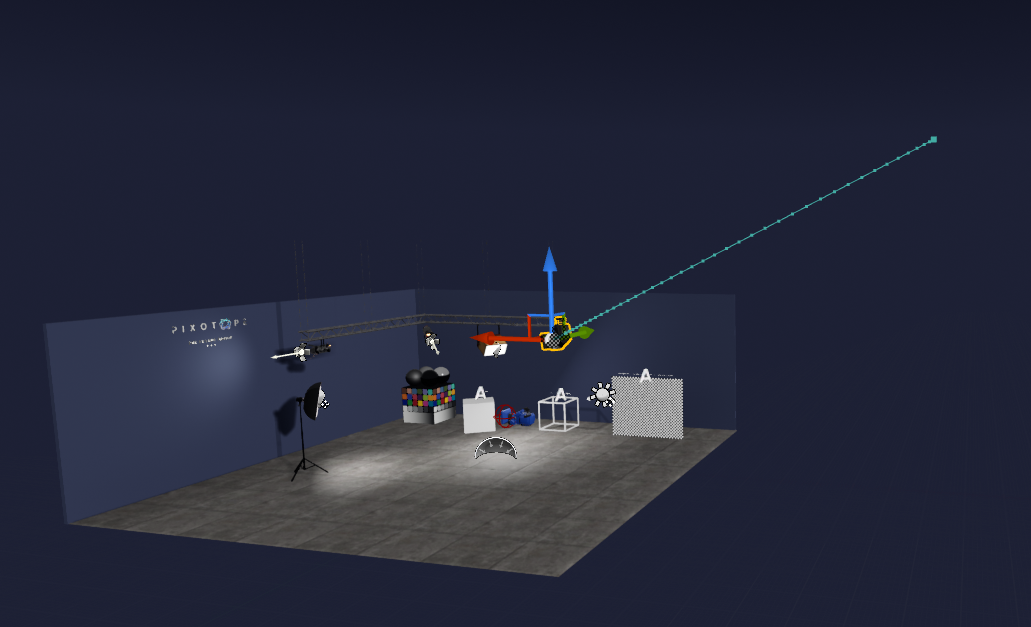

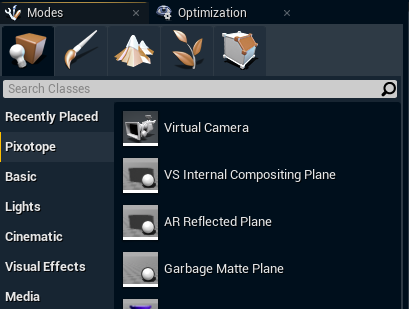

Create a virtual camera

Create a virtual camera in your level:

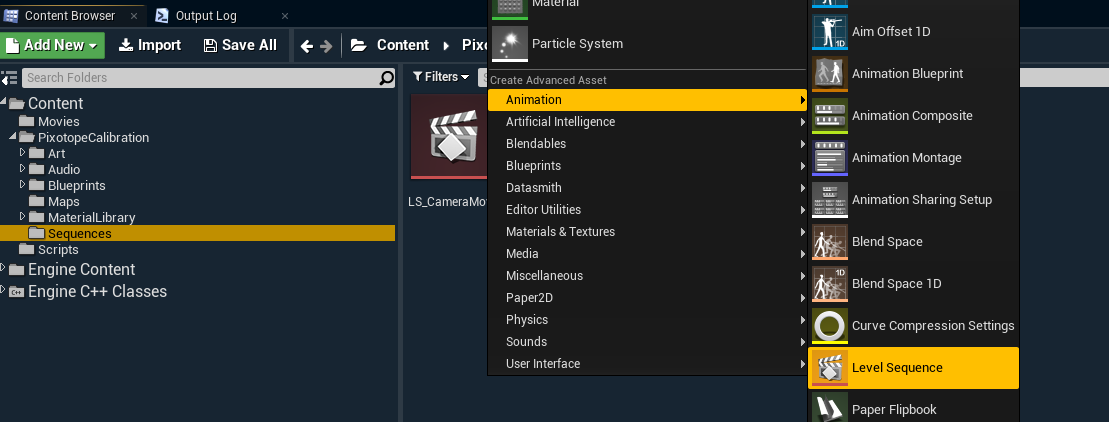

Create level sequence

Create a new level sequence:

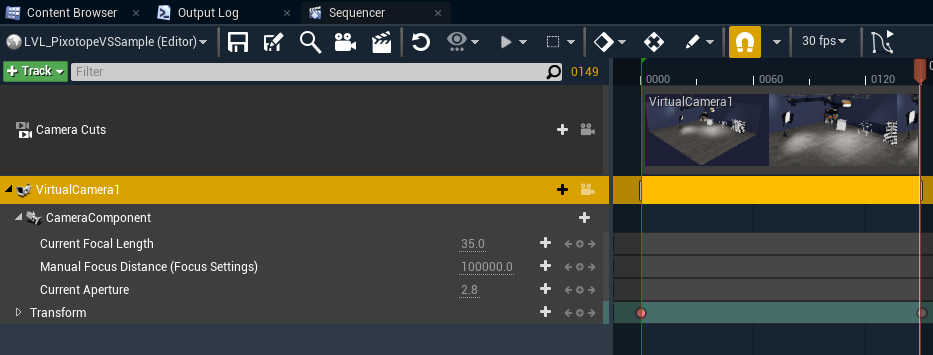

Animate virtual camera

Animate the virtual camera in the sequence:

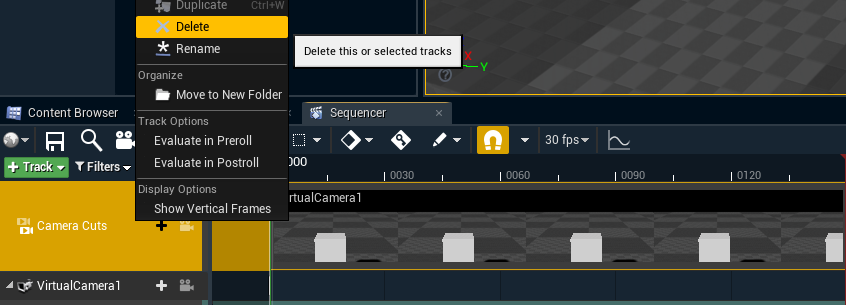

Delete the Camera Cuts track

Remove the cut track, as we will be blending, not cutting to our virtual camera:

Create Blueprint logic

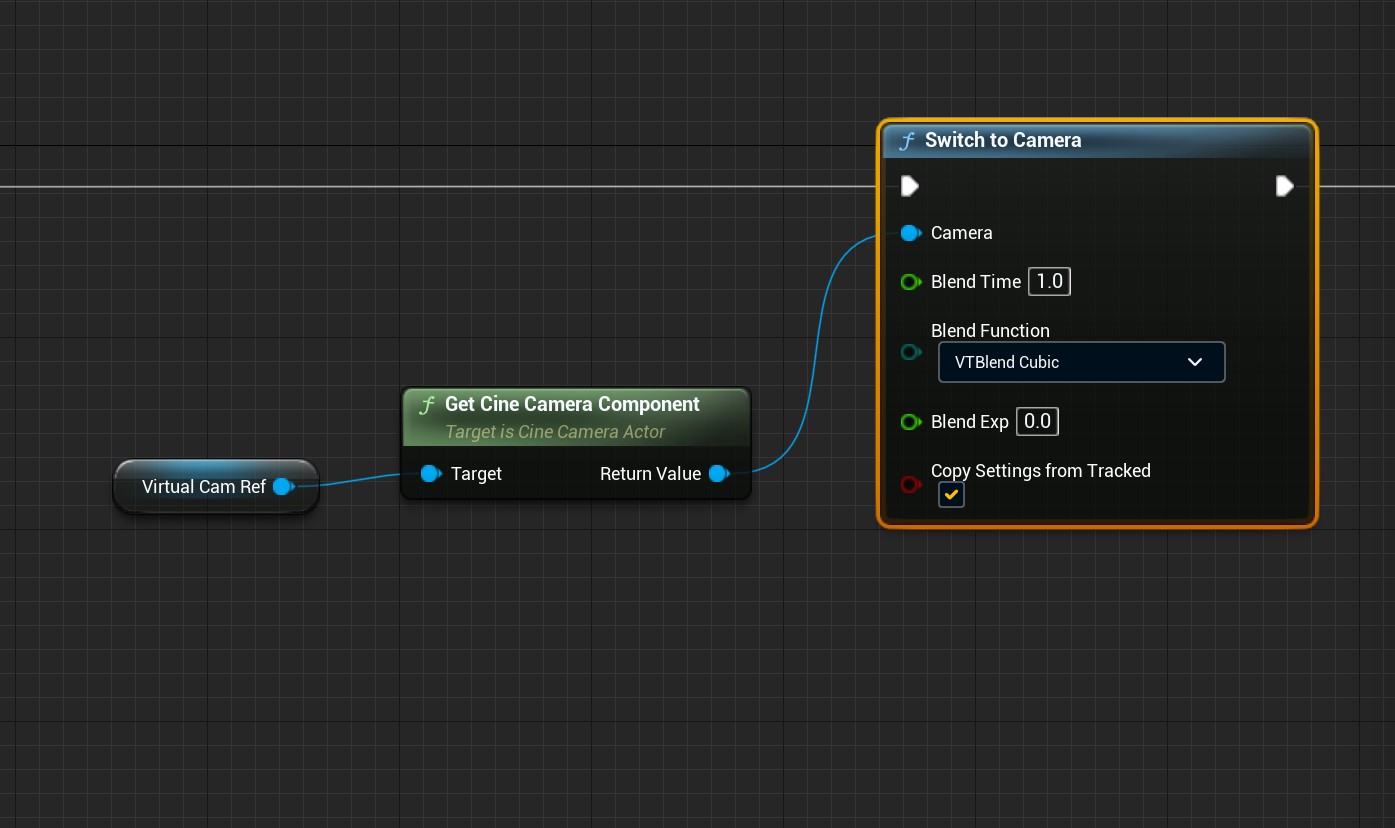

Create Blueprint logic for triggering the sequence:

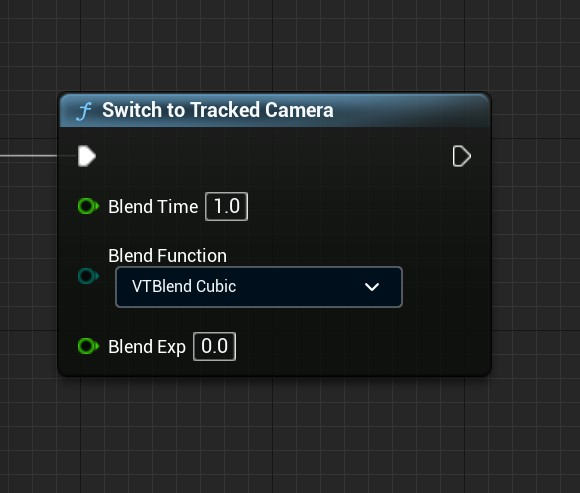

Create Blueprint logic for going back to the tracked camera:

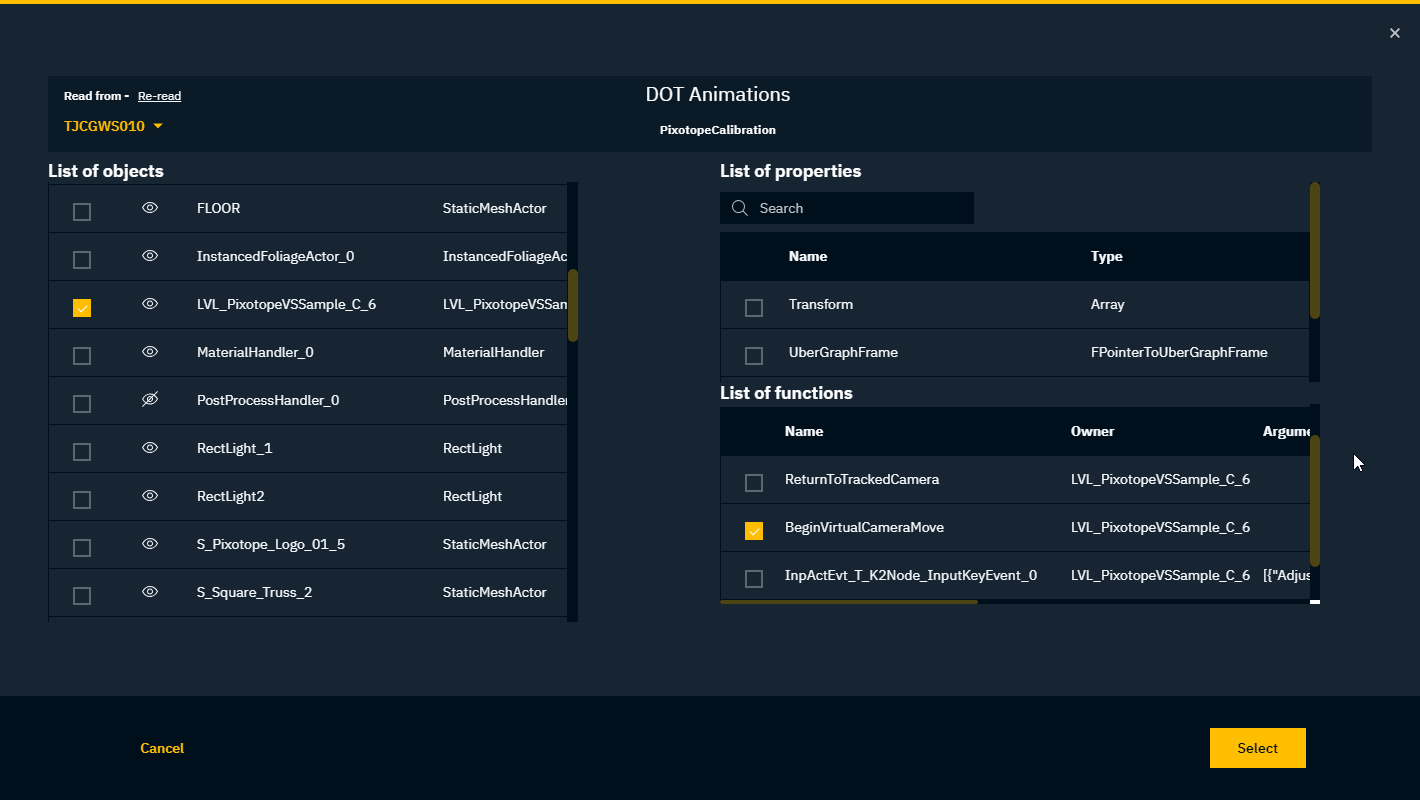

Create triggers in the control panel

Create triggers in the control panel and link them to the 2 Blueprint functions to trigger the animation between the virtual and the tracked camera from the control panel:
