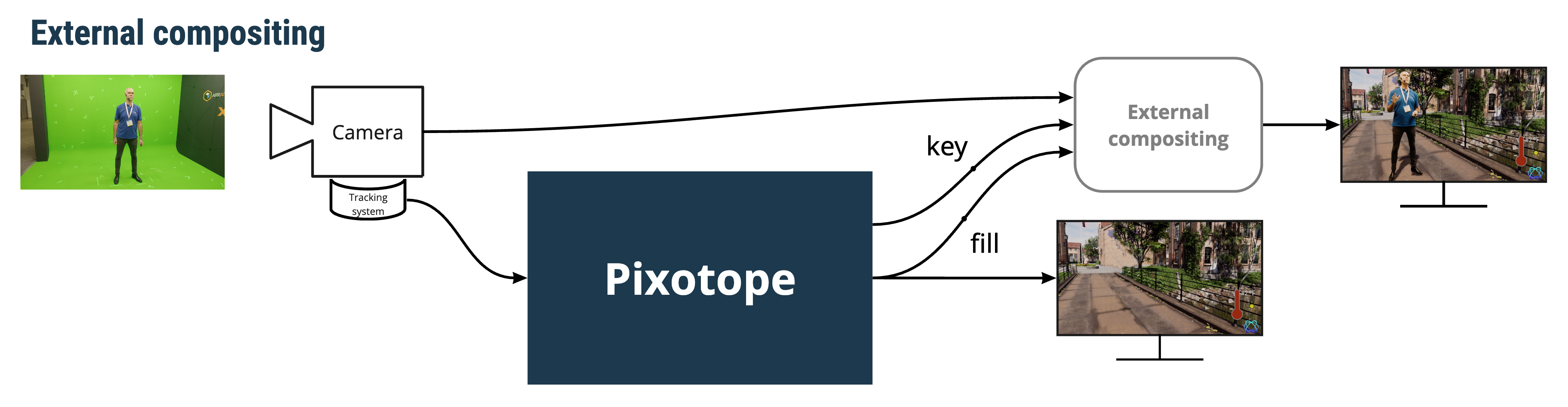

External compositing is a legacy compositing mode which allows you to do the compositing downstream.
Learn more about the different Compositing modes
Looking for how to Configure using an external keyer
Setup
In Director
-

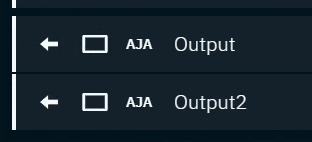

Add 2 Media outputs in the routing panel
-

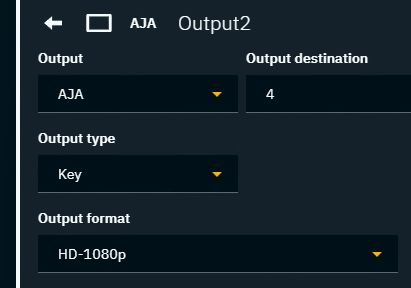

Change the Output type of the 2nd output to "Key"
In Editor
-

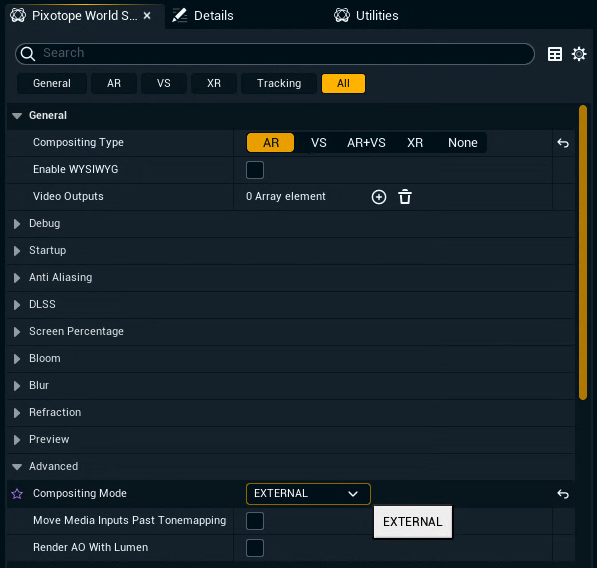

Go to Pixotope World Settings
-
Change the Compositing Mode to "External"
|
|
Make sure to not have separate Video Outputs set up! Using External compositing together with General > Video Outputs can bring unexpected results.
