Lock/Genlock is used to synchronize the camera and tracking data to provide guaranteed video output timing. There should be one common source for the Lock signal for all connected machines.
The Lock item is present on every connected machine and cannot be removed.
-

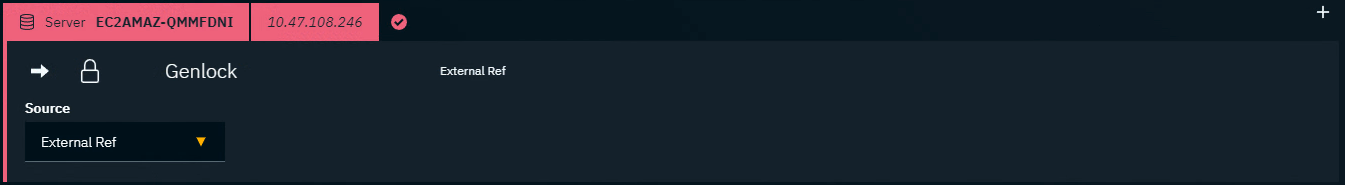

Set the Lock source
|
Freerun |
an internal Lock signal is generated Freerun does not guarantee synchronisation with other machines. A warning is shown, if more than 1 machine with configured Routing (input and output routed) is connected. |
|
|---|---|---|
|
NDI |
NDI source |
The Lock signal is derived from a specified NDI source |
|
SDI - AJA |
External ref |
The Lock signal comes from an analog external reference signal. Both Blackburst and Tri-level syncs are supported. |
|
Spigot number |
The Lock signal is derived from a specified external SDI input’s video clock. |
|
|
SDI - BMD |
External ref |
The Lock signal comes from an analog external reference signal. Both Blackburst and Tri-level syncs are supported. |
|
PTP (2110) |
Network adapter |
The Lock signal is derived from PTP clock. |
