Configure camera input switching | Pixotope Help Center

Switching camera video and tracking inputs externally (upstream)?

You only need to make sure that your tracking systems send unique Ids for the different cameras. Check CameraId support in Supported Tracking Protocols

You can switch the active camera system (video and tracking source) between the camera systems added to the groups.

Learn more about Camera Switching for XR/LED Workflows: A Practical Guide

Enable camera input switching

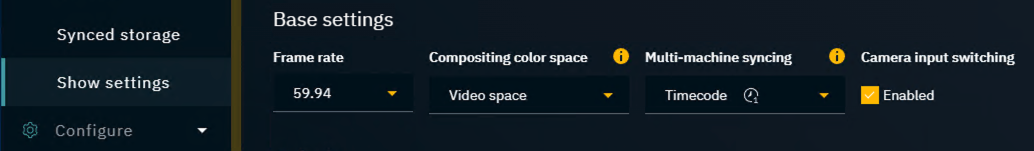

Enable “Camera input switching" in SETUP > Show > Show settings

Define camera system groups

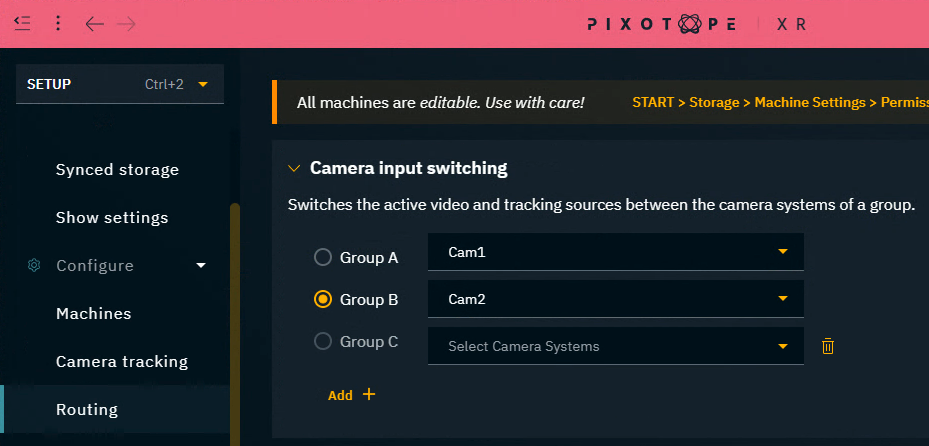

Per machine: Route the camera systems which should be switched between
Select the first camera systems to be in Group A
Select the second camera systems to be in Group B

Add/remove groups

Click on "Add +" to add an additional group
Click on the Trash can icon to remove the group

Switch between groups

When using camera input switching in an XR setup with set extension, checkout
Sync an XR wall with a virtual set extension

Using Director

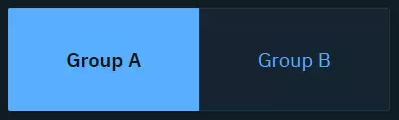

Switch using the Group A/Group B radio button in the Routing panel

Using a URL ( HTTP request)

Use a URL only HTTP request (via Gateway) where ParamNumber refers to the group.

Group A: ParamNumber=0
Group B: ParamNumber=1
Group C: ParamNumber=2
Group D: ParamNumber=3

http://localhost:16208/gateway/23.1.0/publish?Type=Call&Target=Store&Method=SetCameraSet&ParamNumber=1

Learn more about How to use Pixotope Gateway

Using the control panel (HTTP request)

Drag an InvokeURL system action onto a trigger widget
Paste the above HTTP request into the argument field

Learn more about System actions

OR download this ready made control panel to Switch between camera groups

Switch between camera groups.pxpanel

Using the control panel (API Log)

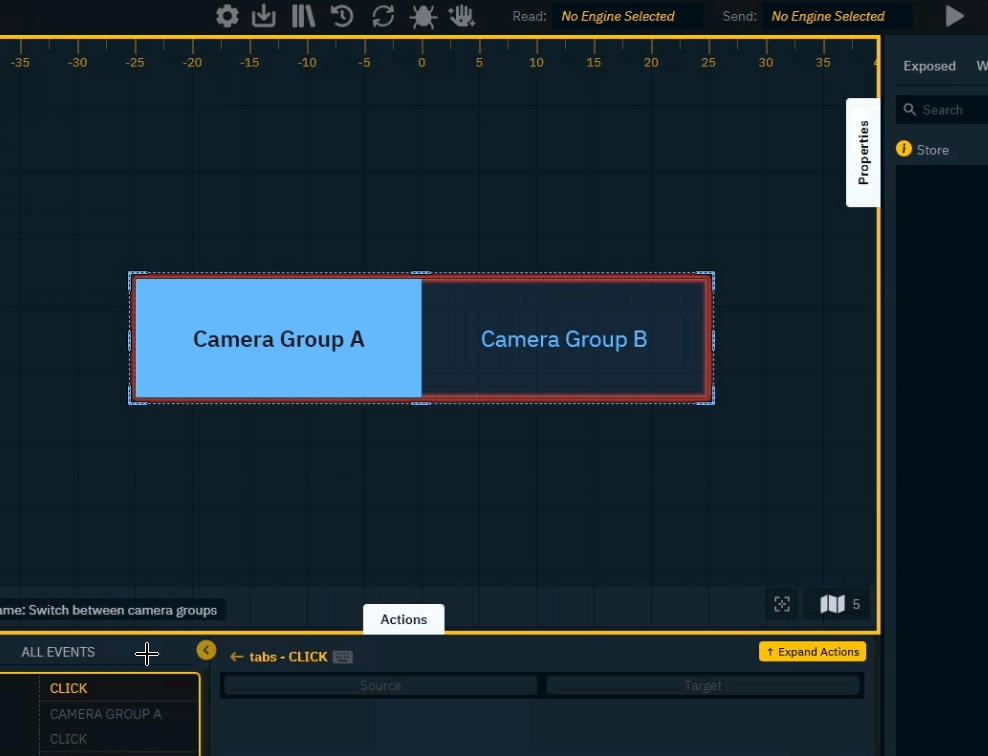

Press T in your control panel to bring up the Widgets toolbox
Select a tab widget
Click and drag on the canvas to place it

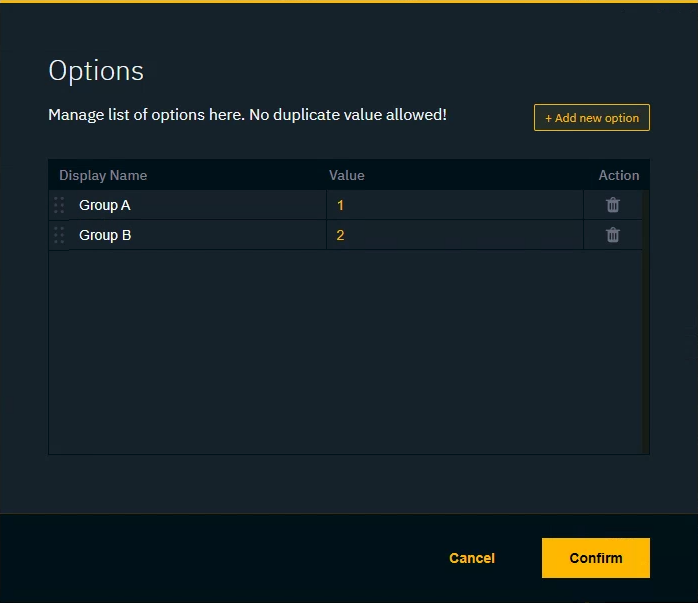

Change the Display Name on the tabs via Widget tab > Options
- Set the values to 1 for Group A and 2 for Group B

Listen to the Director action

Make sure that you have routed your cameras and defined the camera system groups before you listen to the action. For every change to on of the groups, the actions need to be updated!

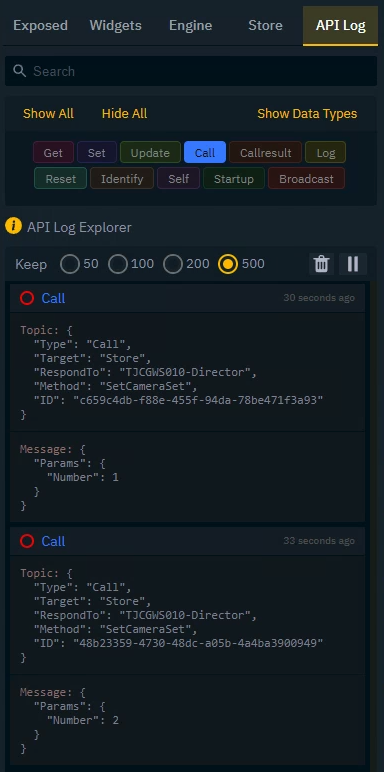

Select the API Log tab
Listen to the Set type by enabling the Set filter
- Click the x icon to clear the logs
- Click Play icon to start listening to messages

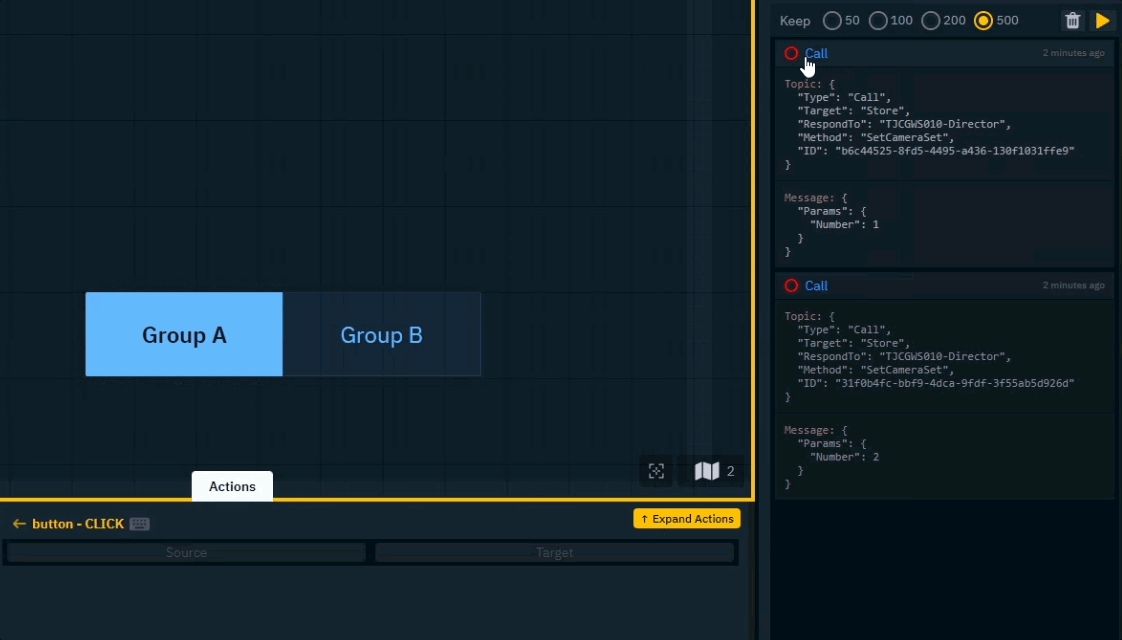

In Director: Switch from Group A to Group B and back again
Click on the Pause icon to stop listening to messages

Link the action

Double click the tab widget

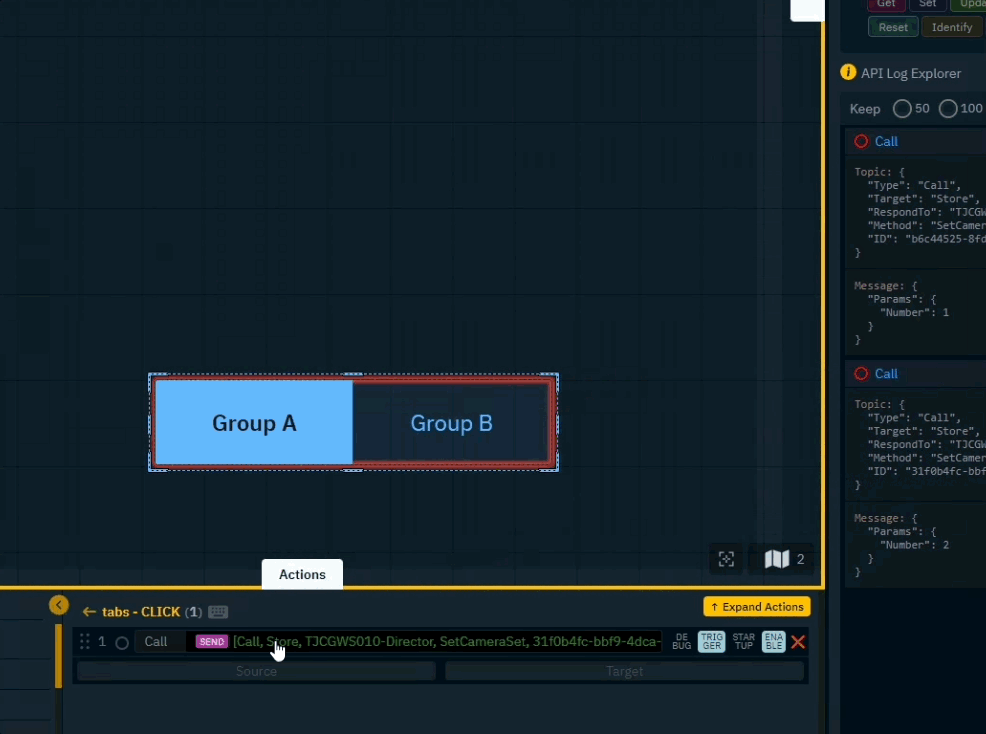

Drag either one of the Set messages onto the Source/Target of this action
Click the action to open the Code Editor
Add a dynamic argument called for example value and replace the number in the message so it looks like this:
```
{
  "Params": {
    "Number": "{{value}}"
  }
}
```

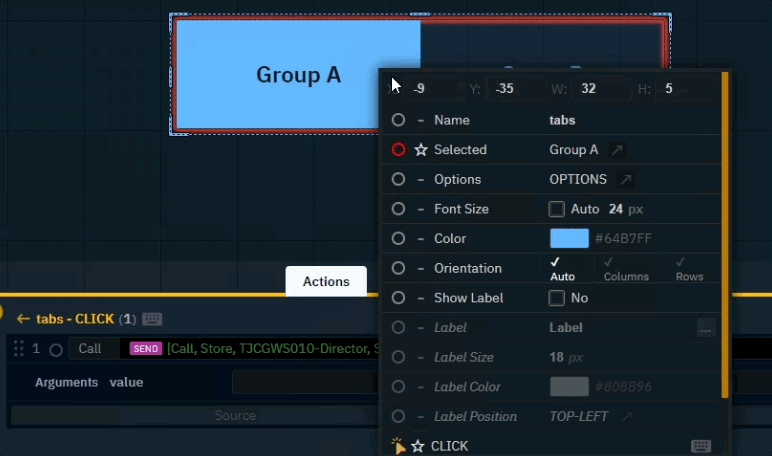

Right click the Tab widget and drag its Select value into the value argument of the action
Press R or the "Play" button in the header to try it out

If multiple camera systems are routed to one machine and none of them are part of any group, the first camera system is used.
