Example projects

Introduction

The projects are intended to give an introduction into various use cases, and, for the curious, a view into how more advanced setups are created.

All the projects come with a Custom Control Panel specifically for the project. These are examples of how to trigger actions in your projects through a simple yet powerful control system.

The contents of these zip files are the full Pixotope projects, containing everything you need to run them and their control panels. They also contain all the assets that have been created by our team.

Please refrain from using any of the content in these examples for purposes other than demo and training. You are encouraged to experiment and dissect as much as you like. (Please send us your tests!)

No commercial use is allowed with these assets!

Get started

Log in to your user account page on the Pixotope cloud → https://login.pixotope.com

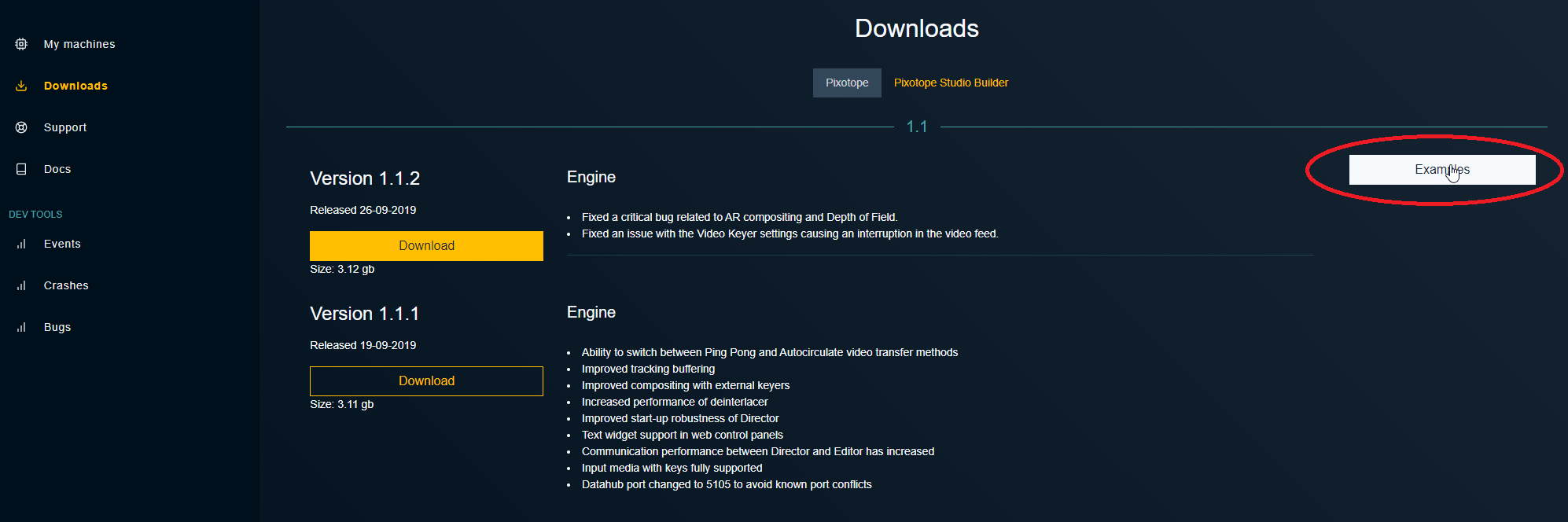

In the Downloads menu, click "Examples" for the appropriate Pixotope version (project files are not backward-compatible)
The projects can be downloaded individually (as zip files)
Extract the archives in a folder of your choice, e.g.
[My drive]:\[My Pixotope Projects]\PixotopeMascot
In Director: Click "Create new show" on START > Storage > Shows
1. Choose "from existing project"
2. Click "Select" and select the .uproject file of the project which should be linked
3. Optionally edit the name for the show (file)
4. Confirm by clicking on "Create new show"
After the show has been added, it will show up in the list of shows
Hover over the show and click "Open show"
- You are redirected to SETUP > Show > Launch
Hover over the level you want to launch and click “Launch in EDITOR”

Launching a level for the first time can take longer, as shaders and other elements have to be prepared.

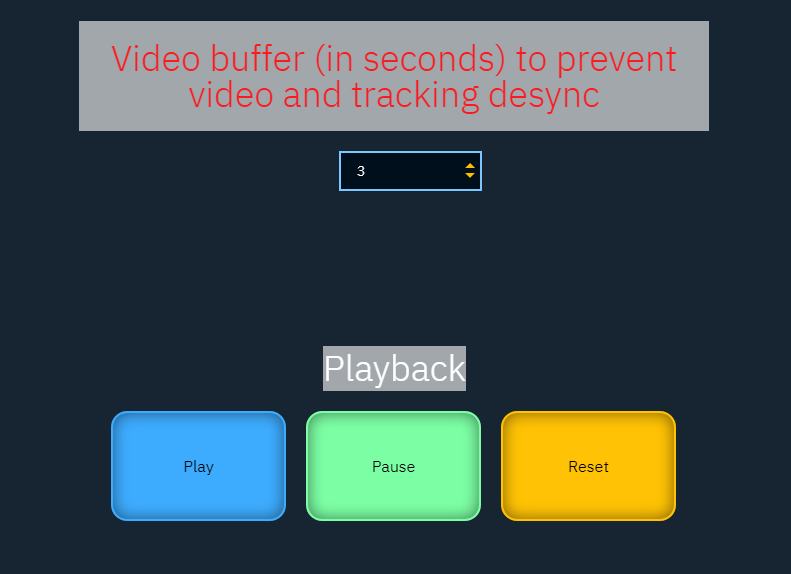

The control panels

With the included control panels you are able to control the actions set up in the level. We made them colorful and clear. Feel free to edit the panels and move things around to your liking, or even use them from your phone, tablet, laptop or similar by copying the URL from the hamburger menu, top left in the control panel page (you need to be on the same network).

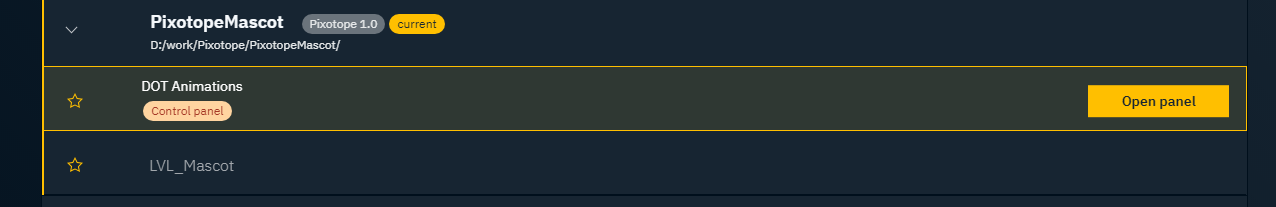

Open the control panel directly from the launch panel in Director by clicking the “Open panel” button

Some actions in the control panel only work in Preview Live or LIVE mode. Learn more about how to Run levels in Edit, Preview Live and LIVE mode

Description of projects

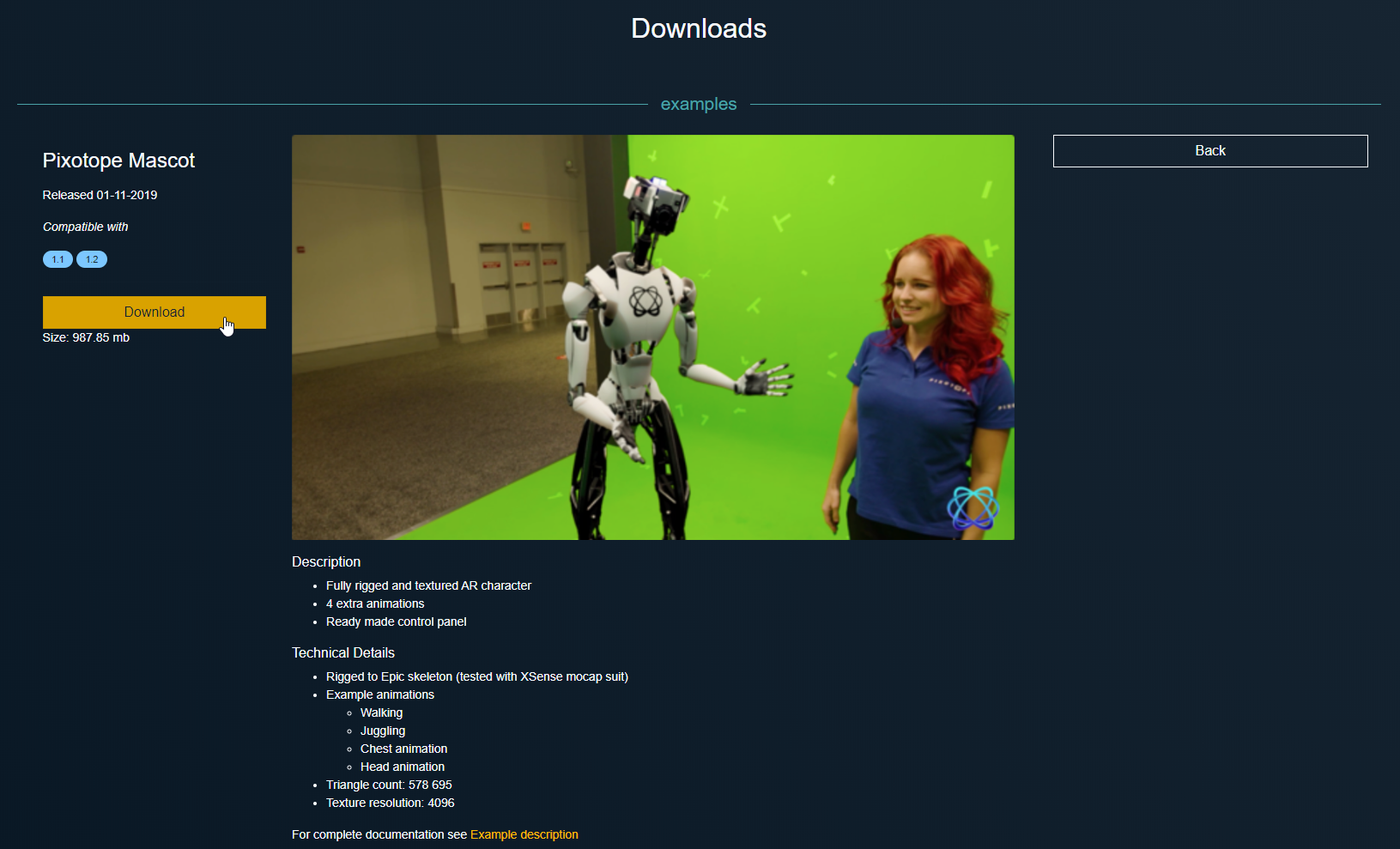

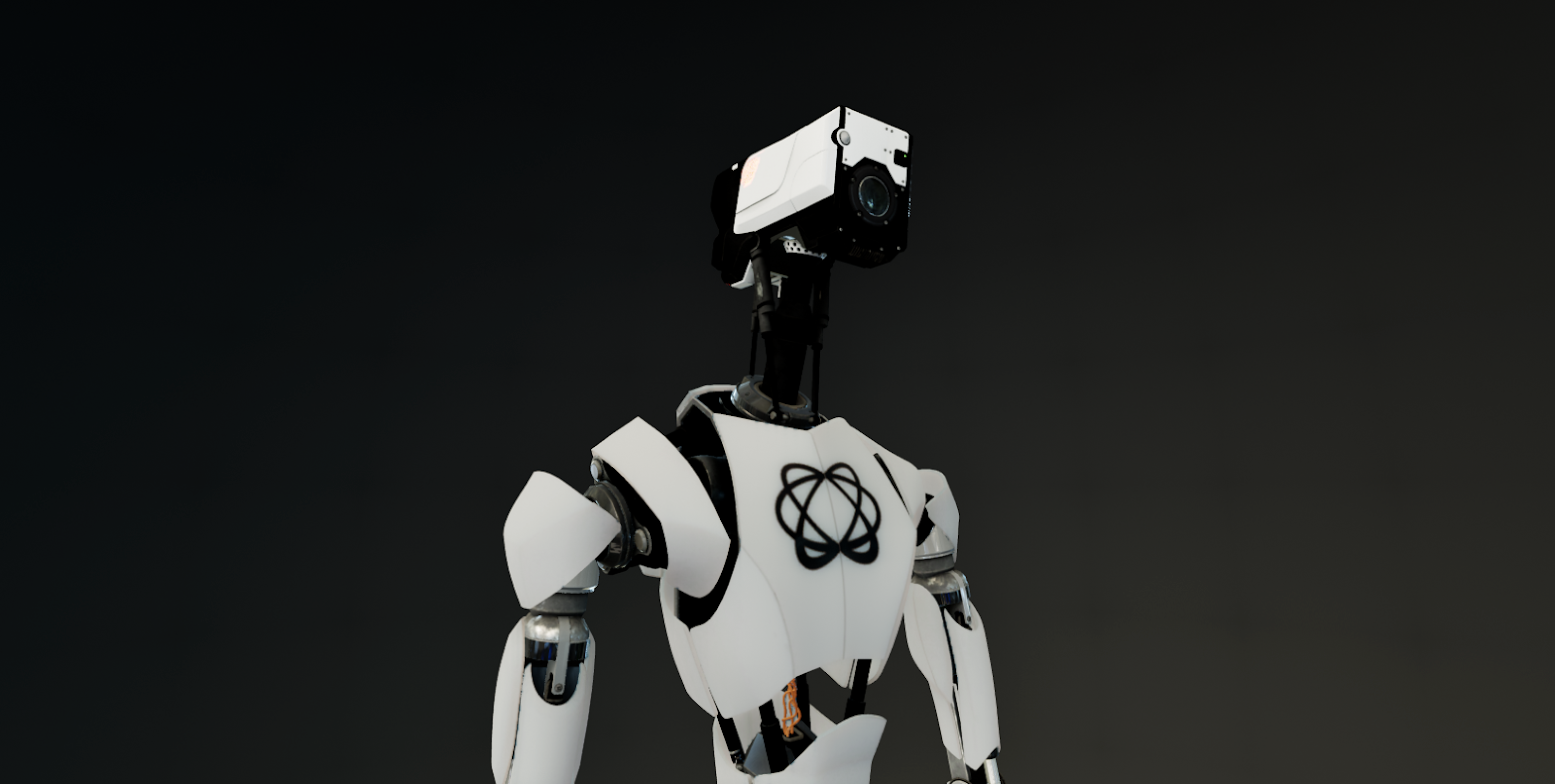

PixotopeMascot

Starring our beloved mascot character Dot, this project gives a good overview of how an animated AR character can be set up, as well as how it ticks.

Please let us know if you wish to drive him with live motion capture as well.

Level contents

Fully rigged and textured AR character
4 extra animations
Ready-made control panel

Technical details

Rigged to Epic skeleton (tested with XSense mocap suit)
Example animations:
- Walking
- Juggling
- Chest animation
- Head animation

Triangle count: 578,695
Texture resolution: 4,096

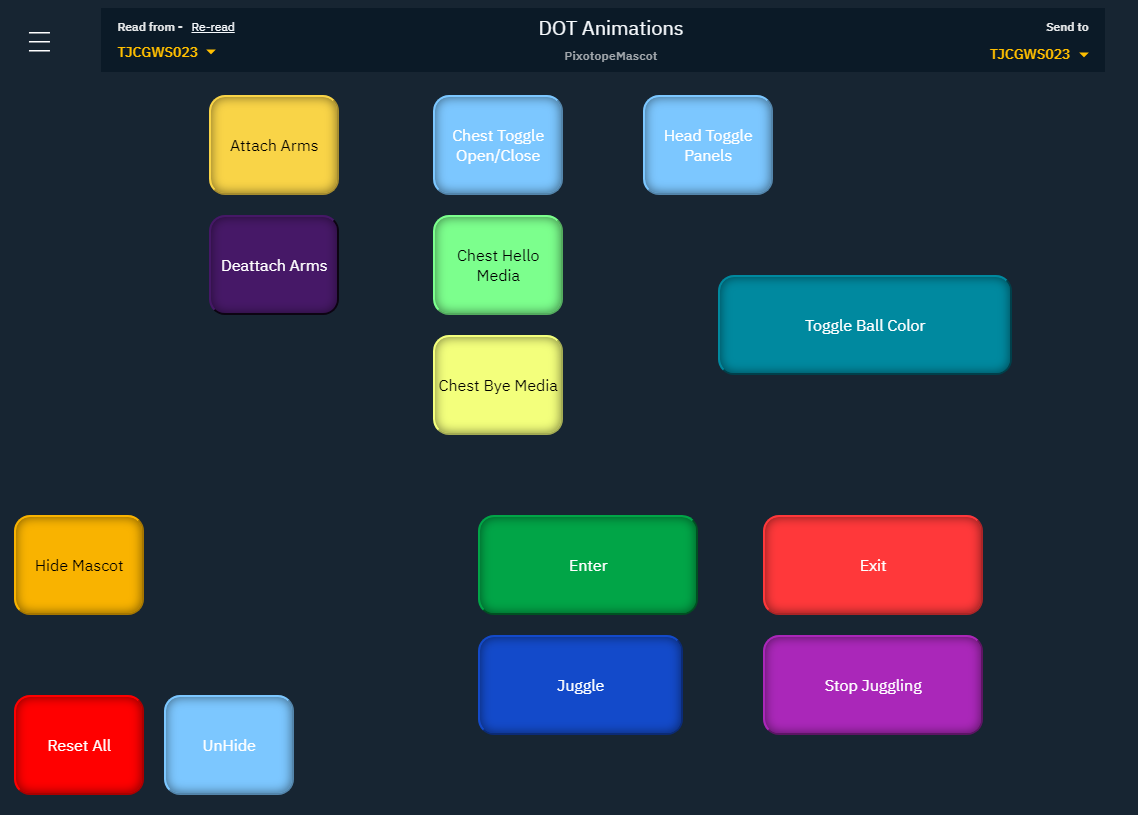

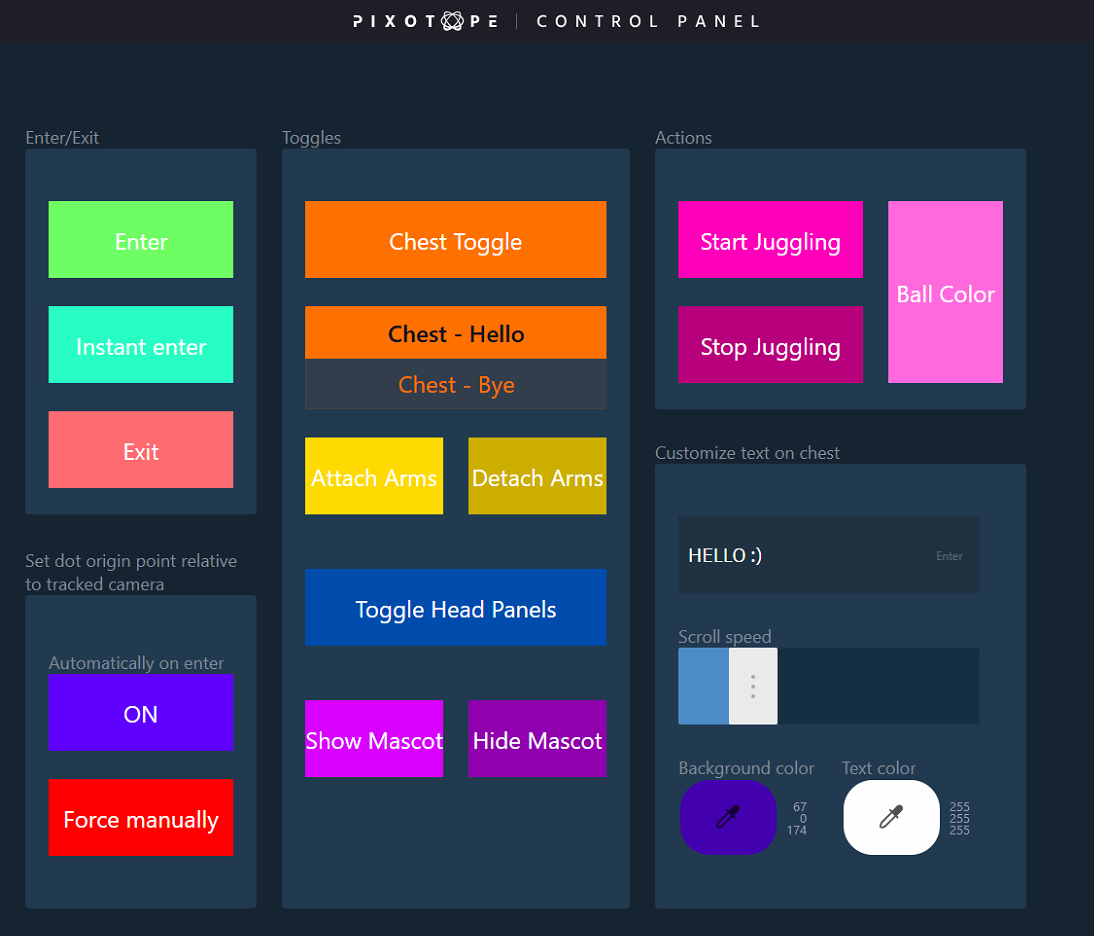

PixotopeMascot controls

“Enter” will bring Dot center stage by walking him in and now start playing

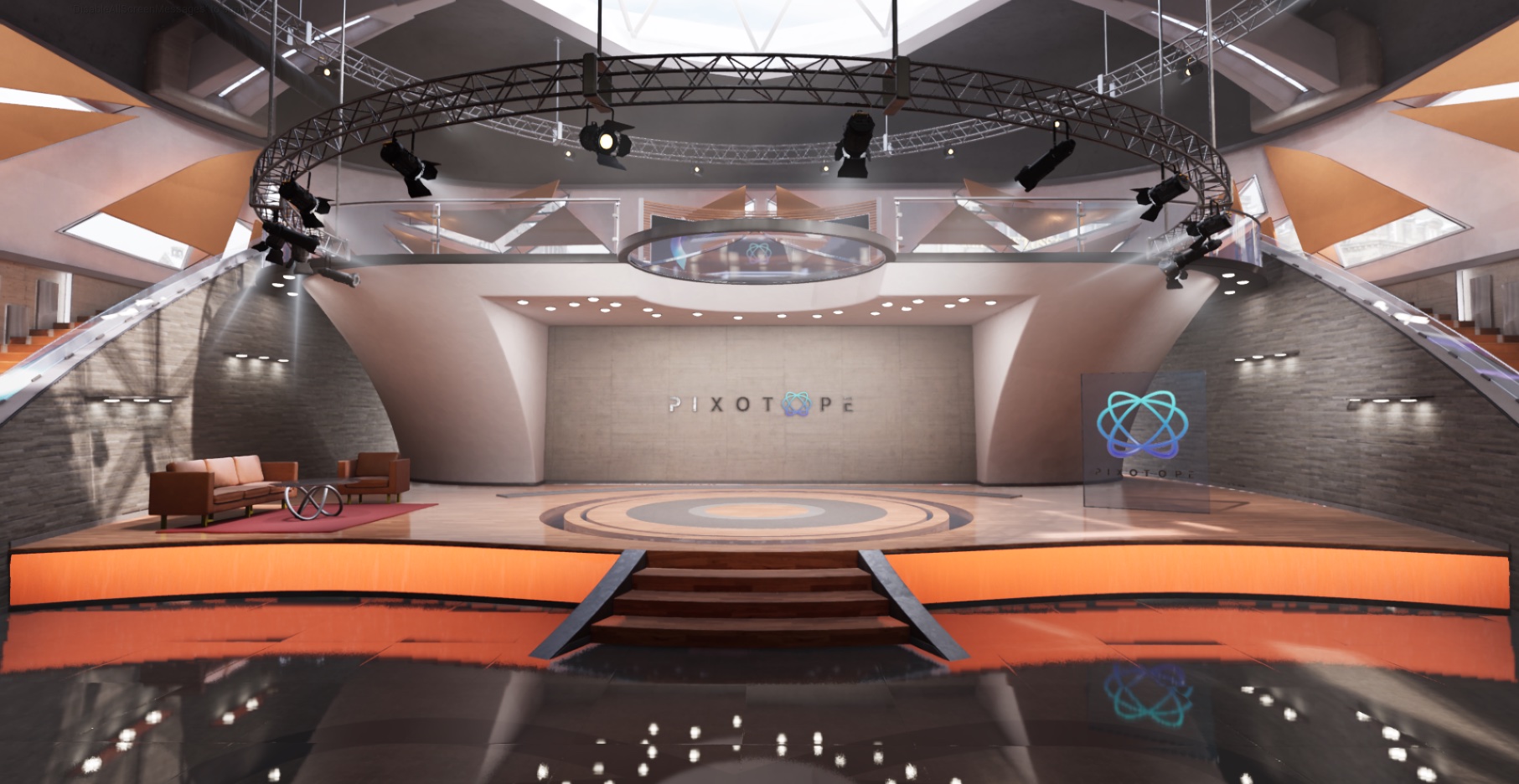

PixotopeStudio

A virtual studio set environment. This project shows how to run a virtual studio, with a control panel to show color changes, virtual monitors with live inputs and virtual camera moves. This studio utilizes baked illumination for more rapid rendering as an example.

Level contents

Fully functional Virtual Interior Studio
Virtual camera moves and animated elevator for talent, with the option to raise and lower monitors
Ready-made control panel

Technical details

The camera moves are set by a rail and are adjustable in the Editor
The tracked camera is attached to the pillar socket in BP_PillarElevationAnim and will raise with the elevator
Monitors waiting to receive Media Input

Triangle count: 1,530,998
Texture resolution: 4,096

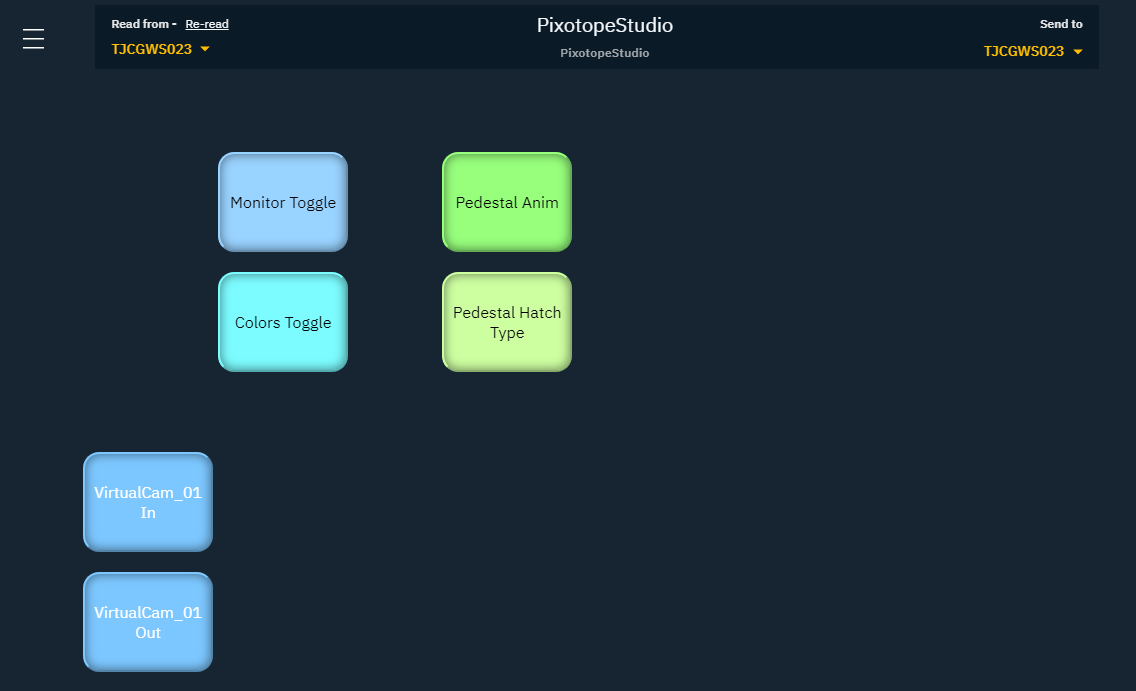

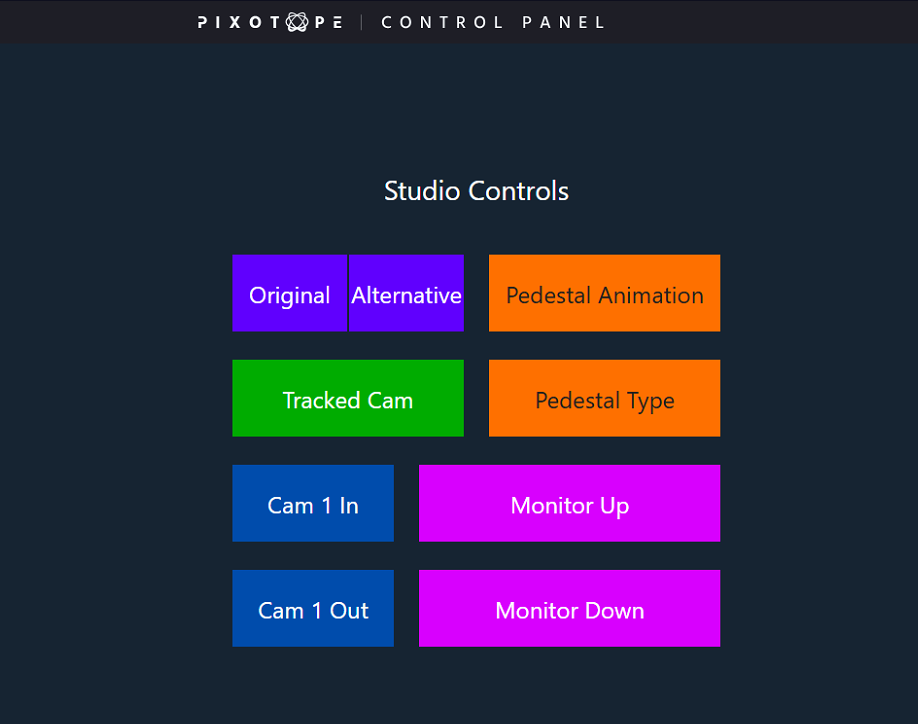

PixotopeStudio controls

A few triggers for various actions.

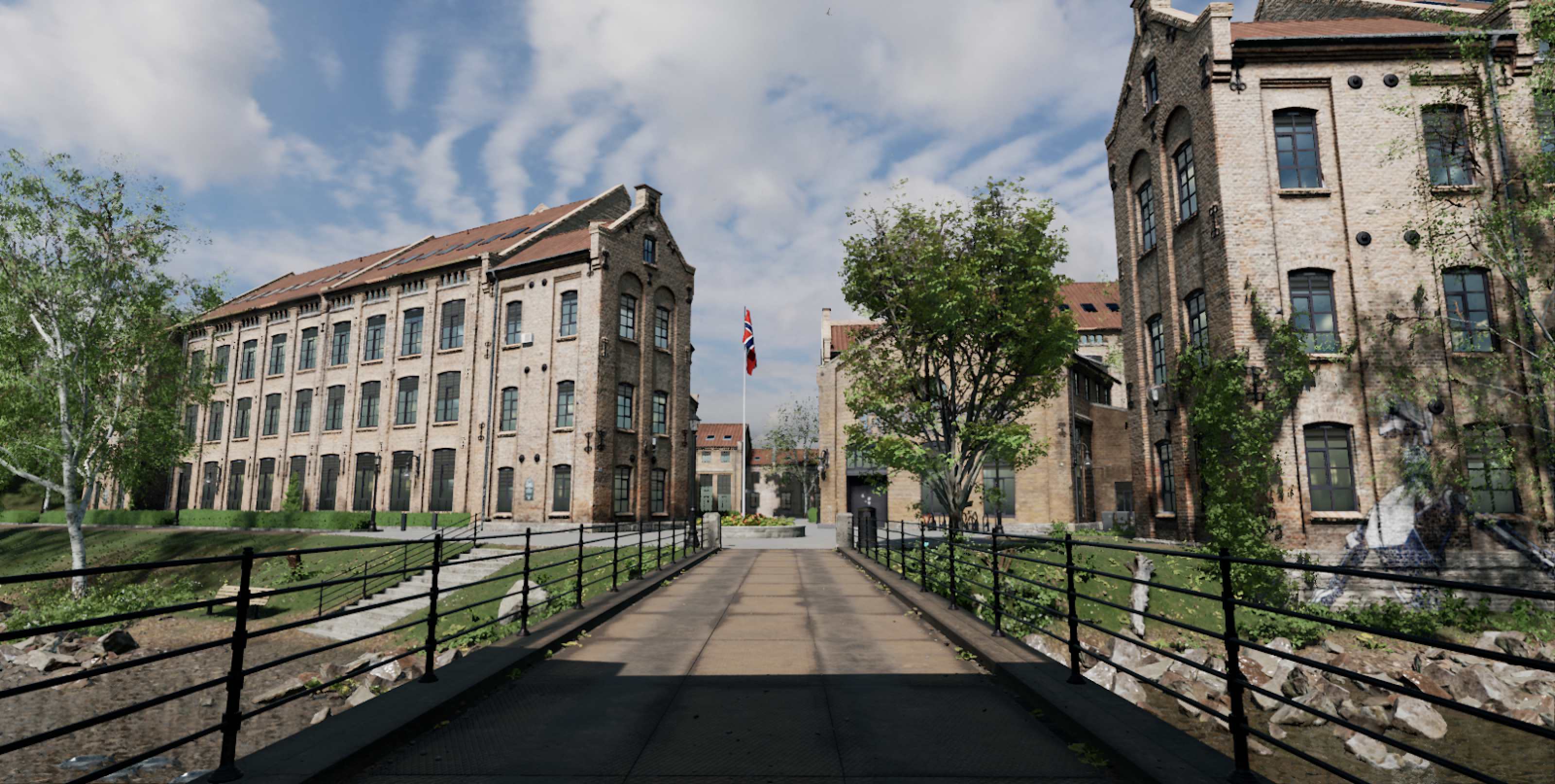

PixotopeExterior

An advanced exterior scene based on photogrammetry techniques and advanced material setups. This also comes with controls that will change weather and seasons.

This exterior uses fully dynamic lighting.

Level contents

Functioning exterior virtual environment with weather effects
3 weather states
Ready-made control panel

Technical details

Rain and snow effect using cascade particle systems
Weather states
Sunny with clouds
Rain with fog
Snow with frost

Triangle count: 220,046,958
Texture resolution: 4,096 and 8,192

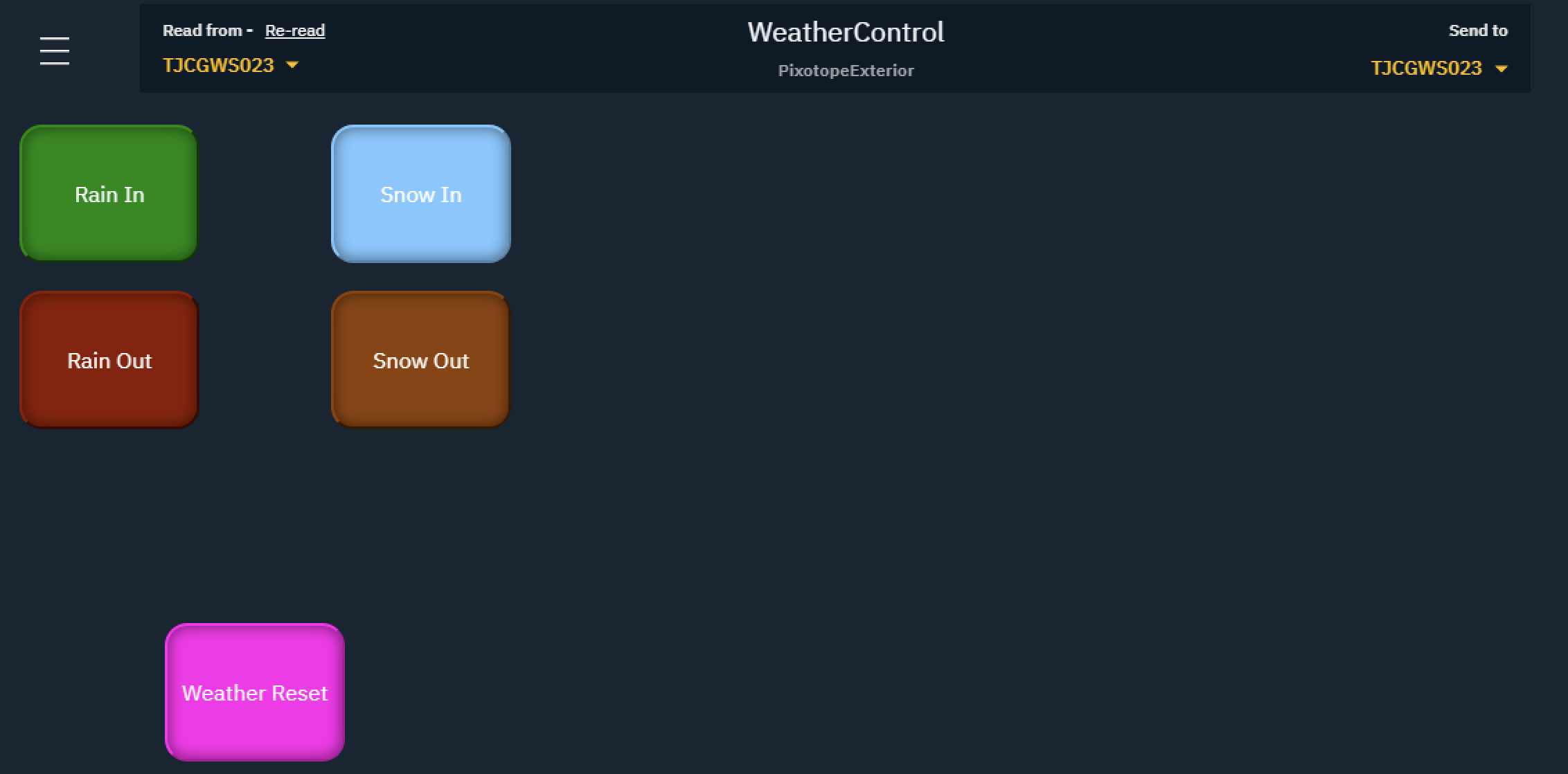

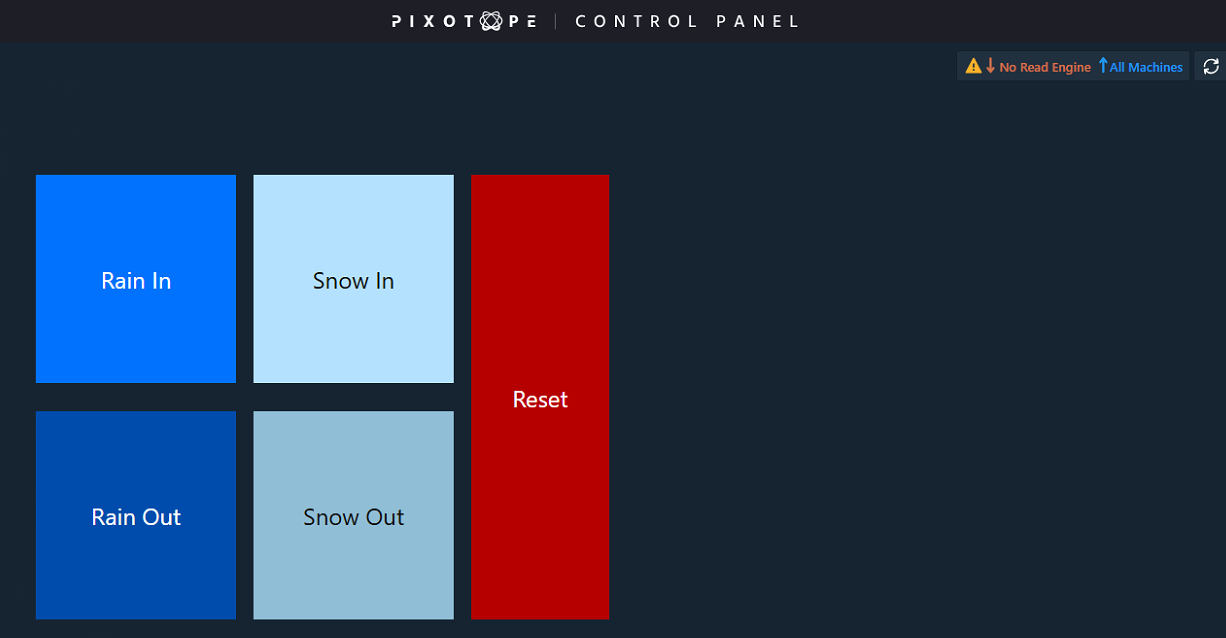

PixotopeExterior controls

A few ways to change the weather and mood. Try making your own!

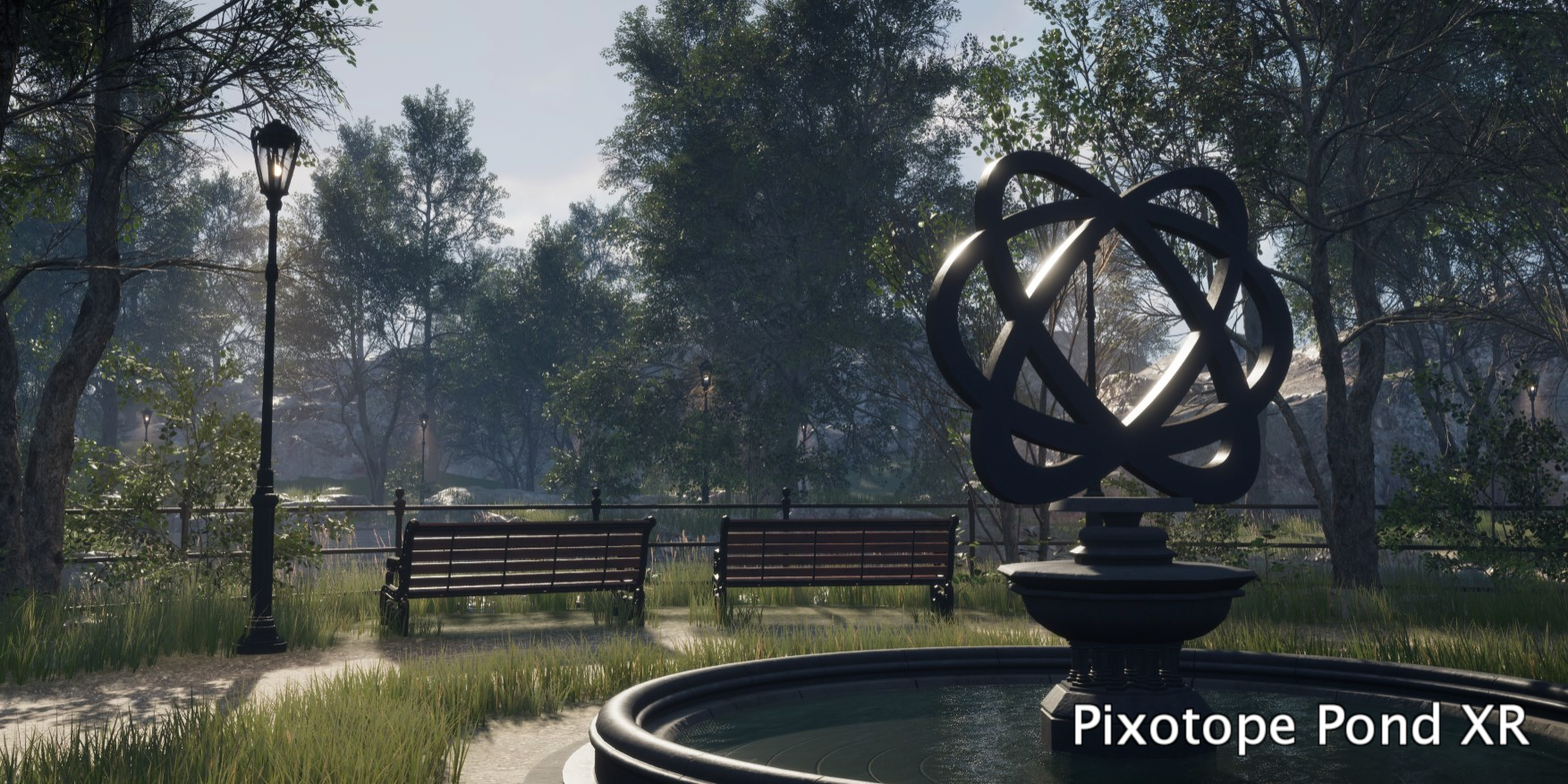

PixotopePond

This scene contains:

Exterior XR/AR scene with dynamic day/night lighting
XR/AR alignment calibration grid
Color chart for color matching calibration

PixotopeLivingPhoto

Description

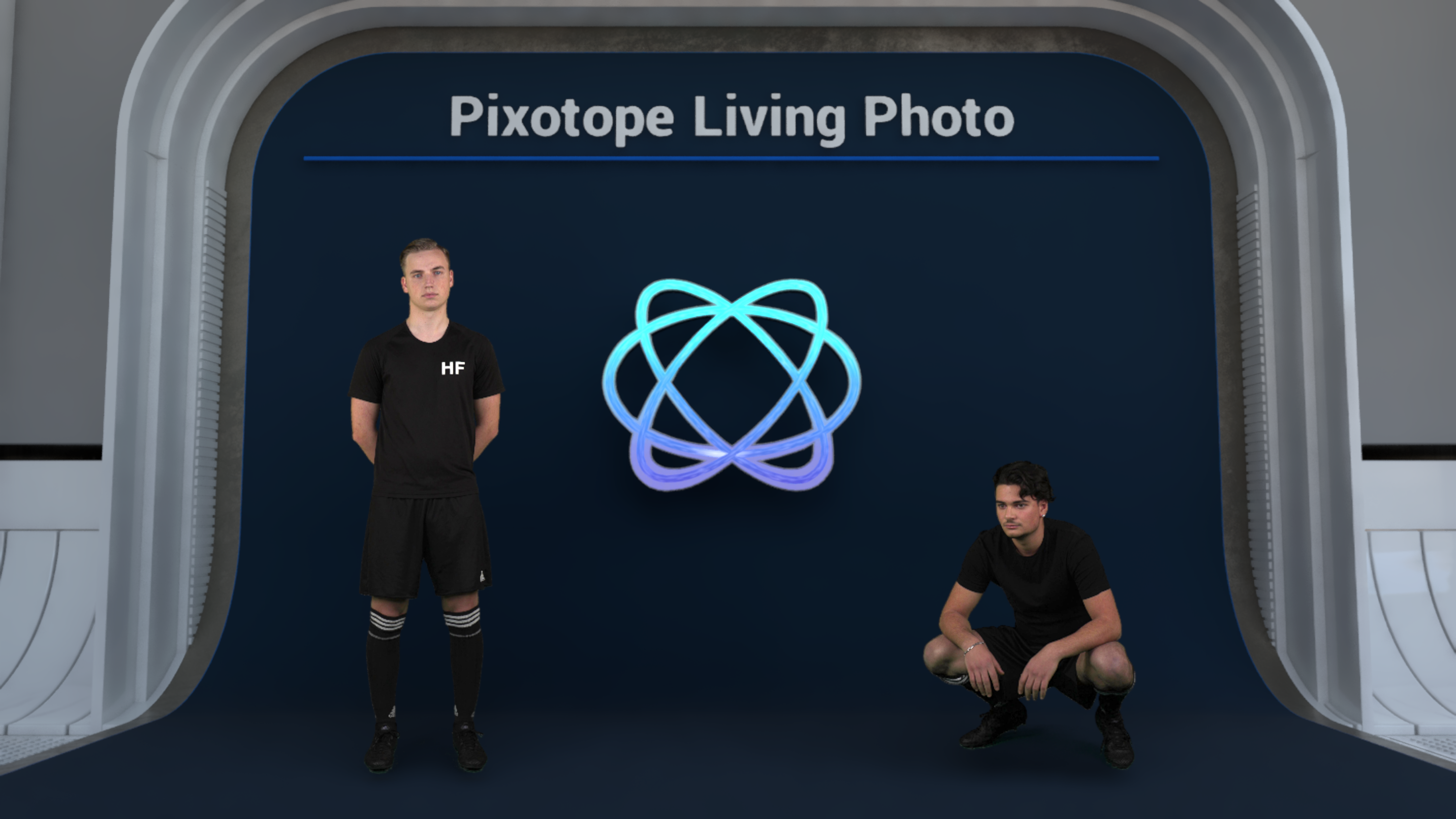

Fully functional showcase scene for Pixotope Living Photo
Includes imported Light Field files with interactive settings, demonstrating the realism and versatility of Living Photo technology

Learn more about how to Set up Pixotope Living Photo

Technical Details

Light Field files are imported and displayed within the scene, you just need to link Light Field file path
Scene allows for interactive camera movement to demonstrate parallax effects
Configurable parameters for Index Offset, Unjittered Projection, Pitch Sensitivity, and more

PixotopeDMX

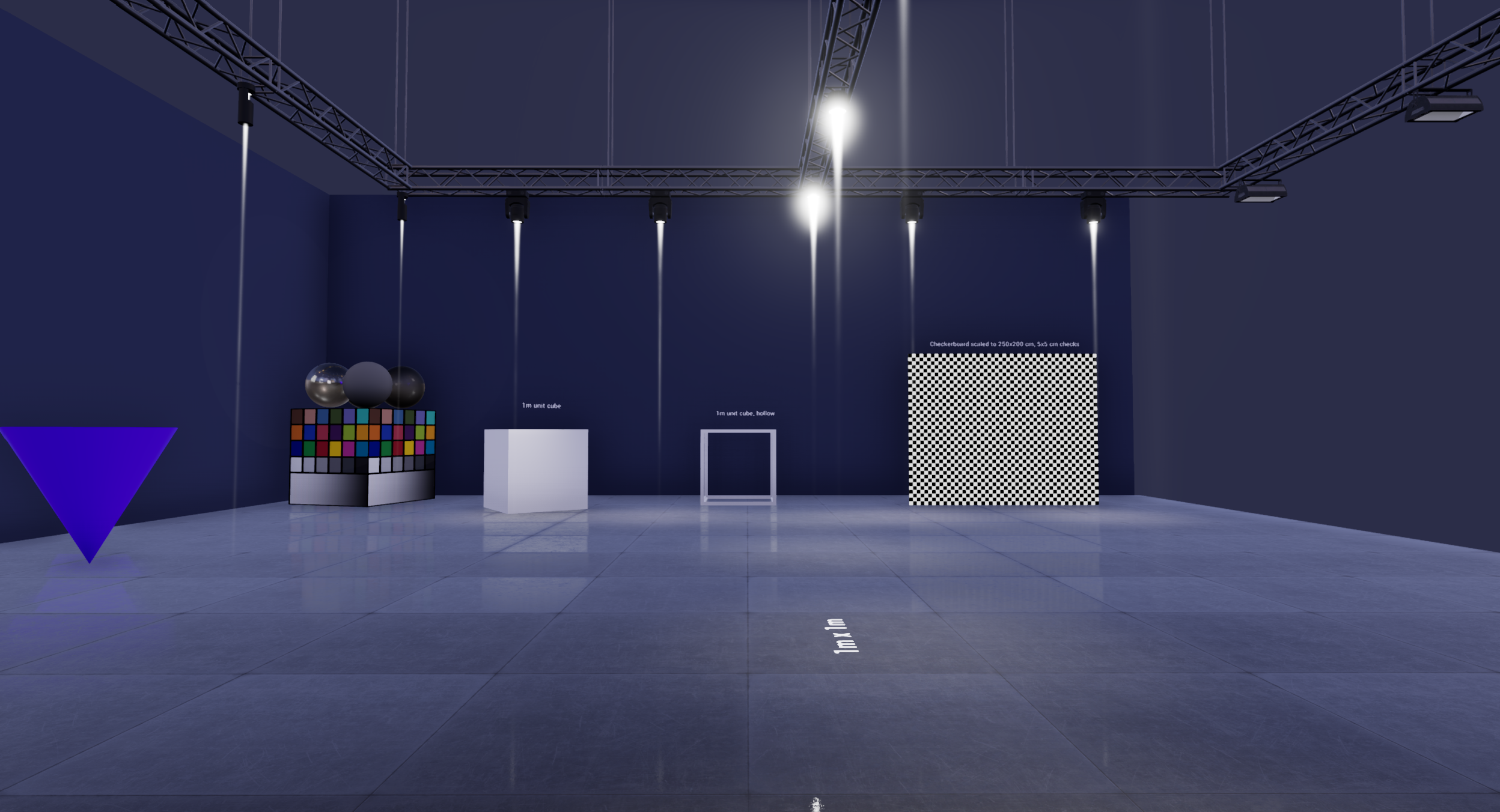

This example level contains 4x4 different types of light fixtures, all mapped, working, and patched to DMX universes. Blur the line between real and virtual worlds!

Learn more about how to Set up DMX lights

Level contents

Send and receive to any universe
4 moving head fixtures
4 static fixtures
4 moving mirror fixtures
4 strobe fixtures

Technical details

Support for DMX Art-Net and SACN

Texture resolution: 4,096

PixotopeBodyPoseEstimation

Description

VS project using the new BodyPoseEstimation feature
A variety of different dynamic assets to play around with

Technical Details

Greenscreen video file for use without camera input

Texture resolution: 4096
