Configure using an external keyer

This is how you configure the input routing if you are using an external keyer.

If using the internal keyer checkout Use the video keyer

Setup external keyer inputs

  1. Add a camera system - Learn more about how to Configure routing

  2. Set the Channel to "Fill"

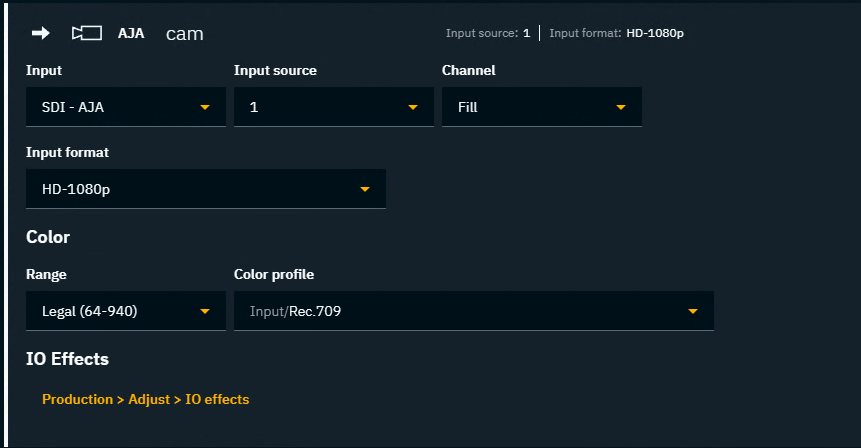

    Screenshot 2024-10-09 at 15.48.41.png

  3. Add a media input - this will be your Key input

  4. Set the Channel to "Key"

  5. Set the Corresponding fill to the above camera system

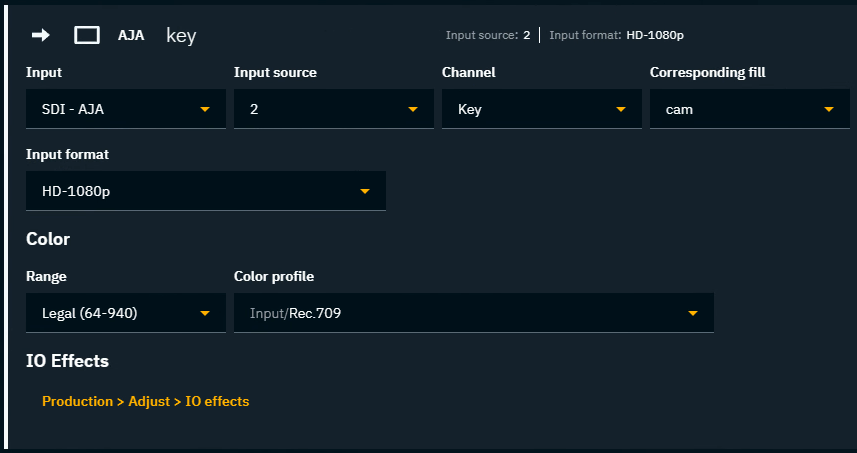

    Screenshot 2024-10-09 at 15.48.54.png
