Control panel - Widget types

Button (Trigger)

Sends predefined variables and/or event triggers when clicked. You can use it to

Trigger Blueprint events
- Virtual camera moves
- Actions/States
Trigger video keyer presets
Set
- Actor transform
- Actor parameters

Events	Actions	Default source
on Click	Perform click	-

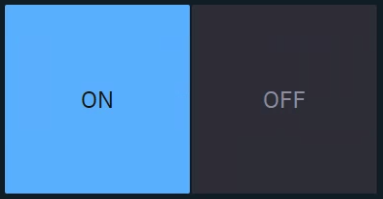

Button (Toggle)

Sends predefined values and/or event triggers when clicked, while showing the current state.

You can use it

as a 2-state trigger
for on/off actions
- Light switches
- A to B transitions
- Visibility toggles
- Any boolean

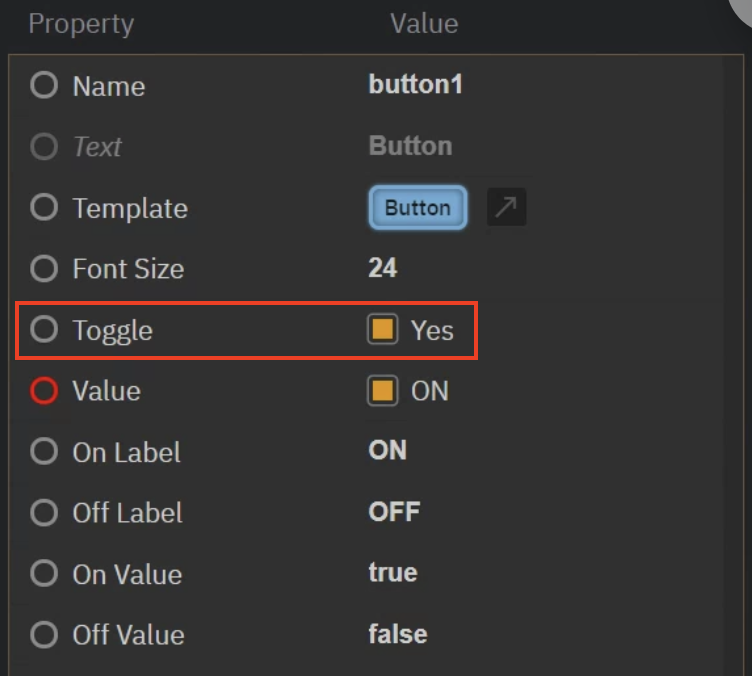

Same as button, but with Toggle enabled.

Events	Actions	Default source
on Click on ON click on OFF click	Perform click Perform ON click Perform OFF click	`button.Value`

Tabs

Sends predefined values and/or event triggers when clicked, while showing the current state. The list of options can be manually set up or imported from a List property of an engine object.

Learn more about how to Populate Options for Tab and Dropdown widget

You can use it to

switch between predefined values (Number, String)
- Infographics
- Name fields
- Title bars

Events	Actions	Default source
on Click on Tab 1 click on Tab 2 click …	Perform click Perform Tab 1 click Perform Tab 2 click …	`tabs.Selected`

Switches between predefined values and/or event triggers when clicked, while showing the active option.

Use it the same way as the Tab widget.

Events	Actions	Default source
on Change	Perform change	`dropdown.Selected`

Slider

Sends a Number (float or integer) between a min and a max value.

You can use it to

control virtual lights
control physical lights
- via DMX
control X/Y/Z dimensions of transforms
control color channels
control any states you want to fade between
control any number value you want to have interactive control over

Events	Actions	Default source
on Change	Perform change	`slider.Value`

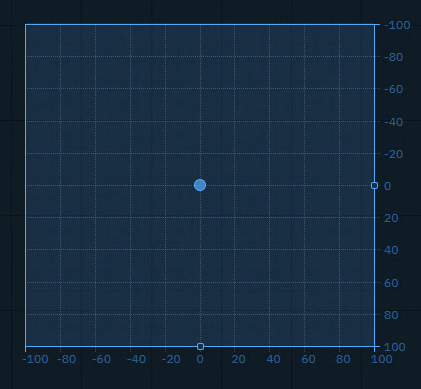

2D Pad

Sends an x and y Number (float or integer) between a min and a max value, allowing to adjust the snap and grid size.

You can use it to

control any 2 number values you want to have interactive control over

Events	Actions	Default source
on Change	Perform change	`TwoDPad.Value`

Number

Sends a Number (float or integer) when field is changed, either by

number entry closing with Enter
clicking the arrows
scrolling

You can use it to

update numeric values
- Scoreboards
- Statistics
- Data
trigger Blueprint events that take a numeric parameter

Events

Actions

Default source

on Change

Perform change
Trigger Focus

number.Value

Text

Sends a String when the Enter key is pressed. The text can be typed or pasted in.

You can use it to

update text and number values
- News tickers
- Infographics
- Name fields
- Title bars
- Scoreboards
trigger Blueprint events that take a text OR numeric parameter

Events	Actions	Default source
on Confirm	Perform change Trigger Focus	`input.Text`

Text (multiline)

Sends a String (including line breaks) when

"Confirm" button is clicked
Ctrl+Enter is pressed

Text can be typed or pasted.

Use it the same way as the Text widget.

Events	Actions	Default source
on Confirm	Perform change Trigger Focus	`text.Text`

Color picker

Opens a color picker and while making changes it sends updates

if confirmed, the color is kept
if cancelled, the original color is sent again

You can use it to

control light colors

Events	Actions	Default source
on Confirm	Perform change	`colorPick.Color`

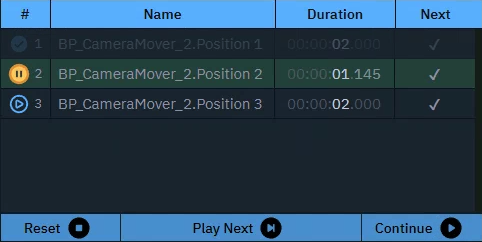

Playlist

Executes actions in a sequence triggered manually or based on time.

You can use it to

control actions in a sequence

Events

Actions

Default source

-

Reset
Play next
Pause/Continue
Start from index
Pause at index
Wait

Get

Current Action Index
Current Action Name
Current Action Duration
Current Action Progress
Current Action Timer
Up Next Index
Up Next Name
Overall Time Elapsed
Get Count

-

Timer

Triggers the actions with a constant interval.

You can use it to

set up triggers with a constant interval

Events	Actions	Default source
on Timer	Perform Interval	-

Listener

Listens to changes of the Source property.

You can use it to

listen to the change of any property

Events	Actions	Default source
on Change	Perform Listener	-

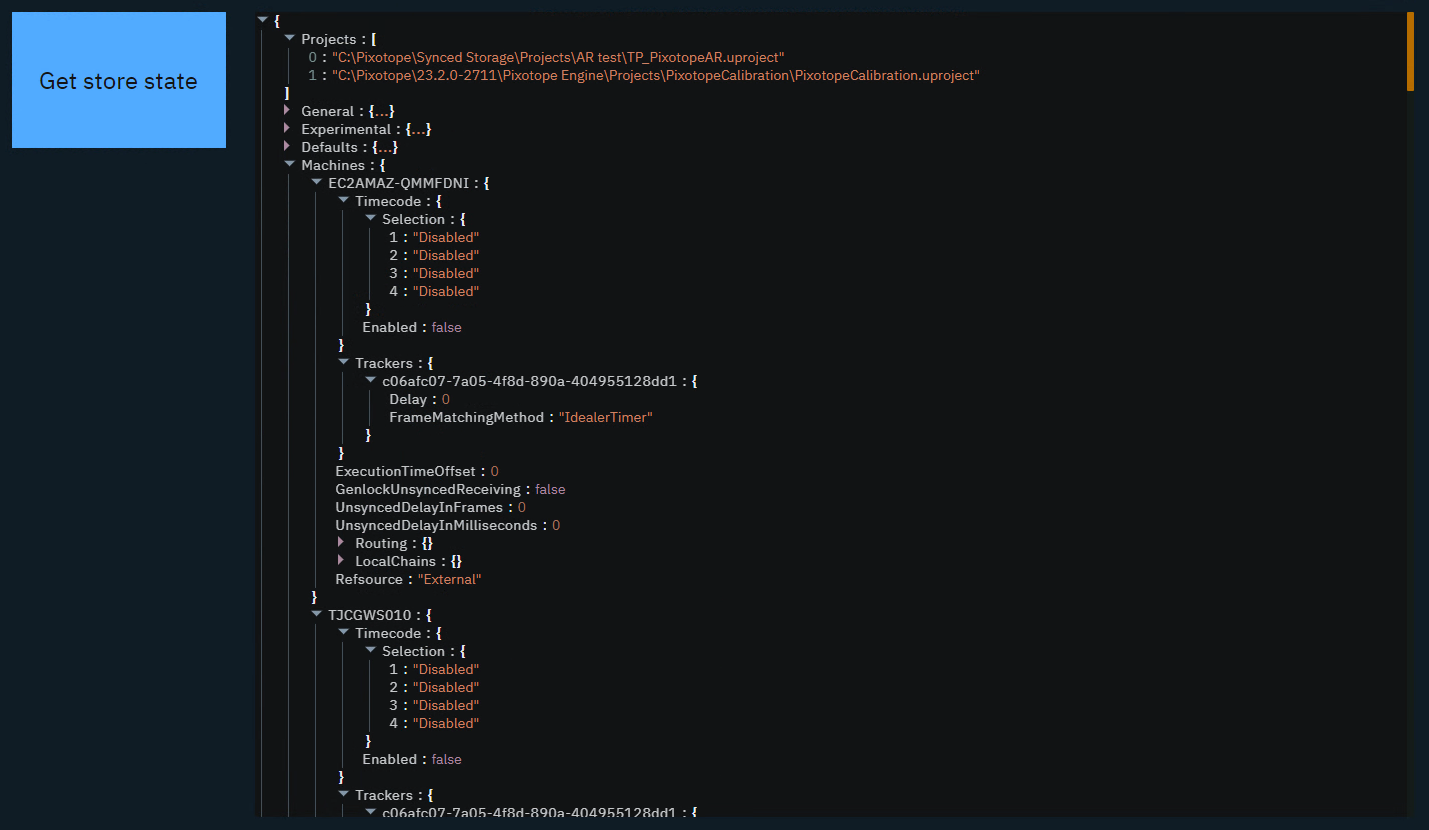

Label

Shows a text or JSON view.

Passive: can be controlled by an action on another widget
Active: can actively listen to changes

You can use it to

have an independent label text with optional background color
display values as text or JSON
organize your control panel
select and copy values

Events	Actions	Default source
If active: on Change	Perform Listener	`label.Text`


Passive: image source can be controlled by an action on another widget
Active: can actively listen to changes

Double click the image to bring up the resources library
- Upload or choose an existing image

Resources are stored in [Project folder]/ControlPanel/[Control panel folder]

Learn more about how to send images to the engine

You can use it to

display images
- from url
- from local file system
send image URLs to the URLImageActor
organize your control panel

Events	Actions	Default source
If active: on Change	Perform Listener	`image.Src`

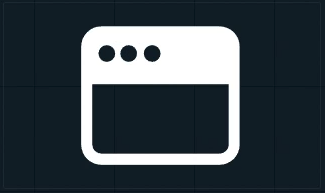

Frame

Embed another website into the control panel.

You can use it to

load other control panels
load help center articles
load external graphics

Events	Actions	Default source
-	Perform Listener	-

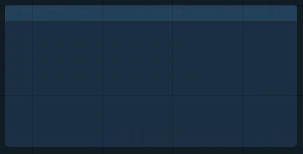

Group

Visually group widgets together.

You can use it

to organize your control panel
as a modal dialog

Click the header to move all widgets within the group
Double click the header to select all widgets and scale the group

Events

Actions

Default source

-

If modal

Trigger Show Modal
Trigger Close Modal

-

System actions

Learn more about System actions
